Retrofit Rear Blind Spot Assist Radar Sensors (Code: VS2RADSON) - SM54.71-S-0112A

Model 447.### #3 as of 937872 up to 989267

with code JA7 (Blind Spot Monitoring)

Model 447.### #4 as of 100006 up to 120487

with code JA7 (Blind Spot Monitoring)

Courtesy of MERCEDES-BENZ USA

Shown on model 447.813 1#

	Check
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on SCN coding of control units		AH54.21-P-0004-01X
	Notes on programming control units		AH54.21-P-0001-03Z
1	Check if vehicle is affected by measure.	Affected vehicles: Retrofit rear Blind Spot Assist radar sensors (code: VS2RADSON) For authorized Mercedes-Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab is decisive. There is no need to also check the affected vehicles in the workshop information system (WIS) or vehicle list.	SM54.71-S-0112-01AAA
	Update Vehicle Documentation (VeDoc)
2	Remove special equipment code IX8 (Special control system for Blind Spot Assist) or code WS0 (Plant control code) from VeDoc.	If codes are present in VeDoc. An administrative employee must perform all processing in the VeDoc system.  Codes can only be removed from VeDoc by a user with write permissions. If no one with change authorization is available, contact the "Wholesale" level first, e.g. "Market Performance Center" (MPC), "General Distributor" (GV), "Logistics Center" (LC), "Regional Logistics Center" (RLC) or "European Logistics Center" (ELC). If, for organizational reasons, the "Wholesale" level is unable to provide the assistance mentioned here, you may then, as an alternative, contact the VeDoc Hotline per ticket in the XENTRY Support (XSF) system. It is recommended that a ticket is generated in "XSF" from inside Vehicle Documentation (VeDoc) to rule out any routing errors. In this instance, the ticket must be forwarded in "XSF" from the responsible "Wholesale" level to the VeDoc Hotline.
3	Enter special equipment code JA7 (Blind Spot Assist) in VeDoc.	If code is not present in VeDoc. An administrative employee must perform all processing in the VeDoc system. Codes can only be added to VeDoc by a user with write permissions. If no one with change authorization is available, contact the "Wholesale" level first, e.g. "Market Performance Center" (MPC), "General Distributor" (GV), "Logistics Center" (LC), "Regional Logistics Center" (RLC) or "European Logistics Center" (ELC). If, for organizational reasons, the "Wholesale" level is unable to provide the assistance mentioned here, you may then, as an alternative, contact the VeDoc Hotline per ticket in the XENTRY Support (XSF) system. It is recommended that a ticket is generated in "XSF" from inside Vehicle Documentation (VeDoc) to rule out any routing errors. In this instance, the ticket must be forwarded in "XSF" from the responsible "Wholesale" level to the VeDoc Hotline.
4	Enter note in VeDoc.	An administrative employee must perform all processing in the VeDoc system.  Attach note "Blind Spot Assist radar sensors retrofitted as per SM54.71-S-0112A " under field organization texts to design group 54.
	Remove
5	Remove rear bumper.
			AR88.20-S-2200E
	Retrofit
6	Retrofit rear left Blind Spot Assist radar sensor (B161/3) and rear right Blind Spot Assist radar sensor (B161/4) to rear bumper.	Expose strapped-down electric lines for rear left Blind Spot Assist radar sensor (B161/3) and rear right Blind Spot Assist radar sensor (B161/4), and route correctly.	SM54.71-S-0112-02A
	Install
7	Install rear bumper.
			AR88.20-S-2200E
	Installing
8	Install the 12 V charger.
		A sufficient power supply for the on-board electrical system battery must be guaranteed throughout the entire work procedure. Otherwise any undervoltage that occurs may damage the control units. Follow the operating instructions for the 12 V charger. Use the 12 V charger to ensure an adequate voltage (min. 12.5 V) for the on-board electrical system battery.	AR54.10-S-1127E
9	Install vehicle diagnosis system.	If diagnostic system is not yet attached.
		Always make sure that XENTRY Diagnosis is updated to the latest version. The operation steps in XENTRY Diagnosis must be followed precisely at all times. If the diagnostic system is already connected to the vehicle, ↓ continue with operation step 10.	AD00.00-S-2000-04E
	Update SCN coding
10.1	Perform SCN coding in radio (Audio) (N87/2).	Model 447 with code EN6 (Audio 10)
		To do this, select the following menu items: Quick test view → N87/2 - Radio (RD) (code: EN6, EN7) → Adaptations → Control units update → Updating of SCN coding You are then automatically guided through the "Updating of SCN coding  " steps. It is essential to follow the operation steps in the diagnostic system. After successful SCN coding, the following is shown: The procedure was completed successfully.  Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
10.2	Perform SCN coding in radio/radio navigation (N87/15).	Model 447 with code E3C (Audio 30) Model 447 with code EA4 (Audio 40)
		To do this, select the following menu items: Quick test view → N87/15 - Radio/Radio - Navigation (RD) (Code: E3C, EA4) → Adaptations → Control units update → Updating of SCN coding You are then automatically guided through the "Updating of SCN coding  " steps. It is essential to follow the operation steps in the diagnostic system. After successful SCN coding, the following is shown: The procedure was completed successfully.  Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
10.3	Perform SCN coding in head unit (A26/17).	Model 447.8 with code E6H (MBUX multimedia system High) Model 447.8 with code E6M (MBUX multimedia system Mid)
		To do this, select the following menu items: Quick test view → A26/17 - MBUX multimedia system (head unit) (code: E6E, E6M, E6H) → Adaptations → Control units update → Updating of SCN coding You are then automatically guided through the "Updating of SCN coding  " steps. It is essential to follow the operation steps in the diagnostic system. After successful SCN coding, the following is shown: The procedure was completed successfully.  Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
11	Perform SCN coding in left front door control unit (N69/3).
		To do this, select the following menu items: Quick test view → N69/3 - Left front door (DCU-LF) → Adaptations → Control units update → Updating of SCN coding You are then automatically guided through the "Updating of SCN coding  " steps. It is essential to follow the operation steps in the diagnostic system. After successful SCN coding, the following is shown: The procedure was completed successfully.  Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
12	Perform SCN coding in right front door control unit (N69/4).
		To do this, select the following menu items: Quick test view → N69/4 - Right front door (DCU-RF) → Adaptations → Control units update → Updating of SCN coding You are then automatically guided through the "Updating of SCN coding  " steps. It is essential to follow the operation steps in the diagnostic system. After successful SCN coding, the following is shown: The procedure was completed successfully.  Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
13	Perform SCN coding in instrument cluster control unit (KI) (A1/1).
		To do this, select the following menu items: Quick test view → (A1/1) - Instrument cluster (IC) (code: JK5) → Adaptations → Control units update → Updating of SCN coding You are then automatically guided through the "Updating of SCN coding  " steps. It is essential to follow the operation steps in the diagnostic system. After successful SCN coding, the following is shown: The procedure was completed successfully.  Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
14	Perform SCN coding in electronic ignition lock control unit (EZS) (N73).
		To do this, select the following menu items: Quick test view → N73 - Electronic ignition lock (EZS) → Adaptations → Control units update → Updating of SCN coding You are then automatically guided through the "Updating of SCN coding  " steps. It is essential to follow the operation steps in the diagnostic system. After successful SCN coding, the following is shown: The procedure was completed successfully.  Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
15	Perform SCN coding in central gateway (N93/4).	Model 447.8
		To do this, select the following menu items: Quick test view → N93/4 - CAN bus user interface (HMI-GW) → Adaptations → Control units update → Updating of SCN coding You are then automatically guided through the "Updating of SCN coding  " steps. It is essential to follow the operation steps in the diagnostic system. After successful SCN coding, the following is shown: The procedure was completed successfully.  Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
16	Perform SCN coding in PARKTRONIC (PTS) control unit (N62).	Model 447 with code EZ5 (Active Parking Assist with reversing camera) Model 447 with code EZ6 (Parking Package with 360° camera) Model 447 with code EZ7 (Active Parking Assist)
		To do this, select the following menu items: Quick test view → N62 - PARKTRONIC (PTS) (code: EZ8) → Adaptations → Control units update → Updating of SCN coding You are then automatically guided through the "Updating of SCN coding  " steps. It is essential to follow the operation steps in the diagnostic system. After successful SCN coding, the following is shown: The procedure was completed successfully.  Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
	Commissioning of control unit
17	Commission rear left Blind Spot Assist radar sensor (B161/3) using diagnostic system.
		Under the menu item "Control unit adaptations", follow the instructions for "Initial startup". When commissioning the rear left Blind Spot Assist radar sensor control unit (B161/3), the rear right Blind Spot Assist radar sensor control unit (B161/4) is also put into operation automatically.  To do this, select the following menu items: Quick test view → B161/3 - Rear left outer intelligent radar sensor system (IRS-HLA) (code: JA7) → Adaptations → Commissioning → Initial startup of already installed control unit You are automatically guided through the following steps: Updating software release of 'IRS-HLA' control unit Updating SCN coding of 'IRS-HLA' control unit Updating software release of 'IRS-HRA' control unit Updating SCN coding of 'IRS-HRA' control unit It is essential to follow the operation steps in the diagnostic system. After successful commissioning, the display appears as follows: The procedure was completed successfully.	AR54.21-S-0014E
	Remove
18	Remove vehicle diagnosis system from vehicle.
19	Remove the 12 V charger from vehicle.
			AR54.10-S-1127E
	Check
20	Perform function check of Blind Spot Assist.	Switch on the Blind Spot Assist function in the instrument cluster. See owner's manual. If the Blind Spot Assist is switched on, the instrument cluster display shows gray radar waves extending backward next to the vehicle in the assistance graphic. If the ignition is switched on whilst Blind Spot Assist is switched on, the warning lamps in the outside mirrors switch on for approx. 1.5 seconds.
	Clean

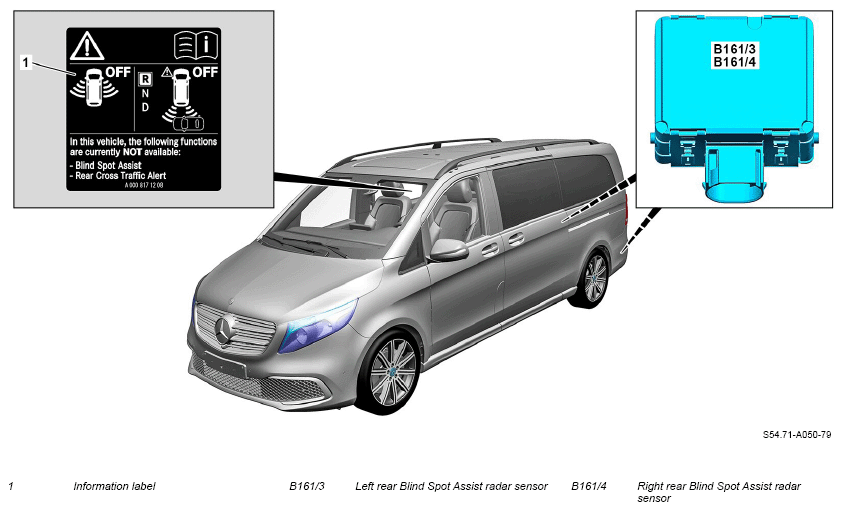

21	Carefully remove information label (1) from windshield on driver's side using a suitable tool.	If installed. Remove any adhesive residue. Commercially available cleaning alcohol can also be used. Cleaner	*BR00.45-Z-1025-04A
