Retrofit Left And Right Rear Blind Spot Assist Radar Sensors On Rear Bumper (Code: VS2RADSON) - SM54.71-S-0112-02A

Model 447.### #3 as of 937872 up to 989267

with code JA7 (Blind Spot Monitoring)

Model 447.### #4 as of 100006 up to 120487

with code JA7 (Blind Spot Monitoring)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side of the vehicle.

Courtesy of MERCEDES-BENZ USA

Shown on model 447.8

1. Clean holder (2) and bumper (3) in cross-hatched area.

   Courtesy of MERCEDES-BENZ USA

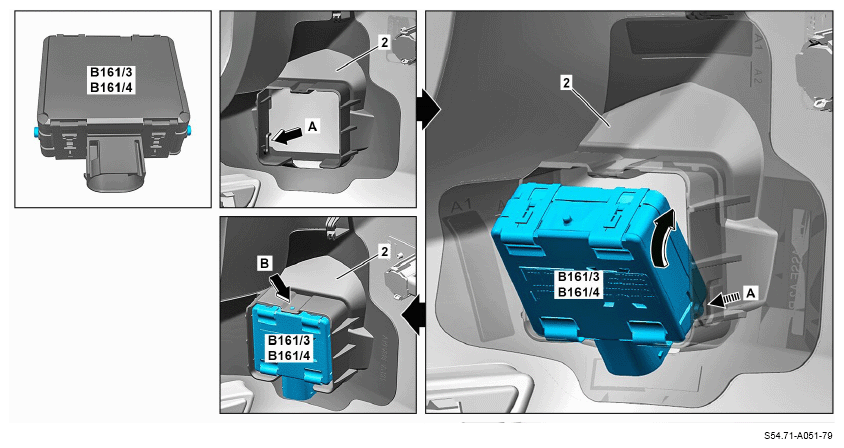

2. Position rear left Blind Spot Assist radar sensor (B161/3) or rear right Blind Spot Assist radar sensor (B161/4) in holder (2) and guide into mounts (arrows A).
3. Swivel rear left Blind Spot Assist radar sensor (B161/3) or rear right Blind Spot Assist radar sensor (B161/4) at top into holder (2).
4. Lock rear left Blind Spot Assist radar sensor (B161/3) or rear right Blind Spot Assist radar sensor (B161/4) at top at holder (2) (arrow B).

   Courtesy of MERCEDES-BENZ USA

   Shown on model 447.8

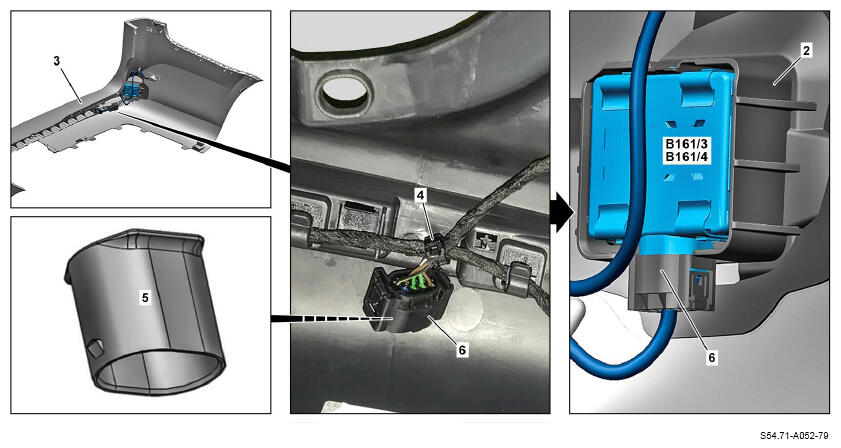

5. Disconnect cable tie (4) and route electrical plug (6) to holder (2).
6. Remove cover cap (5) from electrical plug (6).
7. Connect electrical plug (6) with rear left Blind Spot Assist radar sensor (B161/3) or rear right Blind Spot Assist radar sensor (B161/4).
8. Fasten extended length of electric line of electrical plug (6) to factory-installed electrical wiring harness using a cable tie.
