Adjust Rear Door Side Window - AR67.30-P-0016FR

Model 257, 290

Courtesy of MERCEDES-BENZ USA

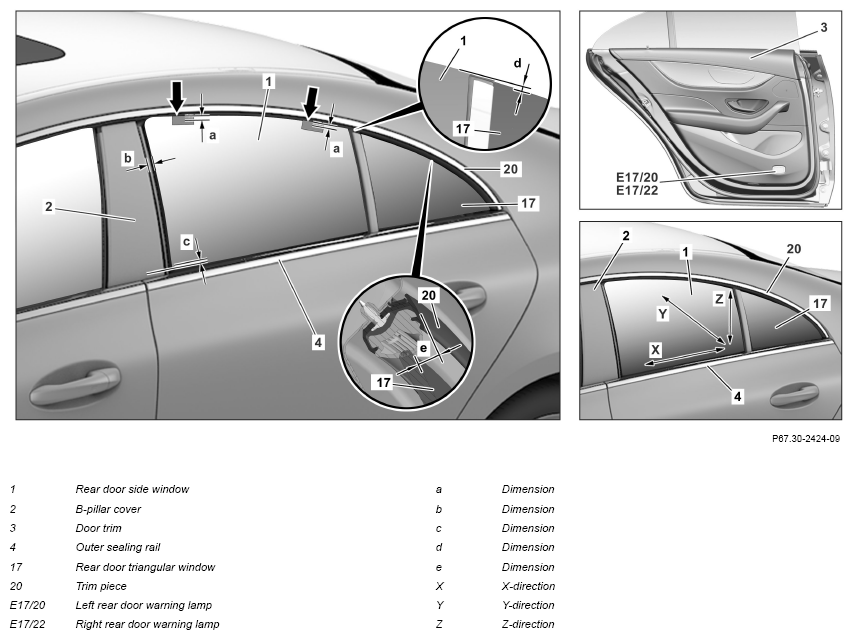

Shown on model 257

	Check
1	Check rear door adjustment.	A correct adjustment of the rear door is the requirement for the of the rear door side window (1).	AR72.12-P-0650FR
2	Affix tapes (arrows), as shown, so that flush with upper edge of rear door side window (1).	Attach tapes (arrows) as far apart as possible.
3	Fully lower rear door side window (1) and then raise again to upper end position.
4	Close rear door.
5	Apply markings to tapes (arrows) at lower edge of roof paneling.	Ensure that roof frame seal is not pressed in during application of markings. An incorrect window guide depth will otherwise be determined.
6	Determine dimension (b).	Determine dimension (b) at two locations that are as far apart as possible. A taper of dimension (b) of max. 1 mm is permitted from top to bottom.
7	Determine dimension (c).	Determine dimension (c) at two points at large distance if possible.
8	Determine dimension (e).
9	Open rear door.
10	Determine dimensions (a).
11	Lock rear door lock using a suitable screwdriver.	Rear door side window (1) is thereby raised to topmost position.
12	Determine dimension (d).
13	Unlock rear door lock by actuating inside door handle.
14	Compare dimensions (a, b, c, d, e) with specified values.	Note deviations between actual and specified values.
		Insertion depth of rear door side window in roof edge	*BE67.30-P-1004-03E
		Distance between rear door side window and B-pillar cover	*BE67.30-P-1005-03E
		Transition between rear door side window and B-pillar cover	*BE67.30-P-1006-03E
		Transition between upper edge of rear door/front door side window and upper edge of triangular window	*BE67.30-P-1007-03E
		Transition between rear door/front door side window and trim element	*BE67.30-P-1008-03E
	Adjust rear door side window (1) in X-direction (X)
15	Remove door trim (3).		AR72.12-P-1011FR
16	Adjust distance between rear door side window (1) and B-pillar cover (2).	Observe previously noted deviations.	AR67.30-P-0016-03FR
		Distance between rear door side window and B-pillar cover	*BE67.30-P-1005-03E
		Bolt, window to window lifter	*BA72.12-P-1006-01R
		Feeler gauge	Fig 1
	Adjust rear door side window (1) in Y-direction (Y)
17	Remove rear door warning lamps (E17/20, E17/22).	Clip remover	Fig 4
18	Adjust transition between rear door side window (1) and B-pillar cover (2).		AR67.30-P-0016-02FR
		Observe previously noted deviations.
		Transition between rear door side window and B-pillar cover	*BE67.30-P-1006-03E
		Socket	Fig 3
		Socket wrench	Fig 2
	Adjust rear door side window (1) in Z-direction (Z)
19	Remove outer sealing rail (4).
20	Adjust window guide depth of rear door side window (1) in roof frame seal.		AR67.30-P-0016-01FR
		Observe previously noted deviations.
		Insertion depth of rear door side window in roof edge	*BE67.30-P-1004-03E
		Distance between rear door side window and B-pillar cover	*BE67.30-P-1005-03E
		Feeler gauge	Fig 1
	Adjust rear door triangular window (17) in Y-direction (Y) and Z-direction (Z)
21	Adjust rear door triangular window (17).	Observe previously noted deviations.	AR67.30-P-0016-04FR
		Transition between upper edge of rear door/front door side window and upper edge of triangular window	*BE67.30-P-1007-03E
		Transition between rear door/front door side window and trim element	*BE67.30-P-1008-03E
		Feeler gauge	Fig 1
		Socket wrench	Fig 5
	Install
22	Install door trim (3).	When adjusting rear door side window (1) in X-direction (X).	AR72.12-P-1011FR
23	Install rear door warning lamps (E17/20, E17/22).	When adjusting rear door side window (1) in Y-direction (Y).
24	Install outer sealing rail (4).	When adjusting rear door side window (1) in Z-direction (Z).
25	Remove tapes (arrows).
26	Normalize rear door side window (1).

SIDE WINDOW(S)

Number	Designation			Model 257.3	Model 290
BE67.30-P-1004-03E	Insertion depth of rear door side window in roof edge	Dimension "a"	mm	5 (±1)	5 (±1)

SIDE WINDOW(S)

Number	Designation			Model 257.3	Model 290
BE67.30-P-1005-03E	Distance between rear door side window and B-pillar cover	Dimension "b"	mm	10 (±1)	10 (±1)

SIDE WINDOW(S)

Number	Designation			Model 257.3	Model 290
BE67.30-P-1006-03E	Transition between rear door side window and B-pillar cover	Dimension "c"	mm	0 (+0, 5/-1)	0 (+0, 5/-1)

SIDE WINDOW(S)

Number	Designation			Model 257.3	Model 290
BE67.30-P-1007-03E	Transition between upper edge of rear door/front door side window and upper edge of triangular window	Dimension "D"	mm	0 (-1)	0 (-1)

SIDE WINDOW(S)

Number	Designation			Model 257.3	Model 290
BE67.30-P-1008-03E	Transition between rear door/front door side window and trim element	Dimension "E"	mm	8 (±1)	8 (±1)

REAR DOOR

Number	Designation		Model 257	Model 290
BA72.12-P-1006-01R	Bolt, window to window lifter	Nm	9	9

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Socket Wrench (209 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket (209 589 00 09 03)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Socket Wrench (219 589 00 09 00)

Courtesy of MERCEDES-BENZ USA
