Adjust Rear Door Triangular Window Height - AR67.30-P-0016-04FR

Model 257, 290

SIDE WINDOW(S)

Number	Designation			Model 257.3	Model 290
BE67.30-P-1007-03E	Transition between upper edge of rear door/front door side window and upper edge of triangular window	Dimension "D"	mm	0 (-1)	0 (-1)

SIDE WINDOW(S)

Number	Designation			Model 257.3	Model 290
BE67.30-P-1008-03E	Transition between rear door/front door side window and trim element	Dimension "E"	mm	8 (±1)	8 (±1)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Socket Wrench (219 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

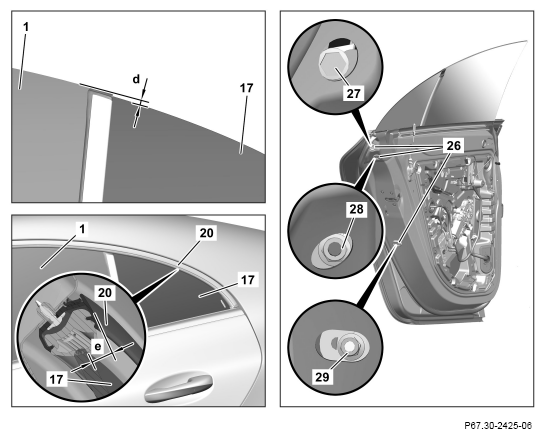

Adjust rear door triangular window (17) in the z-direction, shown on model 257

Remove covers (26).
Loosen screw (27).
Use a long TORX screwdriver, T30.
Loosen nut (28).
Release nut (29) with the socket wrench.
Pull up rear door triangular window (17) and adjust dimension (d) to the rear door side window (1) with the feeler gauge.
Hold rear door triangular window (17) in this position and tighten screw (27).
Helper required.

Use a long TORX screwdriver, T30.

Courtesy of MERCEDES-BENZ USA

Adjust rear door triangular window (17) in the y-direction, shown on model 257
Close rear door.
Open rear door side window (1).
Move rear door triangular window (17) in Y-direction and adjust dimension (e) to trim element (20).
Hold rear door triangular window (17) in this position and tighten nut (28).
Helper required.
Tighten nut (29) with the socket wrench.
Open rear door.
Check dimension (d) again.
If there is a problem,

↓

repeat adjustment procedure in the z-direction.
Close rear door.
Check dimension (e) again.
If there is a problem,

↓

repeat adjustment procedure in the y-direction.
Install covers (26).
