Remove/Install Rear Door Liner - AR72.12-P-1011FR
Model 257, 290
Shown on removed rear door on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Completely open rear door. | ||
| 2 | Completely open side window. | ||
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 4 | Remove screw/bolt (2). | ||

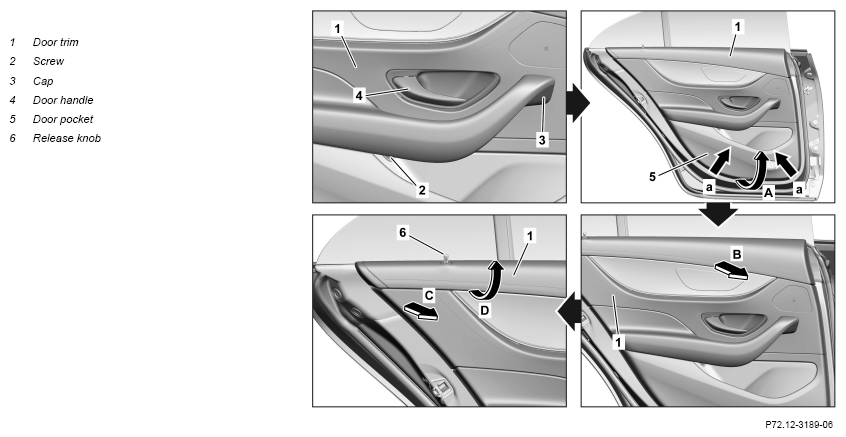

| 5 | Remove cover (3) and remove screw located underneath. | Fig 1 | |
| 6 | Grasp door stowage compartment (5) in outermost area at front and rear (arrows a) and detach door trim (1) from rear door via a sudden pull. | Detach door trim (1) by hand. Door trim (1) can be damaged if a tool is used. |
|
Helper required. |
|||
| 7 | Unclip remaining retaining clips of door trim (1) up to internal sealing rail (arrow A). | ||
| 8 | Carefully remove door trim (1) from internal sealing rail (arrow B) starting from front up to release knob (6). | ||
| 9 | Detach door trim (1) (arrow D) and carefully remove from rear door in the area of door lock (arrow C). | ||
| 10 | Remove door trim (1) from rear door until electrical connectors and wire of door handle (4) can be accessed. | ||
| 11 | Detach wire of door handle (4) from mount. | ||
| 12 | Disconnect electrical connectors at rear door control unit. | ||
| 13 | Disconnect electrical connector at speaker. | ||
| 14 | Remove door trim (1). | ||
| 15 | Install in the reverse order. |
