Remove/Install Front Fixed Element Of Panoramic Sliding Sunroof - AR77.21-P-0803ME

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2025 Mercedes-Benz Maybach GLS600, 2025 Mercedes-Benz GLS63 AMG, 2024 Mercedes-Benz Maybach GLS600, 2024 Mercedes-Benz GLS63 AMG, and 2023 Mercedes-Benz Maybach GLS600. However, it is still accessible from the selected car via links, so may be relevant.

Model 167.1/9 With Code 413 (Panoramic sliding sunroof/glass roof)

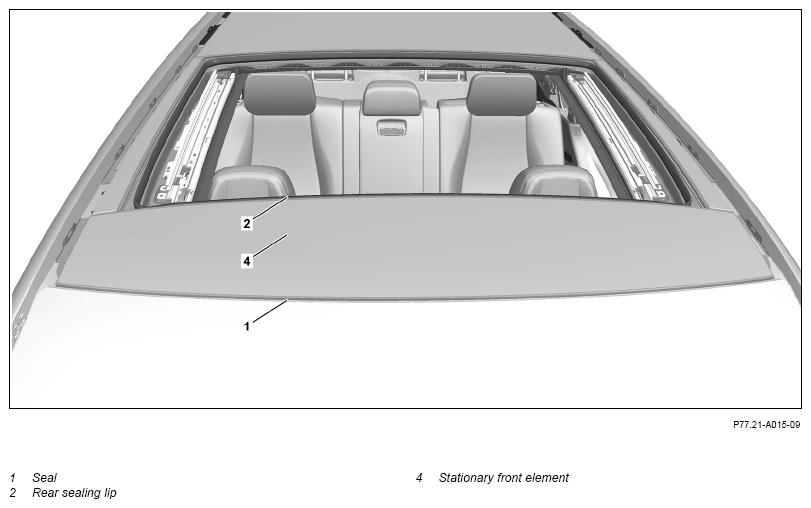

G14792082Courtesy of MERCEDES-BENZ USA

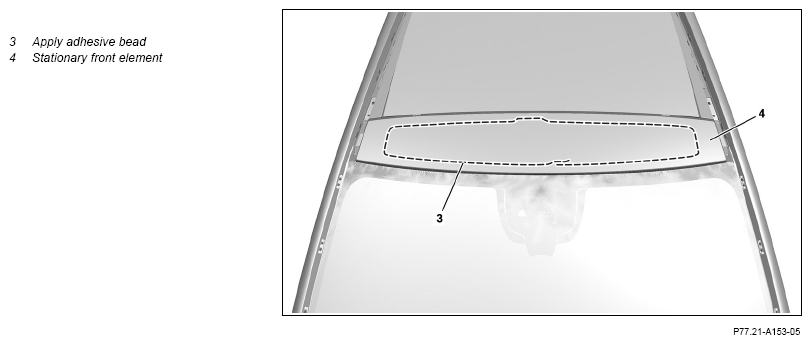

G14792083Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
Notice  Notes on removal/installation of bonded elements of panoramic roof   AH77.21-P-0001-01A
Notice  Notes on removal/installation of windows   AH67.10-P-1000-02RT
REMOVING Remove
1 Completely open panoramic sliding sunroof.
2 Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
3 Remove drip rails.   AR88.80-P-4000ME
4 Remove left and right roof railing.   AR77.40-P-5000ME
5 Remove left and right drip rail.
6 Remove rear sealing lip (2).
7 Fix seal (1) on upper windshield using suitable tape. IMPORTANT In order to prevent damage.
Adhesive fabric tape		 *BR00.45-Z-1062-02A
8 Mask off wind deflector with inner front seal towards inside. IMPORTANT In order to prevent damage.
Adhesive fabric tape		 *BR00.45-Z-1062-02A
9 Mask off adjacent paint surfaces using suitable tape. IMPORTANT To prevent damage during cutting.
Adhesive fabric tape		 *BR00.45-Z-1062-02A
WARNING Risk of injury  due to snapping or warming up of cutting wire and due to splinters when cutting out glued panoramic roofs Wear cut-proof gloves and safety glasses. AS77.21-Z-0002-01A
WARNING Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows Wear protective gloves and safety glasses. AS67.00-Z-0004-01A
10 Cut out adhesive bead (3) of front fixed element (4) and remove.   AR77.21-P-0803-01ME
    IMPORTANT Helper required.
IMPORTANTCommercially available devices/tools
Oscillating saw with round sawing blade
SPECIAL TOOL Set of shields		 Fig 2
INSTALLING Install
Notice  Notes on handling adhesive   AH67.00-P-1000-01A
11 Prepare front fixed element (4) of panoramic sliding sunroof for installation. NOTESOnly use the repair kit approved by the manufacturer from the replacement part system.
Otherwise, adhesion problems will occur. 		 AR77.21-P-0803-02ME
    IMPORTANT Helper required.
Adhesive fabric tape		 *BR00.45-Z-1062-02A
    Distance between top edge of window and front edge of roof *BE67.10-P-1001-02KOA
    SPECIAL TOOL Feeler gauge Fig 1
12 Prepare body flange for front fixed element (4) of panoramic sliding sunroof for installation. NOTESOnly use the repair kit approved by the manufacturer from the replacement part system.
Otherwise, adhesion problems will occur. 		 AR77.21-P-0803-03ME
WARNING Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. AS00.00-Z-0016-01A
13 Apply adhesive material for front fixed element (4) of panoramic sliding sunroof.   WS97.00-P-0001B
REFER TO SPECIAL TOOLS 000 588 00 72 00 Sealing and corrosion protection gun   AR77.21-P-0803-04ME
    NOTES Apply adhesive material as quickly as possible and position front fixed element (4) on body flange and fix it in place.
Otherwise, the strength of the adhesively bonded connection is impaired and the required adhesion of the adhesive material is not guaranteed.
NOTESOnly use the repair kit approved by the manufacturer from the replacement part system.
Otherwise, adhesion problems will occur.
SPECIAL TOOL Adapter		 Fig 3
14 Install front fixed element (4) of panoramic sliding sunroof.   AR77.21-P-0803-05ME
    NOTES Do not move vehicle for at least 3 h after gluing in front fixed element (4).
The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.
IMPORTANT Helper required.
15 Install rear sealing lip (2).
16 Install left and right drip rail.
17 Install left and right roof railing.   AR77.40-P-5000ME
18 Install drip rails.   AR88.80-P-4000ME
19 Remove tape residues.
  Finishing activity
20 Normalize panoramic sliding sunroof using vehicle diagnosis system and perform teach-in run for automatic reversing function.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06ME
WINDSHIELD

Number Designation Model 167 (except 167.3)
BE67.10-P-1001-02KOA Distance between top edge of window and front edge of roof Dimension "A" mm 2, 5 (± 1, 0)
Fig 1: Identifying Feeler Gauge (129 589 03 21 00)
G11129153Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Set Of Shields (222 589 01 31 00)
G11133047Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Adapter (000 589 86 63 00)
G11129044Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1062-02A Adhesive fabric tape A 007 989 28 85
