Unfasten/Fasten Drip Rail In Area Of Windshield - AR88.80-P-4000ME
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2025 Mercedes-Benz Maybach GLS600, 2025 Mercedes-Benz GLS63 AMG, 2024 Mercedes-Benz Maybach GLS600, 2024 Mercedes-Benz GLS63 AMG, and 2023 Mercedes-Benz Maybach GLS600. However, it is still accessible from the selected car via links, so may be relevant.
Model 167
| Remove | |||
| 1 | Open hood. | ||

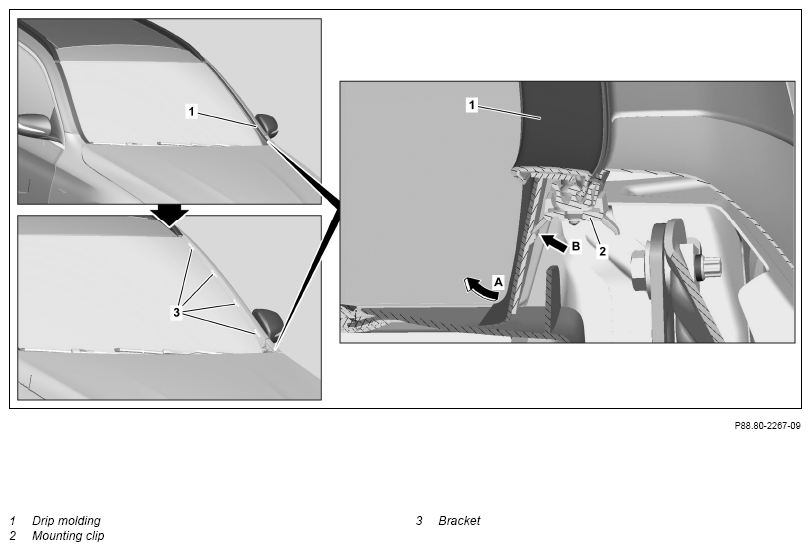

| 2 | Pull lower part of drip rail (1) in direction of vehicle center (arrow A) and release from catch (arrow B) at retaining clip (2). | ||
| 3 | Press drip rail (1) in area of retaining clip (2) in direction of fender and remove upwards from retaining clip (2). | ||
| 4 | Unclip drip rail (1) upwards from brackets (3). | ||
| Install | |||
| 5 | Position drip rail (1) evenly at brackets (3) and retaining clip (2) and clip in. | The drip rail should arrest audibly in the retaining clip (2). |
|
| 6 | Close hood. |
