Remove/Install Transmission With Torque Converter - AR27.10-P-0500XGA

Transmission 725.0 in model 463 with engine 176 as of model year 2019

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove
1	Remove engine air intake ducts upstream of cold air intake air filters.

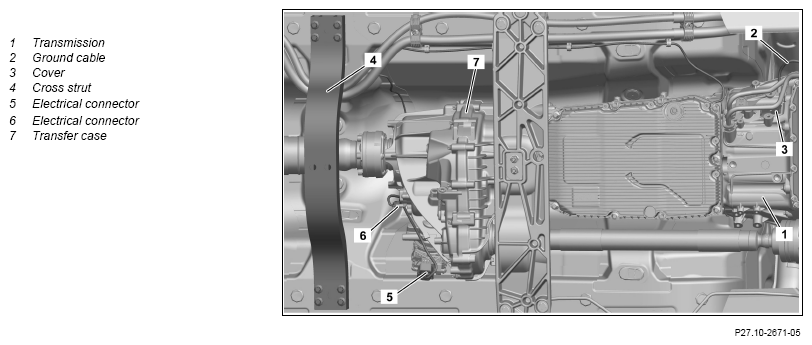

2	Shift the transmission (1) into neutral position.
3	Release parking brake.
4	Disconnect ground line on battery.		AR54.10-P-0003XG
5	Secure vehicle on vehicle lift.		AR00.60-P-1006A
6	Remove lower engine compartment paneling.		AR61.20-P-1105XG
7	Remove oil lines from transmission (1) and oil pan.		AR27.55-P-0600XGA
8	Release catalytic converters from rear muffler and frame.	Left catalytic converter	AR49.20-P-0101XGA
		Right catalytic converter	AR49.20-P-0102XGA
9	Disconnect ground line (2) from transmission (1).
10	Release, disconnect and expose electrical connector of transmission (1).
11	Release and disconnect electrical connector (6) then remove from transfer case (7).		AR28.19-P-1009XGA
12	Release and disconnect electrical connector (5) then remove from transfer case (7).		AR28.19-P-1003XGA
13	Remove propeller shaft.		AR41.10-P-0050XGA
14	Remove propeller shaft from front axle differential.		AR41.10-P-0070XGA
15	Remove starter from transmission (1), place to one side with connected lines and fasten.		AR15.30-P-7100XGA
		Secure starter against falling down. Damage will otherwise occur.
16	Remove mounting console for low-temperature circuit switchover valve.		AR09.41-P-1220-01XGA
17	Remove cover (3).

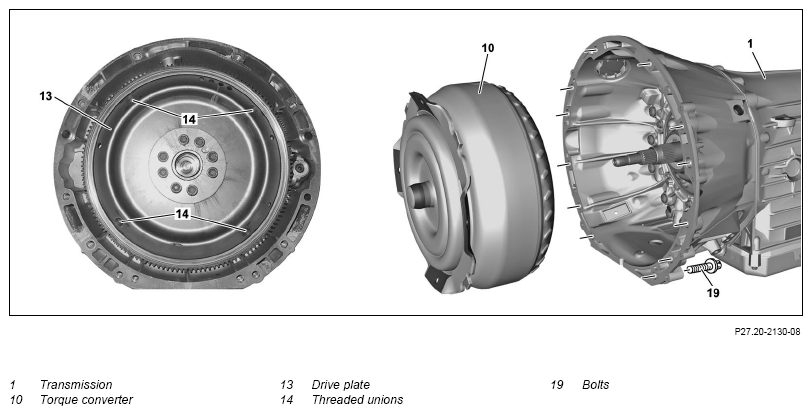

18	Remove torque converter (10) from drive plate (13).		AR27.20-P-0001-01EWM
		Do not use an impact wrench or compressed air tool to remove the bolts. Otherwise, the threaded unions (14) in the drive plate (13) may be damaged.
		Ring wrench	Fig 3
		Long wedge	Fig 1
19	Remove cross strut (4).
20	Remove rear engine carrier.		AR22.10-P-4360XGA
21	Lower transmission (1) far enough until all bolts (19) around the circumference of the transmission (1) are accessible.
22	Support front of engine between front crossmember and engine using wooden wedge.	To ensure the engine is in the correct installation position for the transmission (1).

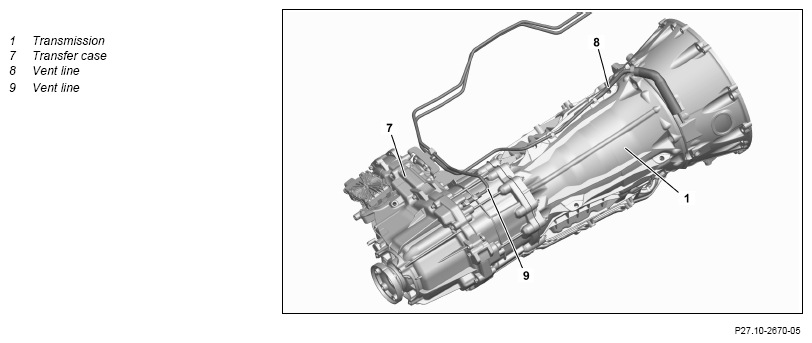

23	Remove vent lines (8, 9) from transfer case (7) and transmission (1).
24	Remove screws (19).	Set of flexible head wrenches	Fig 2
25	Remove transmission (1) with torque converter (10).	Secure the torque converter (10) to prevent it from dropping down. Damage will otherwise occur.
26	Remove torque converter (10).	If necessary.
			AR27.20-P-0050EWM
27	Remove corrosion from crankshaft.		AR03.20-P-1000-01A
		Multi-purpose paste	*BR00.45-Z-1009-06A
		Assembly cleaner	*BR00.45-Z-1028-04A
28	Check threaded unions (14) in drive plate (13).	If the threaded unions (14) are damaged or if they have worked their way loose, ↓ replace drive plate (13).
			AR03.30-P-8003XGA
	Install
29	Insert torque converter (10).	After removing the torque converter (10).
			AR27.20-P-0050EWM
30	Install transmission (1) with torque converter (10).	While doing so, align the bores of the torque converter (10) with the threaded unions (14) in the drive plate (13).
31	Tighten screws (19).	Screw/bolt, transmission to engine	*BA27.10-P-1001-04H
		Set of flexible head wrenches	Fig 2
32	Mount vent lines (8, 9) onto transfer case (7) and transmission.
33	Remove wooden wedge at front between front crossmember and engine.
34	Install rear engine carrier.		AR22.10-P-4360XGA
35	Install cross strut (4).	Screw, crash bracket to underbody	*BA61.10-P-1001-01M
36	Mount torque converter (10) onto drive plate (13).		AR27.20-P-0001-01EWM
		Do not use an impact wrench/driver or compressed air tool to screw in the bolts. Otherwise, the threaded unions (14) in the drive plate (13) may be damaged.
		Bolt, torque converter to drive plate/star-shaped drive plates	*BA27.20-P-1001-01D
		Ring wrench	Fig 3
		Long wedge	Fig 1
37	Install cover (3).
38	Attach low-temperature circuit switchover valve mounting support.		AR09.41-P-1220-01XGA
39	Release mounting of starter and mount starter onto transmission (1).		AR15.30-P-7100XGA
40	Install propeller shaft for front axle differential.		AR41.10-P-0070XGA
41	Install propeller shaft.		AR41.10-P-0050XGA
42	Assemble electrical connector (5), lock it and then mount onto transfer case (7).		AR28.19-P-1003XGA
43	Assemble electrical connector (6), lock it and then mount onto transfer case (7).		AR28.19-P-1009XGA
44	Assemble electrical connector of transmission (1), then lock and fix it into place.
45	Connect ground line (2) to transmission (1).	Bolt, ground line to transmission housing	*BA27.10-P-1024-04H
46	Fasten catalytic converters onto rear muffler and frame.	Left catalytic converter	AR49.20-P-0101XGA
		Right catalytic converter	AR49.20-P-0102XGA
47	Fasten oil lines onto the transmission (1) and clamps of oil lines on oil pan.		AR27.55-P-0600XGA
48	Mount engine air intake ducts onto cold air intake.
49	Connect ground line to battery.		AR54.10-P-0003XG
50	Check and correct transmission oil level.		AR27.00-P-0270EWN
51	Read out and delete fault memory.
			AD00.00-P-2000-04B
52	Perform transmission adaptation with vehicle diagnosis system.	After replacement or repair of transmission (1)
			AD00.00-P-2000-04B
53	Reset data on service life of torque converter lockup clutch with the vehicle diagnosis system.	After replacement or repair of torque converter (10).
			AD00.00-P-2000-04B
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
54	Perform engine test run and check transmission (1) for proper operation and leak tightness.
55	Install lower engine compartment lining.		AR61.20-P-1105XG
56	Disconnect vehicle from vehicle lift.		AR00.60-P-1006A

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Set Of Flexible Head Wrenches (001 589 81 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Ring Wrench (177 589 00 03 00)

Courtesy of MERCEDES-BENZ USA
