Detach/Attach Low-Temperature Circuit Switchover Valve Mounting Support - AR09.41-P-1220-01XGA
Engine 176 in model 463
as of model year 2019
LOWER ENGINE COMPARTMENT PANELING
| Number | Designation | Model 463 as of model year 2019 |
||
|---|---|---|---|---|
| BA61.20-P-1002-01A | Bolt, mounting rail in lower engine compartment lining (front) to frame | M8 | Nm | 20 |

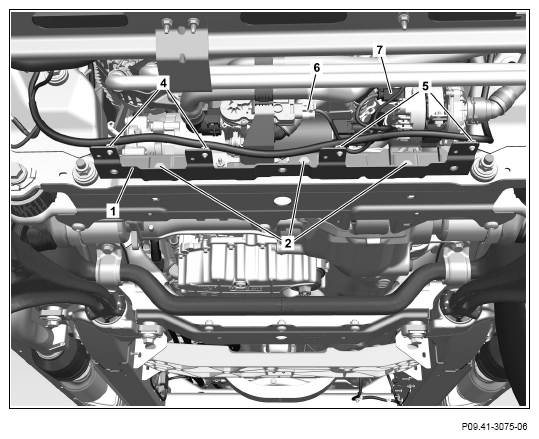

- Unclip brackets (4, 5) of the electric line on mounting console (1).
- Release and disconnect electrical connectors (6, 7).
- Unscrew bolts (2) from mounting console (1)
.
- Move mounting console (1) with low-temperature circuit switchover valve (Y73/1) and low-temperature circuit circulation pump 1 (43/6) downwards and remove it.
- Install in the reverse order.
