Remove/Install Transfer Case Absolute Sensor - AR28.19-P-1009XGA
Model 463 with engine 176 with transmission 725.0
as of model year 2019
Model 463 with engine 177 with transmission 725.0
as of model year 2019
Model 463 with engine 264 with transmission 725.0
as of model year 2019

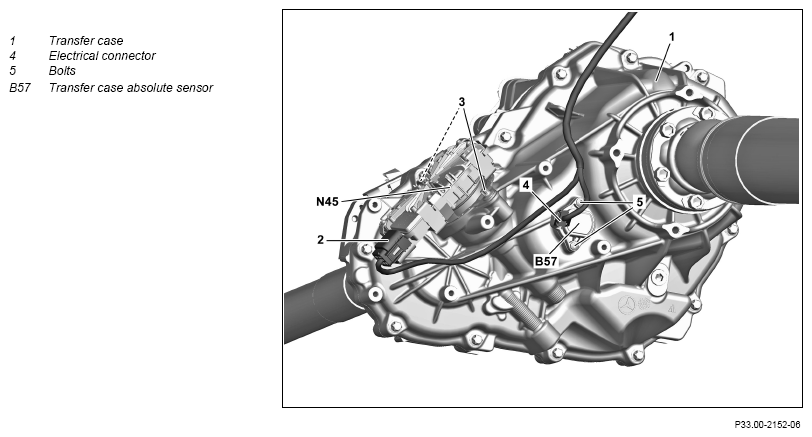

Fig 1: Transfer Case Absolute Sensor Components Location - Model 463 With Engines 176, 177 With Transmission 725.0
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Lift vehicle with vehicle lift. | AR00.60-P-1006A | |
| 2 | Release and disconnect electrical connector (4) from transfer case absolute sensor (B57). | ||
| 3 | Remove screws (5). | *BA28.19-P-1003-01B | |
| 4 | Remove transfer case absolute sensor (B57). | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04B | ||
The lugs of the transfer case absolute sensor (B57) must latch into the grooves in the transfer case (1). Damage will otherwise occur. |
|||
| 5 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform engine test run; while doing so, check transfer case (1) for proper operation and leak tightness. | ||
| 7 | Lower vehicle with vehicle lift. | AR00.60-P-1006A |
TRANSFER CASE ELECTRICAL SYSTEM
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA28.19-P-1003-01B | Screw/bolt, absolute sensor to transfer case | M5 | Nm | 5 |
