Remove/Install Drive Plate - AR03.30-P-8003XGA
Engine 176 in model 463
as of model year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Remove/install | |||
| 1 | Remove the transmission with torque converter. | Engine 176 in model 463 with transmission 725.0 as of model year 2019 |
AR27.10-P-0500XGA |
| 2 | Install retaining lock | AR03.30-P-5001XGA | |

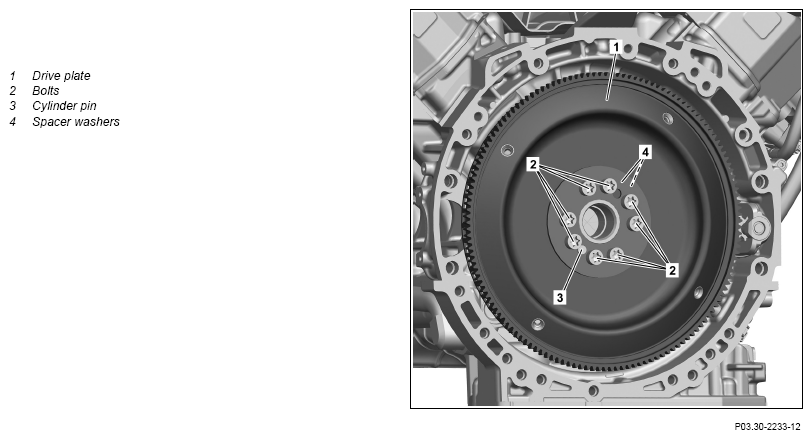

| 3 | Remove screws/bolts (2). | *BA03.30-P-1003-01W | |
| 4 | Remove drive plate (1) with spacer disks (4). | ||
| 5 | Check drive plate (1) for damage. | When reusing the drive plate (1). If complaints are present, ↓ Install new drive plate (1). |
|
| 6 | Check spacer disks (4) for damage. | When reusing the spacer disks (4). If complaints are present, ↓ replace spacer disks (4). |
|
| 7 | Install in the reverse order. |
FLYWHEEL, VIBRATION DAMPER
| Number | Designation | Engine 176 | ||
|---|---|---|---|---|
| BA03.30-P-1003-01W | Bolt, drive plate to crankshaft | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 45 | ||
| Stage 3 | ∠° | 90 | ||
