Remove/Install Rear Engine Support - AR22.10-P-4360XGA

Engine 176 in model 463

as of model year 2019

Engine 177 in model 463

as of model year 2019

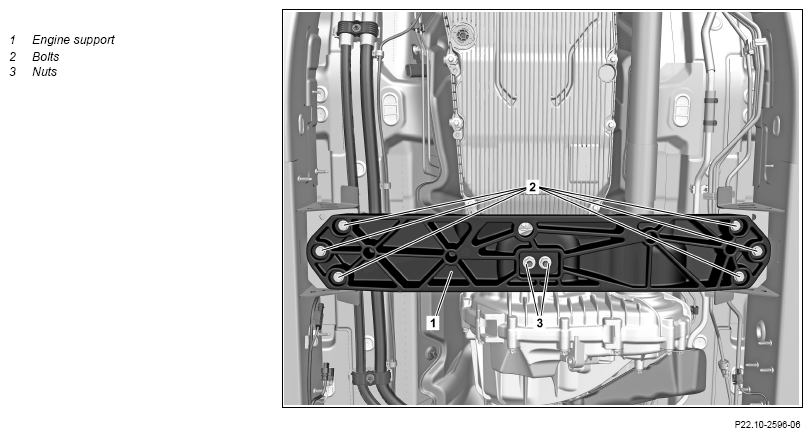

G13656936

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Raise vehicle.		AR00.60-P-1006A
2	Support the automatic transmission.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
3	Unscrew nuts (3).	: Replace nuts (3).
		Nut/screw, rear transmission mount to carrier/transfer case	*BA22.10-P-1003-03Q
4	Unscrew screws (2) and remove rear engine support (1) downwards.	In no case use impact wrenches or pneumatic tools to remove/screw in screws (2). Otherwise the threads can get damaged. : Replace screw/bolts (2).
		Screw, rear transmission mount carrier to frame	*BA22.10-P-1002-03Q
5	Install in the reverse order.

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 463 as of model year 2019
BA22.10-P-1002-03Q	Screw, rear transmission mount carrier to frame	M8	Stage 1	Nm	10
BA22.10-P-1002-03Q	Screw, rear transmission mount carrier to frame	M8	Stage 2	Nm	30

Engine mount, engine support (engine side)

Number	Designation			Model 463 as of model year 2019
BA22.10-P-1003-03Q	Nut/screw, rear transmission mount to carrier/transfer case	M8	Nm	20
BA22.10-P-1003-03Q	Nut/screw, rear transmission mount to carrier/transfer case	M10	Nm	58
