Remove/Install Front Axle Differential Propeller Shaft - AR41.10-P-0070XGA
Model 463 with engine 176
as of model year 2019
Model 463 with engine 177
as of model year 2019
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Remove/install | |||
| 1 | Put transmission into neutral position. | ||
| 2 | Release parking brake. | ||
| 3 | Remove lower center engine compartment lining. | AR61.20-P-1105XG | |

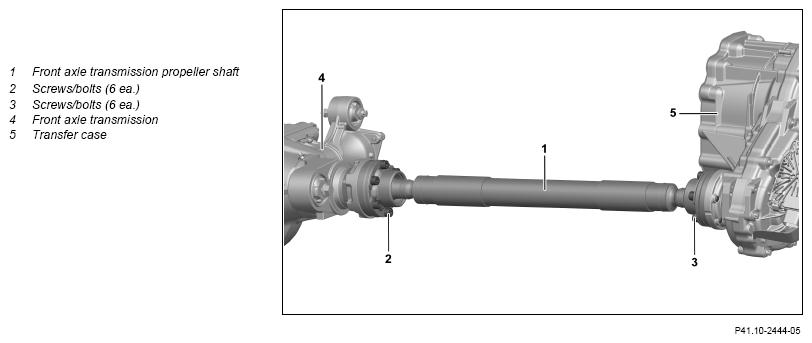

| 4 | Mark position of front axle differential propeller shaft (1) relative to flanges of front axle differential (4), transfer case (5) and the direction of installation. | ||
| 5 | Operate service brake and remove bolts (2, 3) | ||
| *BA41.10-P-1008-01B | |||
| 6 | Remove front axle differential propeller shaft (1) downwards. | ||
| Check | |||
| 7 | Check front axle differential propeller shaft (1) and boots for wear and damage. | If a problem arises, ↓ replace front axle differential propeller shaft (1). |
|
| 8 | Install in the reverse order. |
PROPELLER SHAFT
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | ||
|---|---|---|---|---|---|
| BA41.10-P-1008-01B | Bolt, propeller shaft to front axle differential/transfer case | Stage 1 | Nm | - | 40 |
| Stage 2 | ∠° | - | 90 | ||
