Remove/Install Crankshaft - AR03.20-P-4351MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

MODIFICATION NOTES

22.07.2020 Main bearing play M176/177/178 AR03.20-P-4291-03MNA BE03.20-P-1001-04E

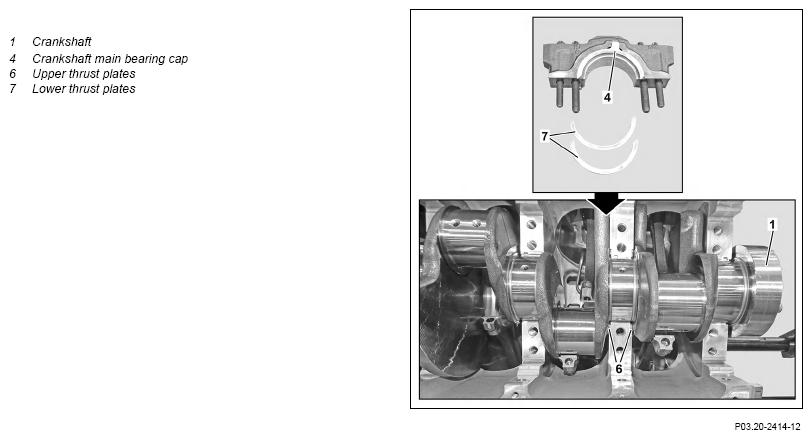

Fig 1: Crankshaft Components Location - Engine 176 In Model 463 Up To Model Year 2019
G13655441Courtesy of MERCEDES-BENZ USA

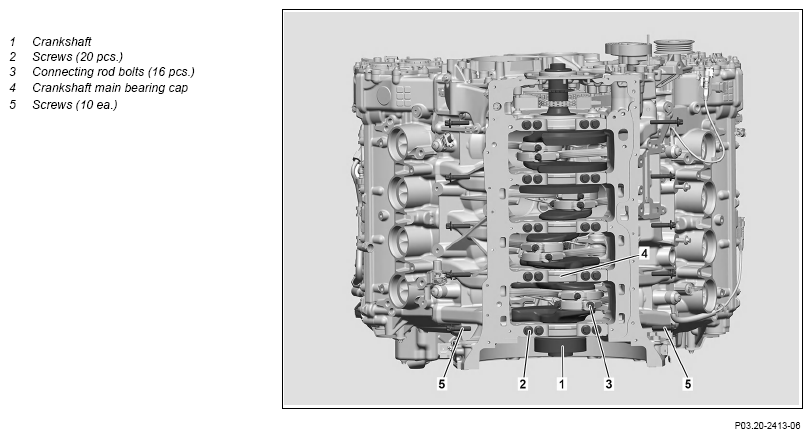

G13655442Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVING Remove
1.1 Remove engine with transmission. Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 176 in model 463
up to model year 2019
AR01.10-P-2401MNF
    Engine 177 in model 205 AR01.10-P-2401MNA
1.2 Remove engine with front axle carrier. Engine 178 in model 190 AR01.10-P-2500MNB
2
REFER TO SPECIAL TOOLS
Release engine transmission unit from lifting platform.
000 588 03 62 00 Lifting platform
Engine 178 in model 190 WS01.00-P-0091A
3.1 Remove the transmission with start-off clutch from the engine. Engine 177 in model 205 with transmission 722.93 AR27.10-P-0505MNA
3.2 Remove the drive shaft with drive shaft housing from the engine. Engine 178 in model 190 with transmission 700.4 AR41.50-P-0011MNB
3.3 Remove the transmission with torque converter from the engine. Engine 176 in model 463 with transmission 722.9
up to model year 2019
AR27.10-P-0500GW
4 Attach the engine crane with the load tilter and lifting lugs to the engine and tension the load tilter chains uniformly. Engine 178 in model 190
REFER TO SPECIAL TOOLS 000 588 00 62 00 Load tilter IMPORTANTCommercially available devices/tools
Engine crane
WS01.00-P-0102B
    SPECIAL TOOL Lifting eye Fig 3
5 Remove screws of front engine mounts. Engine 178 in model 190 AR22.10-P-4330MNB
6
REFER TO SPECIAL TOOLS
Secure the engine with engine crane and load tilter to the assembly stand.
000 588 00 31 00 Assembly stand for cars
  WS01.00-N-3028B
REFER TO SPECIAL TOOLS 000 588 00 62 00 Load tilter IMPORTANTCommercially available devices/tools
Engine crane
WS01.00-P-0102B
7
REFER TO SPECIAL TOOLS
Remove the engine crane with load tilter and front engine lifting lug from the engine.
000 588 00 62 00 Load tilter
IMPORTANTCommercially available devices/tools
Engine crane
WS01.00-P-0102B
    SPECIAL TOOL Lifting eye Fig 3
8 Remove primary chain drive timing chain. Engine 178 in model 190 AR05.10-P-7613MNB
    Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
AR05.10-P-7613MNA
9 Remove camshafts of left and right cylinder bank. Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 in model 190 (except 190.381)
AR05.20-P-6992MNA
    Camshafts of left cylinder bank. Engine 178.9 in model 190.381 AR05.20-P-6993MNJ
    Camshafts of right cylinder bank. Engine 178.9 in model 190.381 AR05.20-P-6994MNJ
10 Remove roller-type rocker arms and compensating elements.   AR05.00-P-2011MNA
11 Remove left front engine carrier. Engine 176 in model 463
up to model year 2019
AR22.10-P-4320MNF
    Engine 178 in model 190 (except 190.381) AR22.10-P-4320MNB
    Engine 178.9 in model 190.381 AR22.10-P-4325MNJ
    Engine 177 in model 205 AR22.10-P-4325MNA
12 Screw center bolt of vibration damper into crankshaft (1).
13 Mark installation position on connecting rod bearing caps and connecting rods. NOTES
Do not interchange the connecting rod bearing caps.
Engine damage can occur otherwise.

14 Remove connecting rod bolts (3) and remove connecting rod bearing caps. NOTES
The connecting rods and the connecting rod bearing caps are cracked (broken). Do not interchange the connecting rods.
Engine damage can occur otherwise.
IMPORTANT While turning crankshaft (1), make sure that connecting rods do not cant.

15 Mark connecting rod bearing shells relative to associated connecting rod and connecting rod bearing cap. Only where connecting rod bearing shells are reused.
NOTES
Do not interchange the connecting rod bearing shells.
Engine damage can occur otherwise.

16 Remove connecting rod bearing shells.
17 Determine crankshaft main bearing end play.   AR03.20-P-4291-03MNA
    Main bearing play *BE03.20-P-1001-04E
    SPECIAL TOOL Dial gauge Fig 2
    SPECIAL TOOL Dial indicator holder
If maximum value of crankshaft main bearing end play is exceeded,
↓
Replace upper thrust plates (6), lower thrust plates (7) and perform check again.
If maximum value of crankshaft main bearing end play is again exceeded,
↓
Replace crankshaft (1), lower crankshaft bearing shells, upper crankshaft bearing shells, connecting rod bearing shells and crankcase.
Fig 5
18 Mark crankshaft bearing caps and crankshaft main bearing cap (4) relative to crankcase. NOTES
Install crankshaft bearing caps and crankshaft main bearing cap (4) at same location and in same direction.
Engine damage can occur otherwise.

19 Release screws (2, 5) in reverse order to tightening procedure. Tightening procedure AR03.20-P-4351-02MNA
20 Remove crankshaft bearing caps and crankshaft main bearing cap (4).
21 Mark the lower crankshaft bearing shells relative to the crankshaft bearing cap and crankshaft main bearing cap (4). Only where crankshaft bearing shells are reused.
22 Mark lower thrust plates (7) relative to crankshaft main bearing cap (4). Only where lower thrust plates (7) will be reused.
23 Remove the lower crankshaft bearing shells from the crankshaft bearing cap and crankshaft main bearing cap (4).
24 Remove lower thrust plates (7) from crankshaft main bearing cap (4).
25 Remove crankshaft (1) from the crankcase.
  When reusing the upper crankshaft bearing shells/thrust plates (6)
26 Mark upper crankshaft bearing shells relative to crankcase.
27 Mark upper thrust plates (6) relative to crankcase.
28 Remove upper crankshaft bearing shells and upper thrust plates (6) from crankcase.
29 Clean all parts of crank assembly. NOTES
The parts of the crank assembly must be absolutely free of soiling.
Engine damage can occur otherwise.
Assembly cleaner
*BR00.45-Z-1028-04A
INSPECT Check
  Information on assessing wear of main bearings and main bearing journals   AH03.20-P-1000-02MM
  Notes on assessing wear on connecting rod bearings and connecting rod journals   AH03.10-P-0001-03MM
30 Check crankshaft (1) in removed state. Only where crankshaft (1) is reused. AR03.20-P-4463-01MNM
    IMPORTANTCommercially available devices/tools
Quick calipers for internal measurements
Outside micrometer
Crankshaft journal Ø
*BE03.20-P-1001-02J
    Crankshaft bearing *BE01.40-P-1001-04C
    TORQUE SPECIFICATION Bolt, crankshaft bearing cap to crankcase *BA03.20-P-1002-01N
    Basic bore width at fit bearing *BE01.40-P-1002-04C
    Connecting rod bearing journal Ø *BE03.20-P-1003-02J
    SPECIAL TOOL Dial gauge Fig 4
31 Check crankshaft bearing shells, lower thrust plates (7), upper thrust plates (6) and crankshaft bearing journals for wear and damage. If problems occur,
↓
Replace crankshaft bearing shells, lower thrust plates (7), upper thrust plates (6) and/or crankshaft (1).

32 Check connecting rod bearing shells and connecting rod journals for wear and damage. If problems occur,
↓
Replace connecting rod bearing shells and/or crankshaft (1).

INSTALLING Install
33 Assign new upper and new lower crankshaft bearing shells. Only when replacing the upper and lower crankshaft bearing shells. AR03.20-P-4360-01MM
34
REFER TO CAPACITIES & SPECIFICATIONS
Wet upper crankshaft bearing shells and upper thrust plates (6) with engine oil.
Specified engine oils for Cars, Vans (service) - Overview
  BB00.40-P-0223-02A
35.1 Insert new upper crankshaft bearing shells and new upper thrust plates (6) into crankcase. Only when replacing the upper crankshaft bearing shells and upper thrust plates (6).
35.2 Insert previously marked upper crankshaft bearing shells and previously marked upper thrust plates (6) at respectively marked location in crankcase. Only where upper crankshaft bearing shells and upper thrust plates (6) will be reused.
36
REFER TO CAPACITIES & SPECIFICATIONS
Wet crankshaft journals with engine oil. Specified engine oils for Cars, Vans (service) - Overview   BB00.40-P-0223-02A
37 Position crankshaft (1) in crankcase.
38
REFER TO CAPACITIES & SPECIFICATIONS
Wet lower crankshaft bearing shells with engine oil.
Specified engine oils for Cars, Vans (service) - Overview
  BB00.40-P-0223-02A
39.1 Insert the new lower crankshaft bearing shells into the crankshaft bearing cap and crankshaft main bearing cap (4). Only where lower crankshaft bearing shells will be replaced.
39.2 Insert previously marked lower crankshaft bearing shells into respectively marked crankshaft bearing cap and marked crankshaft main bearing cap (4). Only where crankshaft bearing shells are reused.
40
REFER TO CAPACITIES & SPECIFICATIONS
Wet lower thrust plates (7) with engine oil. Specified engine oils for Cars, Vans (service) - Overview   BB00.40-P-0223-02A
41.1 Insert new lower thrust plates (7) into crankshaft main bearing cap (4). Only where lower thrust plates (7) will be replaced.
41.2 Insert previously marked lower thrust plates (7) relative to respectively marked location in crankshaft main bearing cap (4). Only where lower thrust plates (7) will be reused.
42 Install crankshaft bearing caps and crankshaft main bearing cap (4) relative to respectively marked location in crankcase. NOTES
Install crankshaft bearing caps and crankshaft main bearing cap (4) at same location and in same direction.
Engine damage can occur otherwise.
AR03.20-P-4360-01MM
43
REFER TO CAPACITIES & SPECIFICATIONS
Wet contact surface of bolt heads of new bolts (2, 5) with engine oil.
Specified engine oils for Cars, Vans (service) - Overview
IMPORTANT Replace screws (2, 5). BB00.40-P-0223-02A
44 Tighten new bolts (2, 5). Tightening procedure
IMPORTANT Observe tightening procedure.
AR03.20-P-4351-02MNA
    TORQUE SPECIFICATION Bolt, crankshaft bearing cap to crankcase *BA03.20-P-1002-01N
    TORQUE SPECIFICATION Side bolt to crankshaft bearing cap *BA03.20-P-1001-01N
45 Turn crankshaft (1) at center bolt and check for unobstructed movement. If the crankshaft (1) is sluggish or stuck:
↓
Check for correct usage and seat of upper crankshaft bearing shells and lower crankshaft bearing shells.
AR03.20-P-4360-01MM
46 Check connecting rod bolts (3) and replace if necessary.   AR03.10-P-6111-01MNA
    Connecting rod bolts *BE03.10-P-1001-03A
47.1 Install connecting rod bearing shells. When replacing connecting rod bearing shells. AR03.10-P-6111-08MNA
REFER TO CAPACITIES & SPECIFICATIONS Specified engine oils for Cars, Vans (service) - Overview   BB00.40-P-0223-02A
47.2 Install connecting rod bearing shells relative to associated connecting rod and connecting rod bearing cap. Only where connecting rod bearing shells are reused. AR03.10-P-6111-08MNA
REFER TO CAPACITIES & SPECIFICATIONS Specified engine oils for Cars, Vans (service) - Overview   BB00.40-P-0223-02A
48
REFER TO CAPACITIES & SPECIFICATIONS
Tighten connecting rod bolts (3).
Specified engine oils for Cars, Vans (service) - Overview
  BB00.40-P-0223-02A
      AR03.10-P-6111-02MNA
    TORQUE SPECIFICATION Bolt, connecting rod bearing cap to connecting rod *BA03.10-P-1001-01W
49 Turn crankshaft (1) at center bolt of vibration damper and check for unobstructed movement. If the crankshaft (1) is sluggish or stuck:
↓
Check for correct use and seating of the connecting rod bearing shells.
AR03.10-P-6111-08MNA
REFER TO CAPACITIES & SPECIFICATIONS   Specified engine oils for Cars, Vans (service) - Overview BB00.40-P-0223-02A
50 Remove center bolt of vibration damper from crankshaft (1).
51 Install left front engine carrier. Engine 176 in model 463
up to model year 2019
AR22.10-P-4320MNF
    Engine 178 in model 190 (except 190.381) AR22.10-P-4320MNB
    Engine 178.9 in model 190.381 AR22.10-P-4325MNJ
    Engine 177 in model 205 AR22.10-P-4325MNA
52 Insert roller-type rocker arms and compensating elements.   AR05.00-P-2011MNA
53 Install camshafts of left and right cylinder bank. Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 in model 190 (except 190.381)
AR05.20-P-6992MNA
    Camshafts of left cylinder bank. Engine 178.9 in model 190.381 AR05.20-P-6993MNJ
    Camshafts of right cylinder bank. Engine 178.9 in model 190.381 AR05.20-P-6994MNJ
54 Install primary chain drive timing chain. Engine 178 in model 190 AR05.10-P-7613MNB
    Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
AR05.10-P-7613MNA
55 Attach the front engine lifting lug to the engine. SPECIAL TOOL Lifting eye Fig 3
56
REFER TO SPECIAL TOOLS
Attach the engine crane with load tilter to all engine lifting lugs, tension the load tilter chains uniformly and remove the engine from the assembly stand.
000 588 00 31 00 Assembly stand for cars
  WS01.00-N-3028B
REFER TO SPECIAL TOOLS 000 588 00 62 00 Load tilter IMPORTANTCommercially available devices/tools
Engine crane
WS01.00-P-0102B
    SPECIAL TOOL Lifting eye Fig 3
57
REFER TO SPECIAL TOOLS
Place the engine with engine crane and load tilter onto the front axle carrier.
000 588 00 62 00 Load tilter
Engine 178 in model 190
IMPORTANTCommercially available devices/tools
Engine crane
WS01.00-P-0102B
58 Tighten the screws on the front engine mount. Engine 178 in model 190 AR22.10-P-4330MNB
59
REFER TO SPECIAL TOOLS
Remove engine crane with load tilter and front engine lifting lug from engine.
000 588 00 62 00 Load tilter
Engine 178 in model 190
IMPORTANTCommercially available devices/tools
Engine crane
WS01.00-P-0102B
    SPECIAL TOOL Lifting eye Fig 3
60.1 Install transmission with start-off clutch on engine. Engine 177 in model 205 with transmission 722.93 AR27.10-P-0505MNA
60.2 Install the drive shaft with drive shaft housing in the engine. Engine 178 in model 190 with transmission 700.4 AR41.50-P-0011MNB
60.3 Install the transmission with torque converter in the engine. Engine 176 in model 463 with transmission 722.9
up to model year 2019
AR27.10-P-0500GW
61.1 Install engine with transmission. Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 176 in model 463
up to model year 2019
AR01.10-P-2401MNF
    Engine 177 in model 205 AR01.10-P-2401MNA
61.2 Install engine with front axle carrier. Engine 178 in model 190 AR01.10-P-2500MNB
CHECK VALUES FOR CRANKCASE

Number Designation Engine 176 Engine 177
BE01.40-P-1001-04C Crankshaft bearing Basic bore diameter mm 68, 500...68, 519 68, 500...68, 519
Number 1 mm 68, 500...68, 506 68, 500...68, 506
Number 2 mm 68, 506...68, 513 68, 506...68, 513
Number 3 mm 68, 513...68, 519 68, 513...68, 519
CHECK VALUES FOR CRANKCASE

Number Designation Engine 178
BE01.40-P-1001-04C Crankshaft bearing Basic bore diameter mm 68, 500...68, 519
Number 1 mm 68, 500...68, 506
Number 2 mm 68, 506...68, 513
Number 3 mm 68, 513...68, 519
CHECK VALUES FOR CRANKCASE

Number Designation Engine 176 Engine 177
BE01.40-P-1002-04C Basic bore width at fit bearing mm 21, 160...21, 127 21, 160...21, 127
CHECK VALUES FOR CRANKCASE

Number Designation Engine 178
BE01.40-P-1002-04C Basic bore width at fit bearing mm 21, 160...21, 127
CHECK VALUES FOR CONNECTING ROD BOLT

Number Designation Engine 176, 177, 178
BE03.10-P-1001-03A Connecting rod bolts Thread diameter M 8x1
Shank length When new mm 42, 5
max. mm 43, 3
CHECK VALUES OF CRANKSHAFT

Number Designation Engine 176 Engine 177
BE03.20-P-1001-02J Crankshaft journal Ø Nominal Ø mm 63, 945...63, 965 63, 945...63, 965
Repair stage 1 Blue (B) mm 63, 961...63, 965 63, 961...63, 965
2nd repair stage Yellow (G) mm 63, 957...63, 961 63, 957...63, 961
Repair stage 3 Red (R) mm 63, 953...63, 957 63, 953...63, 957
Repair stage 4 White (W) mm 63, 949...63, 953 63, 949...63, 953
Repair stage 5 Violet (V) mm 63, 945...63, 949 63, 945...63, 949
CHECK VALUES OF CRANKSHAFT

Number Designation Engine 178
BE03.20-P-1001-02J Crankshaft journal Ø Nominal Ø mm 63, 945...63, 965
Repair stage 1 Blue (B) mm 63, 961...63, 965
2nd repair stage Yellow (G) mm 63, 957...63, 961
Repair stage 3 Red (R) mm 63, 953...63, 957
Repair stage 4 White (W) mm 63, 949...63, 953
Repair stage 5 Violet (V) mm 63, 945...63, 949
TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number Designation Engine 176 Engine 177
BE03.20-P-1001-04E Main bearing play Radial measurement when new mm 0, 022...0, 046 0, 022...0, 046
Axial measurement when new mm 0, 090...0, 280 0, 090...0, 280
TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number Designation Engine 178
BE03.20-P-1001-04E Main bearing play Radial measurement when new mm 0, 022...0, 046
Axial measurement when new mm 0, 090...0, 280
CHECK VALUES OF CRANKSHAFT

Number Designation Engine 176 Engine 177
BE03.20-P-1003-02J Connecting rod bearing journal Ø mm 51, 945...51, 965 51, 945...51, 965
CHECK VALUES OF CRANKSHAFT

Number Designation Engine 178
BE03.20-P-1003-02J Connecting rod bearing journal Ø mm 51, 945...51, 965
CONNECTING ROD

Number Designation Engine 176 Engine 177
BA03.10-P-1001-01W Bolt, connecting rod bearing cap to connecting rod Stage 1 Nm 5 5
Stage 2 Nm 30 30
Stage 3 ∠° 90 90
CONNECTING ROD

Number Designation Engine 178
BA03.10-P-1001-01W Bolt, connecting rod bearing cap to connecting rod Stage 1 Nm 5
Stage 2 Nm 30
Stage 3 ∠° 90
CRANKSHAFT

Number Designation Engine 176 Engine 177
BA03.20-P-1001-01N Side bolt to crankshaft bearing cap M8x35 Stage 1 Nm 20 20
Stage 2 ∠° 90 90
M8x50 Stage 1 Nm 25 25
Stage 2 ∠° 90 90
CRANKSHAFT

Number Designation Engine 178
BA03.20-P-1001-01N Side bolt to crankshaft bearing cap M8x35 Stage 1 Nm 20
Stage 2 ∠° 90
M8x50 Stage 1 Nm 25
Stage 2 ∠° 90
CRANKSHAFT

Number Designation Engine 176 Engine 177
BA03.20-P-1002-01N Bolt, crankshaft bearing cap to crankcase M9 Stage 1 Nm 25 25
Stage 2 ∠° 90 90
M10 Stage 1 Nm 5 5
Stage 2 Nm 35 35
Stage 3 ∠° 90 90
CRANKSHAFT

Number Designation Engine 178
BA03.20-P-1002-01N Bolt, crankshaft bearing cap to crankcase M9 Stage 1 Nm 25
Stage 2 ∠° 90
M10 Stage 1 Nm 5
Stage 2 Nm 35
Stage 3 ∠° 90
Fig 2: Identifying Dial Gauge (001 589 32 21 00)
G13655443Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Lifting Eye (177 589 00 62 00)
G13655444Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Dial Gauge (001 589 53 21 00)
G13655445Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Dial Indicator Holder (363 589 02 21 00)
G13655446Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
