Remove/Install Front Engine Support - AR22.10-P-4320MNF
Engine 176 in model 463
up to model year 2019
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| Remove/install | |||
| 1 | Remove left charge air distributor | When removing the left engine support (6). | |
| AR09.41-P-8683MNF | |||
| 2 | Remove right charge air distributor | When removing the right engine support (18). | |
| AR09.41-P-8683MNF | |||
| 3 | Detach power steering pump and place to one side | When removing the left engine support (6). Engine 176 in model 463 as of model year 2016 up to model year 2019 |
|
| AR46.30-P-0500GWA | |||

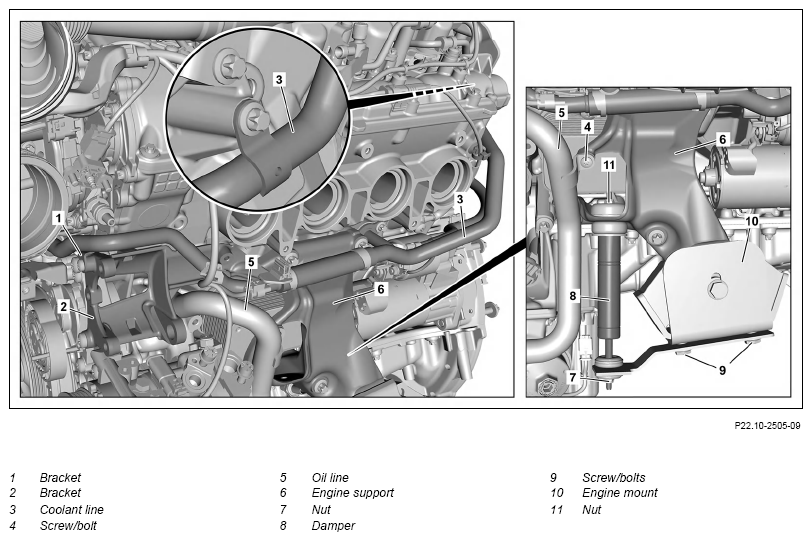

| 4 | Detach bracket (1) for coolant line (3) at bracket (2) for the power steering pump | When removing the left engine support (6). | |
| 5 | Remove screws/bolts and remove bracket (2) for power steering pump | When removing the left engine support (6). | |
| *BA46.30-P-1027-01B | |||
| 6 | Detach coolant line (3) on left cylinder head | When removing the left engine support (6). | |
| *BA20.20-P-1002-01Q | |||
| 7 | Detach coolant line (3) on crankcase and place to one side | When removing the left engine support (6). |
|
| *BA20.20-P-1002-01Q | |||
| 8 | Remove screw/bolt (4) and detach oil line (5) on left engine support (6) | When removing the left engine support (6). | |
| 9 | Detach oil line (5) on crankcase and place to one side | When removing the left engine support (6). |
|
| *BA18.30-P-1009-01N | |||
| 10 | Unscrew lower nut (7) on left damper (8) | When removing the left engine support (6). | |
| *BA22.10-P-1004-01X | |||

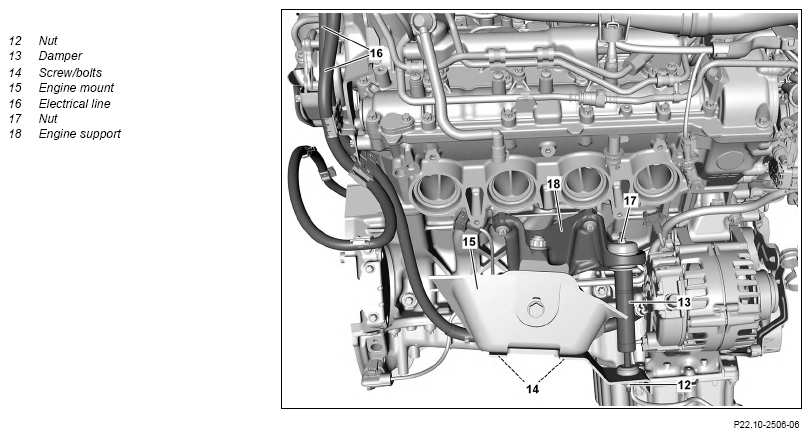

| 11 | Unscrew lower nut (12) on right damper (13) | When removing the right engine support (18). | |
| *BA22.10-P-1004-01X | |||
| 12 | Remove lower screw/bolts (9) at left engine mount (10) | When removing the left engine support (6). | |
| *BA22.10-P-1002-01X | |||
| 13 | Remove lower screw/bolts (14) at right engine mount (15) | When removing the right engine support (18). | |
| *BA22.10-P-1002-01X | |||
| 14 | Remove left-hand air filter housing | AR09.10-P-1150MNA | |
| 15 | Remove right air filter housing | AR09.10-P-1150MNA | |
| 16 | Unclip electrical lines (16) from right crash plate | ||
| 17 | Mount engine suspension lug on cylinder head | Fig 1 | |
| 18 | Mount load tilter and boom crane on engine and raise engine somewhat | ||
| 19 | Remove upper nut (11) of the left damper (8) and remove left damper (8) | When removing the left engine support (6). |
|
| *BA22.10-P-1004-01X | |||
| 20 | Remove upper nut (17) of the right damper (13) and remove right damper (13) | When removing the right engine support (18). |
|
| *BA22.10-P-1004-01X | |||
| 21 | Remove screw/bolts from left engine support (6) and take out left engine support (6) completely with the left engine mount (10) downwards | When removing the left engine support (6). | |
| *BA22.10-P-1001-02C | |||
| 22 | Remove screw/bolts from right engine support (18) and take out right engine support (18) completely with the right engine mount (15) downwards | When removing the right engine support (18). | |
| *BA22.10-P-1001-02C | |||
| 23 | Unscrew nut and remove left engine mount (10) from left engine support (6) | When replacing the left engine support (6). | |
| AR22.10-P-4330MNF | |||
| 24 | Unscrew nut and remove right engine mount (15) from right engine support (18) | When replacing right engine support (18). | |
| AR22.10-P-4330MNF | |||
| 25 | Install in the reverse order |
OIL COOLING
| Number | Designation | Engine 176 except in model 463, engine 176 in model 463 up to model year 2019 | |
|---|---|---|---|
| BA18.30-P-1009-01N | Bolt, oil line to engine | Nm | 8 |
RADIATOR, COOLANT HOSES
| Number | Designation | Engine 176 in model 217, 222 Engine 176 in model 463 up to model year 2019 | |
|---|---|---|---|
| BA20.20-P-1002-01Q | Bolt, coolant feed pipe to crankcase/cylinder head/engine carrier/belt tensioner | Nm | 9 |
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 176 | ||
|---|---|---|---|---|
| BA22.10-P-1001-02C | Bolt, engine support to crankcase | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Engine 176 in model 463 up to model year 2019 Engine 279 in model 463 | ||
|---|---|---|---|---|
| BA22.10-P-1002-01X | Nut/bolt, front engine mount to bracket | M10 | Nm | 70 |
ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Engine 176 in model 463 up to model year 2019 Engine 279 in model 463 | ||
|---|---|---|---|---|
| BA22.10-P-1004-01X | Nut, single-tube engine vibration damper to frame/engine support | M6 | Nm | 5 |
POWER STEERING PUMP
| Number | Designation | Model 463.234/239 | |
|---|---|---|---|
| BA46.30-P-1027-01B | Screw/bolt, power steering pump bracket to belt tensioner/engine support bracket | Nm | 20 |
