Adjust Camber And Caster At The Front Axle - AR40.20-P-0263LWO
Model 238
MODIFICATION NOTES
| 20.10.2017 | Method for pressing out elastomer bearing changed | Operation steps 1 to 6 | AR33.15-P-0160-02LW |

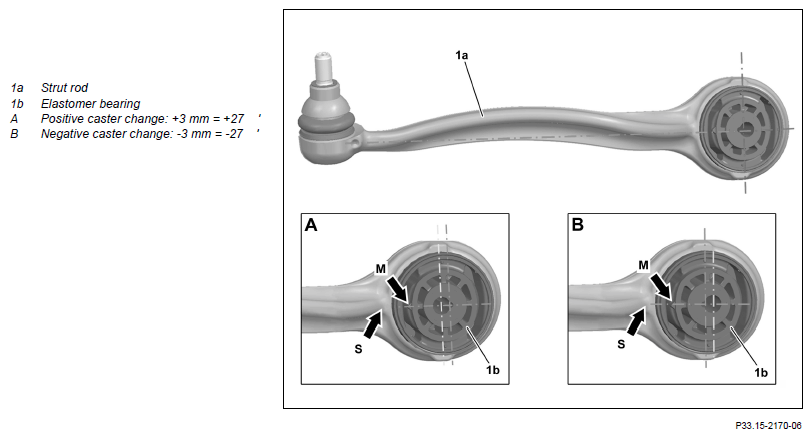

Shown except code M005 (4MATIC) on left strut rod (1a)

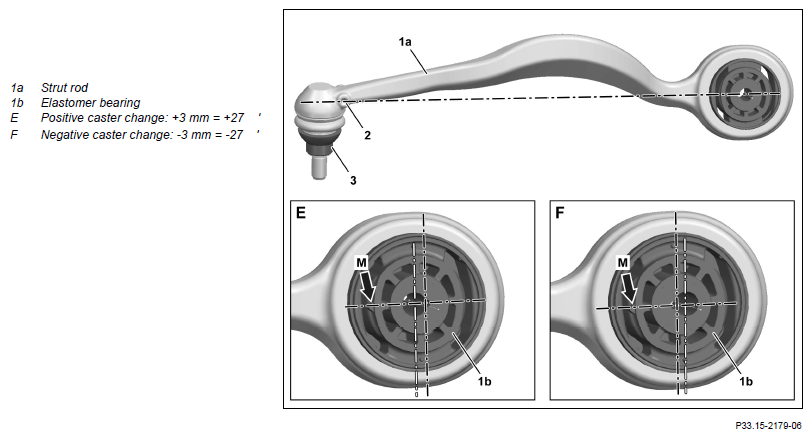

Shown with code M005 (4MATIC) on left strut rod (1a)

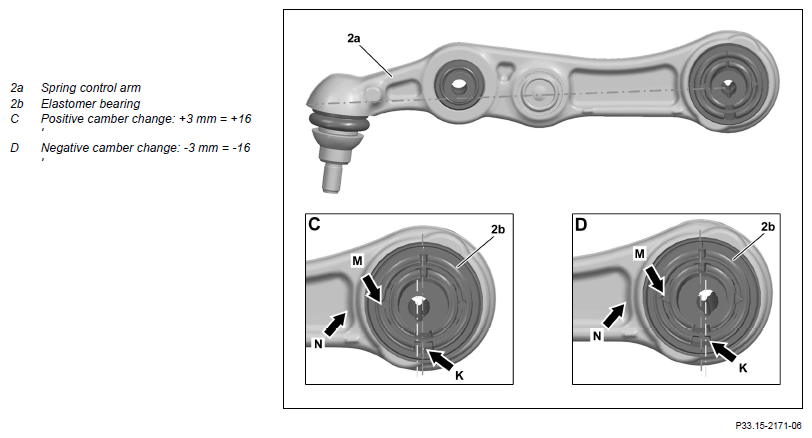

Shown except code M005 (4MATIC) on left spring link (2a)
Shown with code M005 (4MATIC) on left spring link (2a)
| Measure | |||
| 1 | Perform initial measurement | AR40.20-P-0200LWO | |
| Check | |||
| 2 | Compare determined values against specified values | Assign suspension data | AR40.20-P-0203LOA |
| Adjust | |||
| 3 | Remove spring control arm (2a) on front axle | For camber correction. Model 238 with code M005 (4MATIC) |
AR33.15-P-0170LWQ |
| Model 238 except code M005 (4MATIC) | AR33.15-P-0170LWO | ||
| 4 | Install elastomer bearing (2b) | For camber correction. Model 238 with code M005 (4MATIC) |
AR33.15-P-0170-02LWX |
| Model 238 except code M005 (4MATIC) | AR33.15-P-0170-02LW | ||
| Fig 3 | |||
Extraction and insertion tool |
Fig 2 | ||
Press-in tool |
Fig 1 | ||
| Fig 5 | |||
| 5 | Install spring control arm (2a) on front axle | For camber correction. Model 238 with code M005 (4MATIC) |
AR33.15-P-0170LWQ |
| Model 238 except code M005 (4MATIC) | AR33.15-P-0170LWO | ||
| 6 | Remove strut rod (1a) at front axle | For caster correction. Model 238 with code M005 (4MATIC) |
AR33.15-P-0160LWQ |
| Model 238 except code M005 (4MATIC) | AR33.15-P-0160LWO | ||
| 7 | Install elastomer bearing (1b) for caster correction | For caster correction. | AR33.15-P-0160-02LW |
| Fig 4 | |||
Extraction and installation tool |
Fig 5 | ||
| Fig 2 | |||
| 8 | Install strut rod (1a) at front axle | For caster correction. Model 238 with code M005 (4MATIC) |
AR33.15-P-0160LWQ |
| Model 238 except code M005 (4MATIC) | AR33.15-P-0160LWO | ||
| Measure | |||
| 9 | Perform final measurement | AR40.20-P-0200LWO |
