Remove/Install Front Axle Torque Strut - AR33.15-P-0160LWQ

Model 238

With Code M005 (Vehicles with 4MATIC/all-wheel drive)

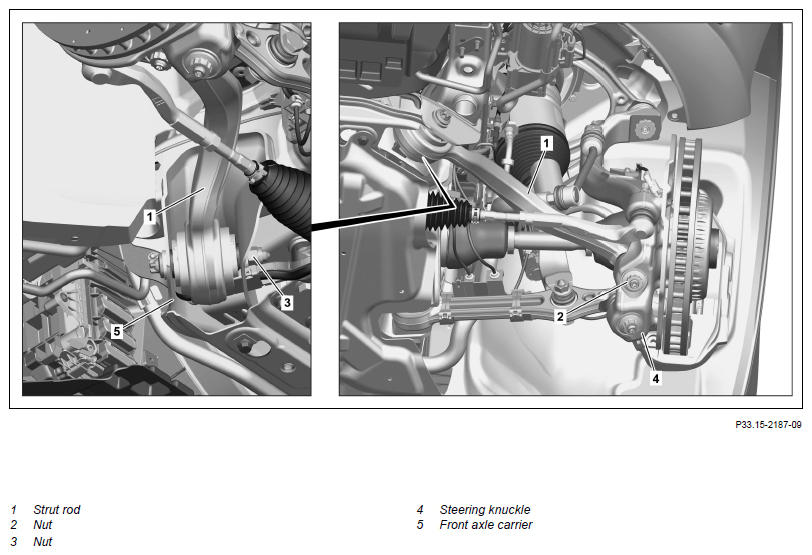

Fig 1: Front Axle Torque Strut Components Location - Model 238 With Code M005 (Shown With Code 489)

Courtesy of MERCEDES-BENZ USA

Shown With Code 489 (AIR BODY CONTROL)

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Evaluation of elastomer bearings		AH00.10-P-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove engine compartment lining from center and front.		AR61.20-P-1105LWE
2	Remove left or right front axle shaft.	Model 238 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all- wheel drive)	AR33.30-P-0620LW
3	Unscrew nut (2) and remove strut rod (1) from steering knuckle (4).	The ball head must be counterheld and an impact wrench/driver must not be used Otherwise the ball head or steering knuckle (4) will be damaged. Nut, strut rod to steering knuckle	*BA33.20-P-1003-01U
4	Unscrew nut (3) and remove strut rod (1) from front axle carrier (5).	Bolt, strut rod to front axle carrier	*BA33.20-P-1004-01U
	Check
5	Check strut rod (1) with sealing bellows, ball head and elastomer bearing for damage.
6	Replace elastomer bearing for caster correction.	If elastomer bearing for caster correction is damaged (bearing core off-center) and the strut rod (1) is to be reused. The elastomer bearing variants are shown in the reference document.	AR33.15-P-0160-02LW
		Plate	Fig 3
		Extraction and installation tool	Fig 4
		Extraction and insertion tool	Fig 2
7	Replace strut rod (1).	If neutral elastomer bearing (bearing core in center), seal bellows, ball head is damaged or if the strut rod (1) is damaged.
8	Replace elastomer bearing of new strut rod (1) with an elastomer bearing for caster correction.	When replacing the strut rod (1) if the remove strut rod (1) has an elastomer bearing for caster correction (bearing core off-center) installed. The elastomer bearing variants are shown in the reference document.	AR33.15-P-0160-02LW
		Plate	Fig 3
		Extraction and installation tool	Fig 4
		Extraction and insertion tool	Fig 2
9	Install in the reverse order.

Fig 2: Identifying Extraction And Insertion Tool (222 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Plate (202 589 04 43 07)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Extraction And Installation Tool (221 589 00 43 00)

Courtesy of MERCEDES-BENZ USA
