Retrofit Command Online - AN82.85-P-0009LWP

Model 205.0/2

as of model year 2016

with code 154 (CHANGE FROM HU-ENTRY FROM MELCO TO PANASONIC/OPTIMI. HW)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 522 (Audio 20 radio)

except code 367 (Live Traffic capability)

except code 460 (Canada version)

except code 494 (US version)

except code 498 (Japanese version)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

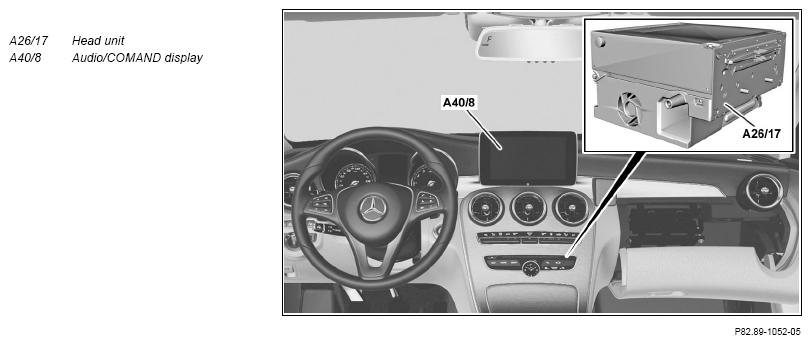

1	Remove Audio 20 CD head unit (A26/17).
		The Audio 20 CD head unit (A26/17) is no longer required.	AR82.85-P-1100LW
2	Remove upper control panel control unit.
		The upper control panel control unit is no longer required.	AR54.21-P-1262LW
3	Remove 7-inch Audio/COMAND display (A40/8).
		The 7 inch Audio/COMAND display (A40/8) is no longer required.	AR82.60-P-7722LW
4	Remove glove compartment.
			AR68.10-P-1400LW
5	Remove instrument cluster.	Model 205 except code 355 (Pre-installation for navigation retrofit)
		Model 205 except code 464 (Instrument cluster 12.3" diagonal)	AR54.30-P-6015LW
		Model 205 with code 464 (Instrument cluster 12.3" diagonal)	AR54.30-P-6015LWM
6	Remove USB electrical connector in front stowage compartment.
		The USB electrical connector is no longer required.	AR82.60-P-1032LW
7	Remove Audio/COMAND control panel.	Model 205 except code 448 (Touchpad)
		The Audio/COMAND control panel is no longer required.	AR54.21-P-0500LW
8	Remove floor covering at front left.	Model 205 except code 448 (Touchpad)
			AR68.20-P-2050LW
9	Disconnect ground line from battery.
			AR54.10-P-0003LW
	Install
10	Retrofit CAN wiring harness.	Model 205 except code 448 (Touchpad)
			AN82.60-P-0017-02LW
11	Retrofit touchpad.	Model 205 except code 448 (Touchpad)
			AN82.60-P-0017-03LW
12	Install new Audio/COMAND control panel.	Model 205 except code 448 (Touchpad)
			AR54.21-P-0500LW
13	Retrofit wiring harness for touchpad.	Model 205 except code 448 (Touchpad)
			AN82.60-P-0017-01LW
14	Retrofit GPS antenna for SD card navigation.		AN82.61-P-7474-04LW
15	Install WiFi antenna for COMAND.		AN82.85-P-0005-05LW
16	Remove plug connector housing for reversing camera electrical wiring harness.	Model 205 with code 218 (Reversing camera), model 205 with code 501 (360° camera)
			AN82.85-P-0007-09LW
		Wiring harness repair kit, basic	Fig 4
		Blade holder with clamping pliers	Fig 2
		MQS blade	Fig 3
		New passenger car wiring harness repair kit	Fig 1
17	Modify plug connector housing for USB port electrical wiring harness.	Model 205 except code 355 (Pre-installation for navigation retrofit)
			AN82.60-P-0024-01LW
		Wiring harness repair kit, basic	Fig 4
		Blade holder with clamping pliers	Fig 2
		MQS blade	Fig 3
		New passenger car wiring harness repair kit	Fig 1
18	Retrofit plug connector housing for SD card navigation electrical wiring harness.	Model 205 with code 355 (Pre-installation for navigation retrofit)
			AN82.85-P-0007-08LWI
		Wiring harness repair kit, basic	Fig 4
		Blade holder with clamping pliers	Fig 2
		MQS blade	Fig 3
		New passenger car wiring harness repair kit	Fig 1
19	Install 8.4 inch Audio/COMAND display (A40/8).
			AR82.60-P-7722LW
20	Install multimedia connection unit in front stowage compartment.
			AR82.60-P-1032LW
21	Install COMAND Online head unit (A26/17).
			AR82.85-P-1100LW
22	Install new upper control panel control unit.
			AR54.21-P-1262LW
23	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
24	Delete special equipment from online vehicle data card.	Code 154 (CONVERT HU-ENTRY FROM MELCO TO PANASONIC/OPTIMI. HW) Code 522 (Audio 20 radio) Model 205 with code 355 (Pre-installation for navigation retrofit) Code 355 (Preinstallation for navigation retrofit) Model 205 with code 357 (Map navigation) Code 357 (Card navigation)
25	Enter special equipment into online vehicle data card.	Code 531 (COMAND APS) CODE 815 (Single DVD drive)
26	Attach COMAND Online retrofitted as per AN82.85-P-0009LWP note under field organization texts to DG 82.
27	Connect diagnostic system and select vehicle using vehicle identification number (VIN).
			AD00.00-P-2000-04B
28	Perform variant coding using the software calibration number (SCN).	Electronic ignition switch control unit Head unit (A26/17) Instrument cluster
29	Disconnect diagnostic system.
			AD00.00-P-2000-04B
	Check
30	Perform function test.	See Owner's Manual.
