Remove/Install Multimedia Connection Unit In Front Stowage Compartment - AR82.60-P-1032LW
Model 205, 213, 238, 253
Shown on model 205 with code 351
(COMAND APS)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||

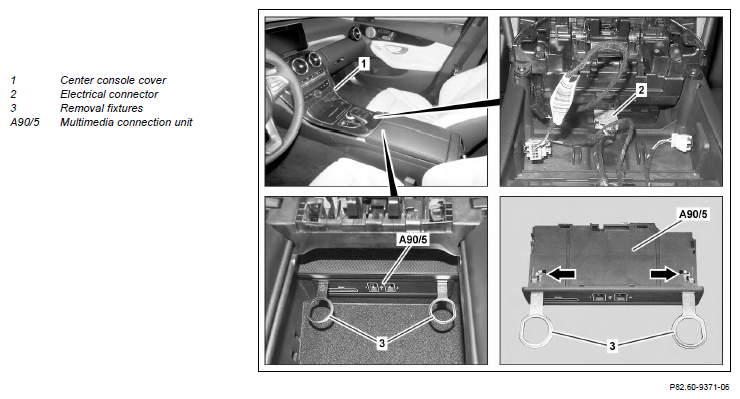

| 1 | Release center console cover (1) and lift at rear until electrical connector (2) is accessible | Model 238 with transmission 716 | AR68.20-P-2350LWP |
| Model 238 with transmission 725 | AR68.20-P-2350LWO | ||
| Model 205 with transmission 716 | AR68.20-P-2350LWA | ||
| Model 213 with transmission 716 Model 253 with transmission 716 |
|||
| Model 205 with transmission 722, 724, 725 Model 213 with transmission 725 Model 253 with transmission 724, 725 |
AR68.20-P-2350LW | ||
| 2 | Disconnect electrical connection (2) | ||
| 3 | Insert removal fixtures (3) in multimedia connection unit (A90/5) and remove multimedia connection unit (A90/5) from center console | ||
| Fig 2 | |||
| 4 | Operate locks (arrows) and pull out removal fixtures (3) | ||
| Install | |||
| 5 | Insert multimedia connection unit (A90/5) in center console | The multimedia connection unit (A90/5) must audibly engage. |
|
| 6 | Connect electrical connector (2) | ||
| 7 | Fasten center console cover (1) | Model 238 with transmission 716 | AR68.20-P-2350LWP |
| Model 238 with transmission 725 | AR68.20-P-2350LWO | ||
| Model 205 with transmission 722, 724, 725 | AR68.20-P-2350LW | ||
| Model 213 with transmission 725 | |||
| Model 253 with transmission 724, 725 | |||
| Model 205 with transmission 716 | AR68.20-P-2350LWA | ||
| Model 213 with transmission 716 | |||
| Model 253 with transmission 716 |
