Subsequently Modify Plug Housing For SD Card Navigation Electrical Wiring Harness - AN82.85-P-0007-08LWI

Model 205.0/2/3/4 with code 154 (CHANGE FROM HU-ENTRY FROM MELCO TO PANASONIC/OPTIMI. HW)

with code 355 (Preinstallation for retrofitting navigation system)

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying MQS Blade (220 589 01 99 60)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

To remove, use the blade holder with clamping pliers as well as the MQS blade from the basic wiring harness repair kit or the supplement passenger car wiring harness repair kit.

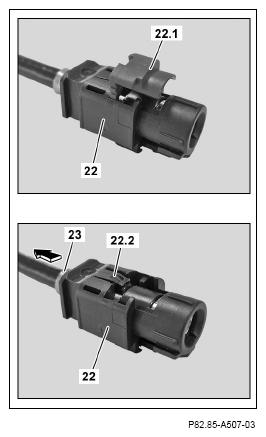

1. Remove secondary fuse (22.1) from black plug connector housing (22).
2. Lift up locking tab (22.2) of black plug connector housing (22).
3. Pull plug socket (23) out of black plug connector housing (22) in direction of arrow.

   Courtesy of MERCEDES-BENZ USA

4. Remove secondary fuse (20.1) from black plug connector housing (20).
5. Insert plug socket (23) into contact cavity "1" of black plug connector housing (20).
6. Model 205 with code 218 (Reversing camera), model 205 with code 501 (360° camera)

   Insert plug socket (43) into contact cavity "2" of black plug connector housing (20).

   The white plug socket housing was removed from the plug socket (43).

7. Mount secondary fuse (20.1) onto violet plug connector housing (20).

   Courtesy of MERCEDES-BENZ USA

8. Remove secondary fuse (15.1) from violet connector housing (15).
9. Remove contact spring of white/yellow line (WH/YE) from contact cavity "1" of violet plug connector housing (15).
10. Remove contact spring of violet line from contact cavity "2" of violet plug connector housing (15).

    If installed.

    The violet line is not present for all wiring harnesses.

11. Strap down violet line.

    If installed.

    The violet line is not present for all wiring harnesses.

12. Remove secondary fuses (16.1, 16.2) from white connector housing (16).
13. Remove contact spring of red line (RD) from contact cavity "1" of white plug connector housing (16).
14. Remove contact spring of brown line (BN) from contact cavity "2" of white plug connector housing (16).
15. Remove plug socket (14) from large contact cavity block of white plug connector housing (16).

    Courtesy of MERCEDES-BENZ USA

16. Lift up locking tab (10.1) of blue contact carrier (10).
17. Remove black 8-pin plug socket (10.2) from blue contact carrier (10).

    Courtesy of MERCEDES-BENZ USA

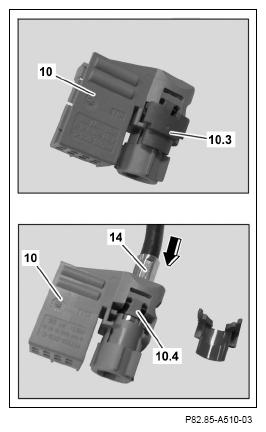

18. Remove secondary fuse (10.3) from blue contact carrier (10).
19. Insert plug socket (14) in direction of arrow into blue contact carrier (10).

    Ensure locking tab (10.4) engages securely.

20. Attach secondary fuse (10.3) to blue contact carrier (10).

    Courtesy of MERCEDES-BENZ USA

21. Install contact spring of red line (RD) in contact cavity "5" of black 8-pin plug socket (10.2).
22. Install contact spring of brown line (BN) in contact cavity "6" of black 8-pin plug socket (10.2).
23. Install contact spring of white/yellow line (WH/YE) into contact cavity "7" of black 8-pin plug connector socket (10.2).

    Courtesy of MERCEDES-BENZ USA

24. Install black 8-pin plug socket (10.2) in direction of arrow in blue contact carrier (10).

    Ensure locking tab (10.1) engages securely.
