Detach Connector Housing From Reversing Camera Electrical Wiring Harness - AN82.85-P-0007-09LW

Model 205.0/2/3/4 with code 218 (Rear view camera)

Model 205.0/2/3/4 with code 501 (360° camera)

Notice	Information on preventing damage to electronic components due to electrostatic discharge	AH54.00-P-0001-01A
Notice	Notes on retrofitting electrical/optical lines	AH82.00-P-0000-01A

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying MQS Blade (220 589 01 99 60)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

To remove, use the blade holder with clamping pliers as well as the MQS blade from the basic wiring harness repair kit or the supplement passenger car wiring harness repair kit.

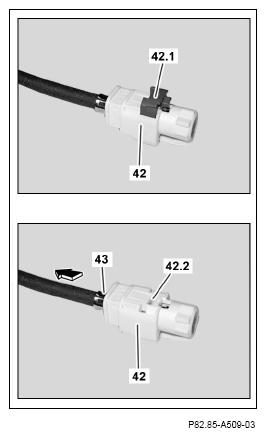

Remove secondary fuse (42.1) from white plug connector housing (42).
Lift up locking tab (42.2) of white plug connector housing (42).
Pull plug socket (43) in direction of arrow out of white plug connector housing (42).
The plug socket (43) is installed in a different plug connector housing at a later stage.

Courtesy of MERCEDES-BENZ USA
