Remove/Install Front Floor Covering (Left) - AR68.20-P-2050LW

Model 205

Model 253

Shown on MODEL 205.### 1#

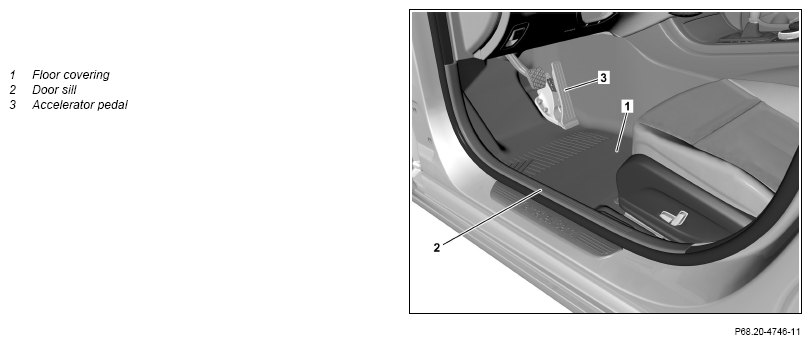

Fig 1: Left Front Floor Covering Component Location - Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust steering column toward rear and completely upward	Model 205.### 1#, 253.### 1#
2	Release front seat and tilt backwards	Model 205.0/1/2/3, 253	AR91.10-P-1000LW
		Model 205.4 Do not disconnect electrical connectors.	AR91.10-P-1000LWR
3	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)	Model 205.### 1#, 253.### 1#
4	Remove cover below dashboard	Model 205.### 1#, 253.### 1#	AR68.10-P-1500LW
		Model 205.### 2#, 253.### 2#	AR68.10-P-1520LW
5	Remove accelerator pedal (3)	Model 205.### 1#, 253.### 1#	AR30.12-P-1321LF
6	Remove door sill molding (2)	Model 205.0/1/2, 253	AR68.30-P-4100LW
		Model 205.3/4	AR68.30-P-4100CLW
7	Remove floor covering (1) from front to rear	Use assembly wedge in center console area. Position floor covering (1) below center console. Mounting wedge	Fig 2
8	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
