Retrofit COMAND Online - AN82.85-P-0009LW

Model 205.0/2/3/4

as of model year 2016

with code 3U1 (Head unit europe/CIS-states/Monoglei)

with code 522 (Audio 20 radio)

except code 154 (CHANGE FROM HU-ENTRY FROM MELCO TO PANASONIC/OPTIMI. HW)

except code 448 (Touchpad)

except code 625 (Australia specification)

except code 822 (Addit. parts for South African vehicles)

except code 830 (China version)

except code 835 (South Korea version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

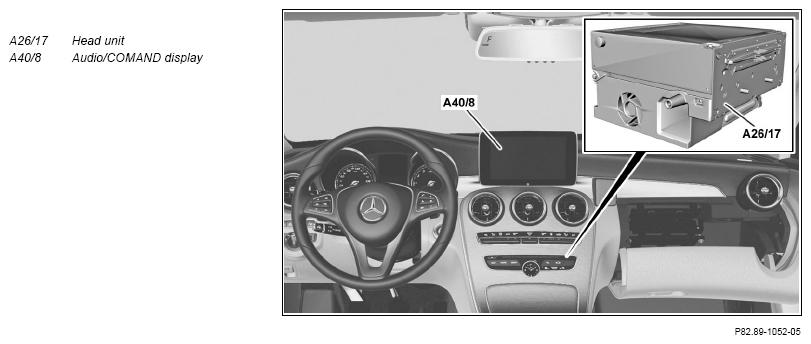

1	Remove head unit (A26/17).
		The head unit (A26/17) is no longer required.	AR82.85-P-1100LW
2	Remove upper control panel control unit.
		The upper control panel control unit is no longer required.	AR54.21-P-1262LW
3	Remove audio/COMAND display (A40/8).
		The Audio/COMAND display (A40/8) is no longer required.	AR82.60-P-7722LW
4	Remove glove compartment.
			AR68.10-P-1400LW
5	Remove instrument cluster.	Model 205 except code 355 (Pre-installation for navigation retrofit)
		Model 205 with code 464 (Digital instrument cluster, full display)	AR54.30-P-6015LWM
		Model 205 except for code 464 (Digital instrument cluster full display)	AR54.30-P-6015LW
6	Remove USB electrical connectors (X115) in front stowage compartment.	Model 205 except code 355 (Pre-installation for navigation retrofit)
			AR82.60-P-1032LW
7	Remove Audio/COMAND control panel.
		The Audio/COMAND control panel is no longer required.	AR54.21-P-0500LW
8	Remove front passenger side floor covering.	Model 205 except code 355 (Pre-installation for navigation retrofit)
		Model 205.### 1#	AR68.20-P-2070LW
		Model 205.### 2#	AR68.20-P-2050LW

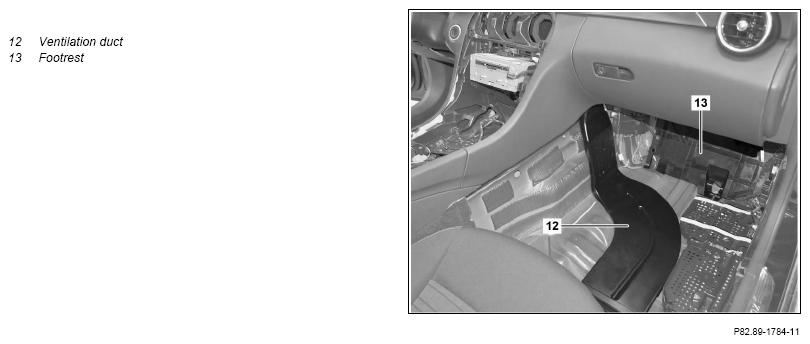

9	Remove ventilation duct (12).	Model 205 except code 355 (Pre-installation for navigation retrofit)
10	Remove footrest (13).	Model 205 except code 355 (Pre-installation for navigation retrofit)
11	Disconnect ground line from battery.	Model 205 except code 355 (Pre-installation for navigation retrofit)
			AR54.10-P-0003LW
12	Release A-pillar fuse box on front passenger side (F1/3).	Model 205 except code 355 (Pre-installation for navigation retrofit) Do not disconnect electrical lines.
13	Remove floor covering at front left.
			AR68.20-P-2050LW
	Install
14	Prepare wiring harness for SD card navigation	Model 205 except code 355 (Pre-installation for navigation retrofit)	AN82.85-P-0007-05LWA
15	Install wiring harness for SD card navigation.	Model 205 except code 355 (Pre-installation for navigation retrofit)	AN82.85-P-0007-06LWB
16	Retrofit GPS antenna for SD card navigation.	Model 205 except code 355 (Pre-installation for navigation retrofit)	AN82.61-P-7474-04LW
		Binder Duotec® Pilz in Pilz Klett - with adhesive 32	*BR00.45-Z-1084-02A
17	Install WiFi antenna for COMAND.		AN82.85-P-0005-05LW
18	Retrofit CAN wiring harness.		AN82.60-P-0017-02LW
19	Retrofit touchpad.		AN82.60-P-0017-03LW
20	Install new Audio/COMAND control panel.
			AR54.21-P-0500LW
21	Retrofit wiring harness for touchpad.		AN82.60-P-0017-01LW
22	Install new multimedia connection unit (A90/5) in stowage compartment at front.	Model 205 except code 355 (Pre-installation for navigation retrofit)
			AR82.60-P-1032LW
23	Install new audio/COMAND display (A40/8).
			AR82.60-P-7722LW
24	Install new upper control panel control unit.
			AR54.21-P-1262LW
25	Install new head unit (A26/17).
			AR82.85-P-1100LW
26	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
27	Delete special equipment from on-line vehicle data card.	Code 522 (Audio 20 radio) Model 205 with code 355 (Pre-installation for navigation retrofit) Model 205 with code 357 (Map navigation)
28	Enter special equipment into online vehicle data card.	Code 11U (Remote online) Code 448 (Touchpad) Code 531 (COMAND APS) Code 814 (DVD changer)
29	Attach COMAND Online incl. DVD changer retrofitted as per note under field organization text to DG 54 and DG 82.		AN82.85-P-0009LW
30	Connect diagnostic system and select vehicle using vehicle identification number (VIN).
			AD00.00-P-2000-04B
31	Perform variant coding for retrofitting of special equipment.		AN82.61-P-0001-05LW
32	Disconnect diagnostic system.
			AD00.00-P-2000-04B
	Check
33	Perform function test.	See Owner's Manual.
