Retrofit Touchpad Wiring Harness - AN82.60-P-0017-01LW
Model 205.0/2/3/4

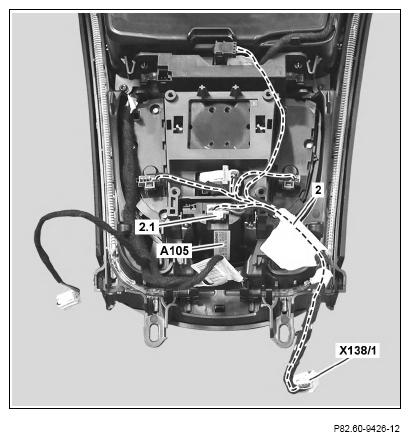

- Connect white, 4-pin connector (2.1) to touchpad (A105).
- Route wiring harness for touchpad (2), as shown, at cover for center console and fix in place.
- Connect remaining electrical connectors of touchpad wiring harness (2).
The number of electrical connectors on the wiring harness for the touchpad (2) can vary depending on the equipment variant involved.
Front center console electrical connector (X138/1) is connected when installing cover for center console.
