Retrofit WLAN Antenna For COMAND - AN82.85-P-0005-05LW

Model 205.0/2/3/4

Work procedure shown on left-hand drive vehicle, the work procedure may deviate for right-hand drive vehicles.

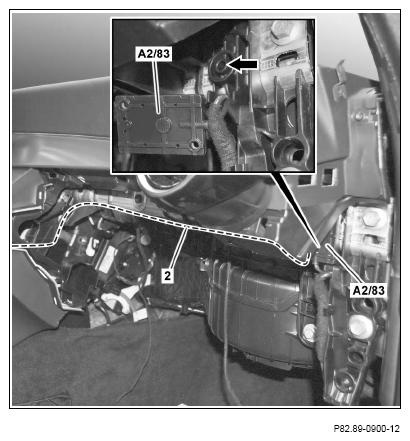

1. Clip W-LAN antenna (A2/83) into bracket (arrow).

   Bracket is located on the crossmember under the instrument panel.

2. Route antenna line (2) along cross member to device installation frame of head unit and fix in place with cable ties.

   Antenna line (2) is connected when head unit is installed.

   Courtesy of MERCEDES-BENZ USA
