Retrofit Touchpad - AN82.60-P-0017-03LW

Model 205.0/2/3/4

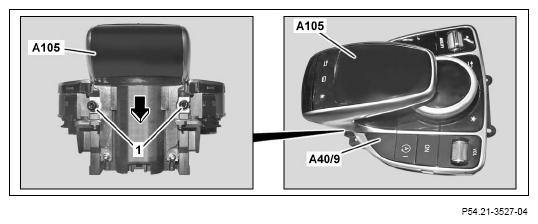

  1. Insert touchpad (A105) into Audio/COMAND control panel (A40/9) in direction of arrow.
  2. Screw on the touchpad (A105) using screws/bolts (1).
    G14188154Courtesy of MERCEDES-BENZ USA
