Retrofit Wiring Harness For SD Card Navigation - AN82.85-P-0007-06LWB

Model 205.0/2/3/4 except code 154 (CHANGE FROM HU-ENTRY FROM MELCO TO PANASONIC/OPTIMI. HW)

Connection scheme

Courtesy of MERCEDES-BENZ USA

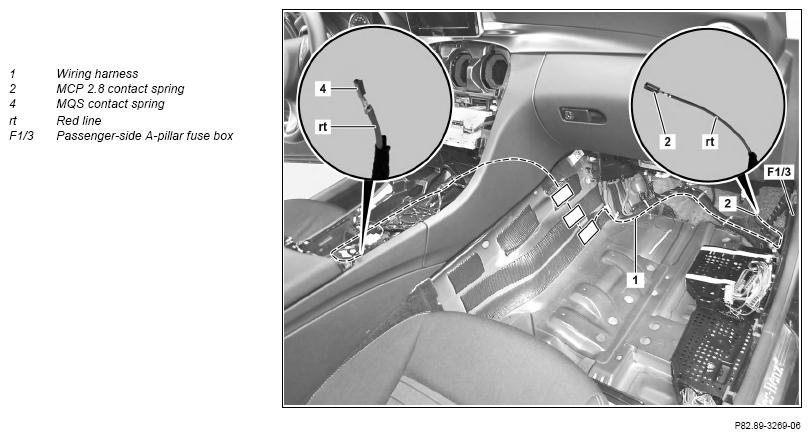

Routing diagram

Courtesy of MERCEDES-BENZ USA

The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.

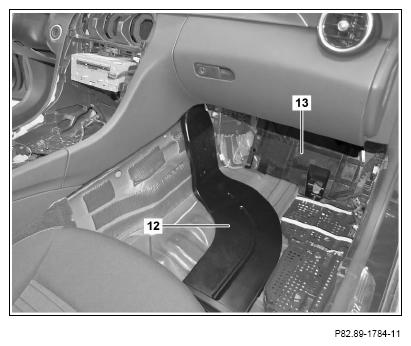

1. Remove ventilation duct (12).
2. Remove footrest (13).

   Courtesy of MERCEDES-BENZ USA

3. Remove black multiple fuse holder (14) from fuse box on front passenger-side A-pillar.

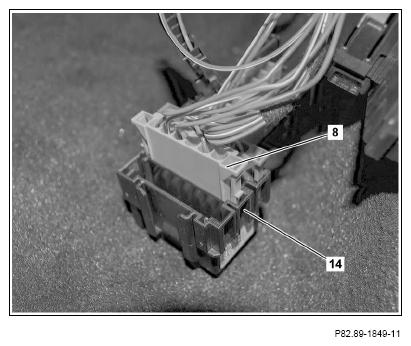

4. Remove blue 6-pin connector socket (8) from black multiple fuse holder (14).

   The slot of the blue 6-pin connector socket (8) in the black multiple fuse holder (14) is marked with"MF2".

   Courtesy of MERCEDES-BENZ USA

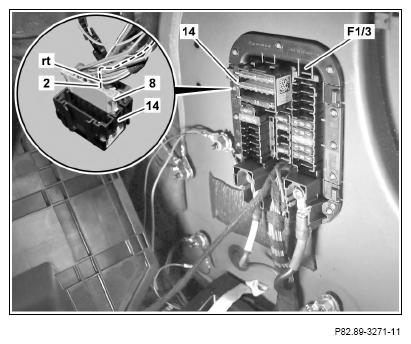

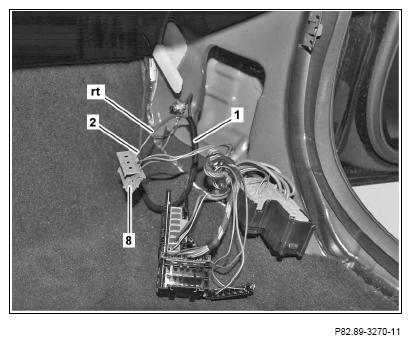

5. Install contact spring 2.8 (2) of red line (RD) of created wiring harness (1) in contact cavity "5" of blue 6-pin connector socket (8).

   Contact cavity "5" of the blue 6-pin connector socket (8) is labeled.

   Courtesy of MERCEDES-BENZ USA

6. Install blue, 6-pin connector socket (8) into black, multiple fuse holder (14).

   The slot of the blue 6-pin connector socket (8) in the black multiple fuse holder (14) is marked with"MF2".

7. Reinstall black multiple fuse holder (14) together with the other fuse holders into fuse box on front passenger side A-pillar (F1/3).

   Ensure correct seating and proper engagement of fuse holders in front passenger side A-pillar fuse box (F1/3).

   Otherwise, the fuses may work themselves loose and connected systems may then malfunction.

   Courtesy of MERCEDES-BENZ USA

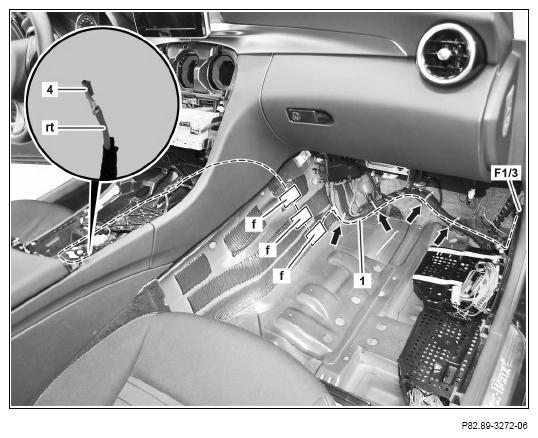

8. Route wiring harness (1) along the vehicle wiring harnesses below the device installation frame of the head unit up to the center console.

   Ensure wiring harness is routed correctly and free of chafing points.

   Otherwise, the wiring harness (1) may be damaged.

9. Fix wiring harness (1) in place using cable ties (arrows) and felt tape (f).

   Courtesy of MERCEDES-BENZ USA

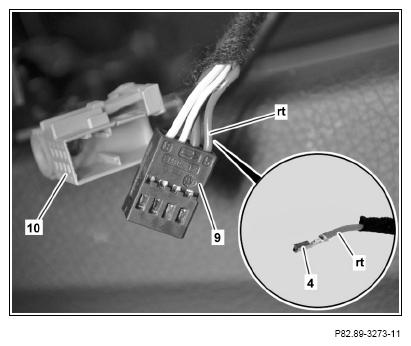

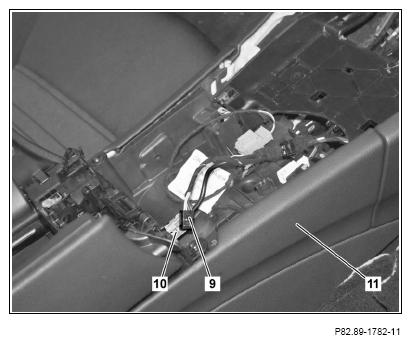

10. Remove black 8-pin connector housing (9) from blue supporting body (10).

    The blue supporting body (10) was connected to the multimedia connection unit.

    Courtesy of MERCEDES-BENZ USA

11. Install contact spring (4) of red line (RD) in contact cavity "5" of black 8-pin connector housing (9).
12. Install black 8-pin connector housing (9) into blue supporting body (10).

    Connect blue supporting body (10) at a later stage to the multimedia connection unit.

    Courtesy of MERCEDES-BENZ USA

13. Install footrest (13).

    Do not trap the electric lines.

    Otherwise, the electrical lines may be damaged and the connected systems malfunction.

14. Install ventilation duct (12).

    Courtesy of MERCEDES-BENZ USA
