Retrofit COMAND Online Incl. DVD Changer - AN82.85-P-0008LWE
Model 205.4
with code 3U1 (Head unit europe/CIS-states/Monoglei)
with code 520 (Audio 20 USB)
except code 154 (CHANGE FROM HU-ENTRY FROM MELCO TO PANASONIC/OPTIMI. HW)
except code 355 (Preinstallation for retrofitting navigation system)
except code 531 (COMAND APS)
except code 625 (Australia specification)
except code 822 (Addit. parts for South African vehicles)
except code 830 (China version)
except code 835 (South Korea version)
Model 205.4
with code 3U1 (Head unit europe/CIS-states/Monoglei)
with code 522 (Audio 20 radio)
except code 154 (CHANGE FROM HU-ENTRY FROM MELCO TO PANASONIC/OPTIMI. HW)
except code 355 (Preinstallation for retrofitting navigation system)
except code 531 (COMAND APS)
except code 625 (Australia specification)
except code 822 (Addit. parts for South African vehicles)
except code 830 (China version)
except code 835 (South Korea version)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||

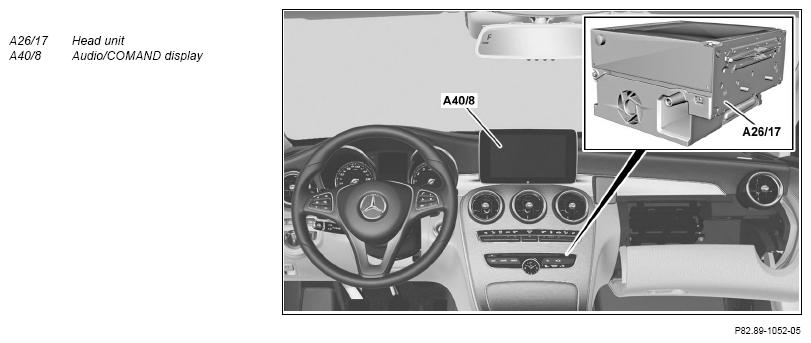

| 1 | Remove head unit (A26/17). | ||
| AR82.85-P-1100LW | |||
| 2 | Remove upper control panel control unit. | ||
| AR54.21-P-1262LW | |||
| 3 | Remove audio/COMAND display (A40/8). | ||
| AR82.60-P-7722LW | |||
| 4 | Remove USB electrical connectors (X115) in front stowage compartment. | ||
| AR82.60-P-1032LW | |||
| 5 | Remove instrument cluster. | ||
| Model 205.4 with code 464 (Digital instrument cluster, full display) | AR54.30-P-6015LWM | ||
| Model 205.4 except for code 464 (Digital instrument cluster, full display) | AR54.30-P-6015LW | ||
| 6 | Remove Audio/COMAND control panel. | Model 205.4 except code 448 (Touchpad) | |
| AR54.21-P-0500LW | |||
| 7 | Remove glove compartment. | ||
| AR68.10-P-1400LW | |||
| 8 | Remove front passenger side floor covering. | ||
| Model 205.4## 1# | AR68.20-P-2070LW | ||
| Model 205.4## 2# | AR68.20-P-2050LW | ||

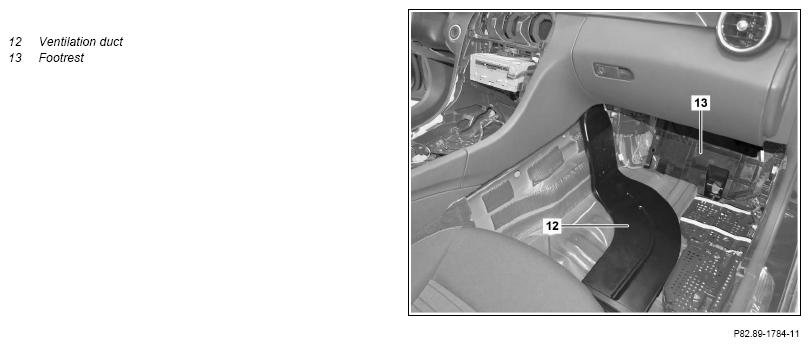

| 9 | Remove ventilation duct (12). | ||
| 10 | Remove footrest (13). | ||
| 11 | Disconnect ground line from battery. | ||
| AR54.10-P-0003LW | |||
| 12 | Release A-pillar fuse box on front passenger side (F1/3). | ||
| 13 | Remove floor covering at front left. | Model 205.4## 1# except code 448 (Touchpad) | |
| AR68.20-P-2050LW | |||
| Install | |||
| 14 | Prepare wiring harness for SD card navigation | AN82.85-P-0007-05LWA | |
| 15 | Install wiring harness for SD card navigation. | AN82.85-P-0007-06LWB | |
| 16 | Retrofit GPS antenna for SD card navigation. | AN82.61-P-7474-04LW | |
| Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | *BR00.45-Z-1084-02A | ||
| 17 | Install multimedia connection unit (A90/5) into front stowage compartment. | ||
| AR82.60-P-1032LW | |||
| 18 | Retrofit WiFi antenna for COMAND. | AN82.85-P-0005-05LW | |
| 19 | Retrofit wiring harness for touchpad. | Model 205.4 except code 448 (Touchpad) | AN82.60-P-0017-01LW |
| 20 | Retrofit CAN wiring harness. | Model 205.4 except code 448 (Touchpad) | AN82.60-P-0017-02LW |
| 21 | Retrofit touchpad. | Model 205.4 except code 448 (Touchpad) | AN82.60-P-0017-03LW |
| 22 | Install new audio/COMAND display (A40/8). | ||
| AR82.60-P-7722LW | |||
| 23 | Install new upper control panel control unit. | ||
| AR54.21-P-1262LW | |||
| 24 | Install new head unit (A26/17). | ||
| AR82.85-P-1100LW | |||
| 25 | Install remaining parts. | ||
| Update Vehicle Documentation (VeDoc) | |||
| 26.1 | Delete special equipment from on-line vehicle data card. | Model 205.4 with code 520 (Audio 20 USB) |
|
| 26.2 | Delete special equipment from on-line vehicle data card. | Model 205.4 with code 522 (Audio 20 radio) |
|
| 27 | Enter special equipment into online vehicle data card. | Code 448 (Touchpad) |
|
| 28 | Attach COMAND Online incl. DVD changer retrofitted as per note under field organization text to DG 54 and DG 82. | AN82.85-P-0008LWE | |
| 29 | Connect diagnostic system and select vehicle using vehicle identification number (VIN). | ||
| AD00.00-P-2000-04B | |||
| 30 | Perform variant coding for retrofitting of special equipment. | AN82.61-P-0001-05LW | |
| 31 | Disconnect diagnostic system. | ||
| AD00.00-P-2000-04B | |||
| Check | |||
| 32 | Perform function test. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1084-02A | Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 99 (Refer to the appropriate EPC) | Parts kit for COMAND On-line incl. DVD changer | 1 |
