Remove/Install Coolant Feed Line Of Left Turbocharger - AR09.41-P-0011MND
Engine 276.8 in model 213, 238
Shown on engine 276.823

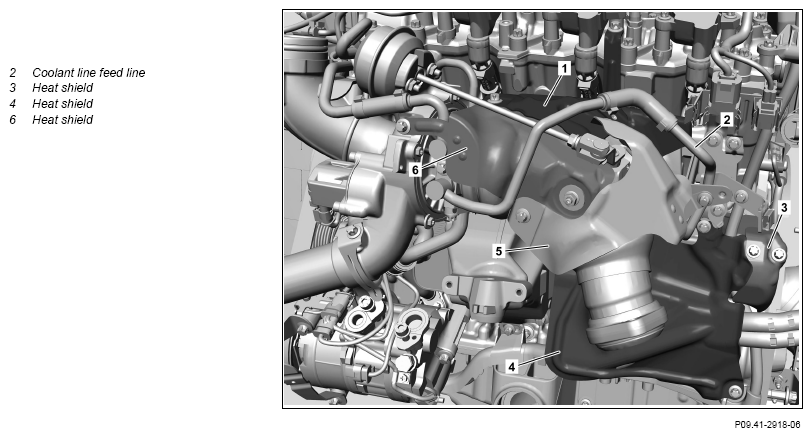

Fig 1: Coolant Feed Line Of Left Turbocharger Components Location - Engine 276.8 In Model 213 (Shown On Engine 276.823)
Shown on engine 276.823
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of Injury Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove upper engine cover | ||
| 3 | Remove front center engine compartment paneling, center engine compartment paneling, and rear engine compartment paneling | AR61.20-P-1105LWE | |
| 4 | Drain off coolant of engine cooling system | AR20.00-P-1142OLC | |
| 5 | Remove left air filter housing | AR09.10-P-1151MND | |
| 6 | Remove soundproofing of left rail | ||
| 7 | Remove left catalytic converter | Engine 276.823 in model 213, 238 | AR49.10-P-5502MND |
| 8 | Remove inerting system line from heat shield (6) and place to one side | Engine 276.8 in model 213, 238 with code 2U8 (Alternative refrigerant) | AR86.10-P-0319LWE |
| 9 | Remove heat shield (3) | Engine 276.823 in model 213, 238 | AR15.12-P-2136MND |
| 10 | Remove heat shield (4) | Engine 276.823 in model 213, 238 Engine 276.823 in model 213, 238 with code M005 (4MATIC) | AR15.30-P-7100MNG |
| 11 | Remove heat protection over knock sensor | Engine 276.823 in model 213, 238 | AR15.12-P-2184MND |
| 12 | Remove screw (9) | *BA09.40-P-1008-01W | |
| 13 | Remove screw/bolts (7, 8) | Engine 276.823 in model 213, 238 | |
| *BA09.40-P-1009-01W | |||
| *BA09.40-P-1010-01W | |||
| 14.1 | Remove coolant feed line (2) at exhaust gas recirculation valve, and remove upwards | Engine 276.853 in model 213 | AR14.20-P-0002MND |

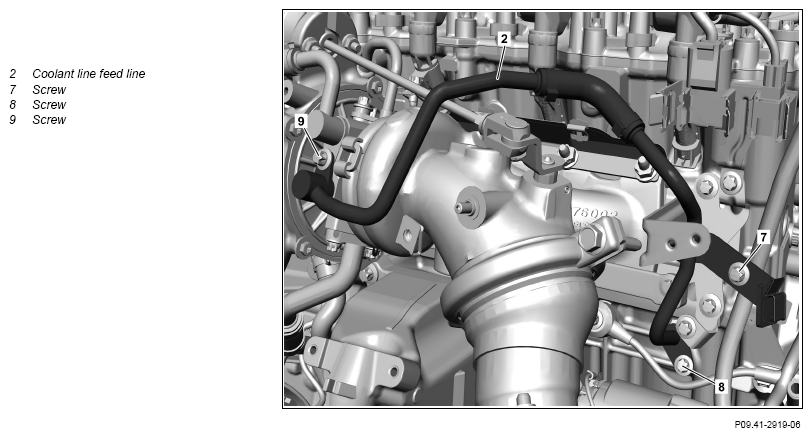

| Fig 2 | |||
| 14.2 | Remove coolant feed line (2) | Engine 276.823 in model 213, 238 |
|
| 15 | Plug exposed connections with suitable stop plugs | Fig 3 | |
| 16 | Install in the reverse order | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Carry out engine test run, checking the engine for leaktightness and proper operation | ||
| 18 | Install upper engine cover | ||
| 19 | Install front center engine compartment paneling, center engine compartment paneling, and rear engine compartment paneling | AR61.20-P-1105LWE |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1008-01W | Bolt, coolant feed/return line to turbocharger | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1009-01W | Bolt, coolant feed line to crankcase | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | ||
|---|---|---|---|---|
| BA09.40-P-1010-01W | Bolt for coolant line attachment | M6 | Nm | 9 |
