Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136MND
Engine 276.8 in model 213, 238

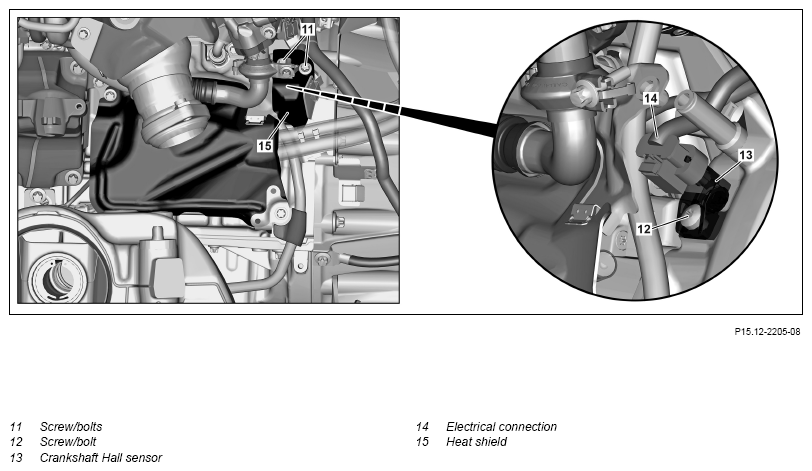

Fig 1: Crankshaft Hall Sensor Components Location - Engine 276.8 In Model 213 - (Shown On Engine 276.853)
Shown on engine 276.853
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left catalytic converter | AR49.10-P-5502MND | |
| 2 | Remove screw/bolts (11) and remove heat shield (15) of crankshaft Hall sensor (13) | *BA15.10-P-1002-02B | |
| 3 | Release and disconnect electrical connection (14) from crankshaft Hall sensor (13) | ||
| 4 | Remove screw/bolt (12) and crankshaft Hall sensor (13) upwards | *BA15.10-P-1001-03E | |
| 5 | Install in the reverse order | ||
| 6 | Read out fault memory and clear if necessary | ||
| Engine 276.8 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check exhaust system for leaktightness |
POSITION SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1001-03E | Bolt, crankshaft Hall sensor to crankcase | Nm | 8 |
KNOCK SENSORS
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1002-02B | Screw/bolt, heat shield of knock sensor to crankcase/engine support/bracket | Nm | 9 |
