Remove/Install Left Catalytic Converter - AR49.10-P-5502MND

Engine 276.8 in model 213, 238

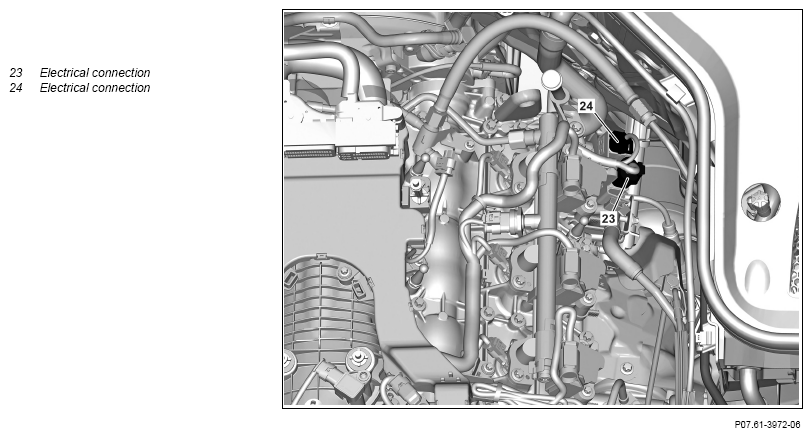

Shown on engine 276.823

Courtesy of MERCEDES-BENZ USA

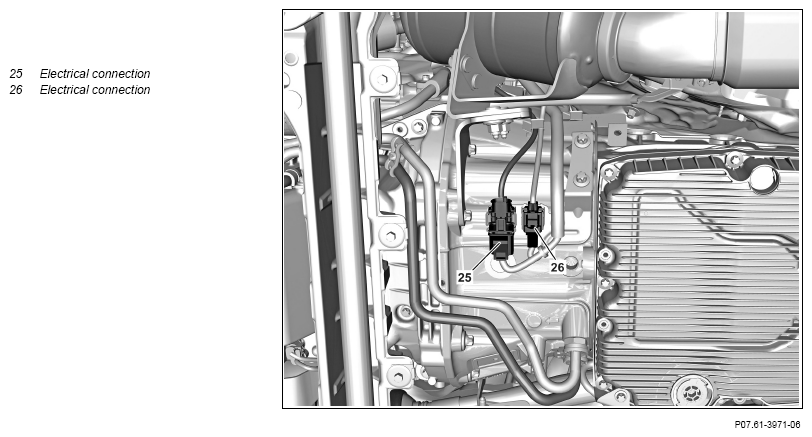

Shown on engine 276.853

Courtesy of MERCEDES-BENZ USA

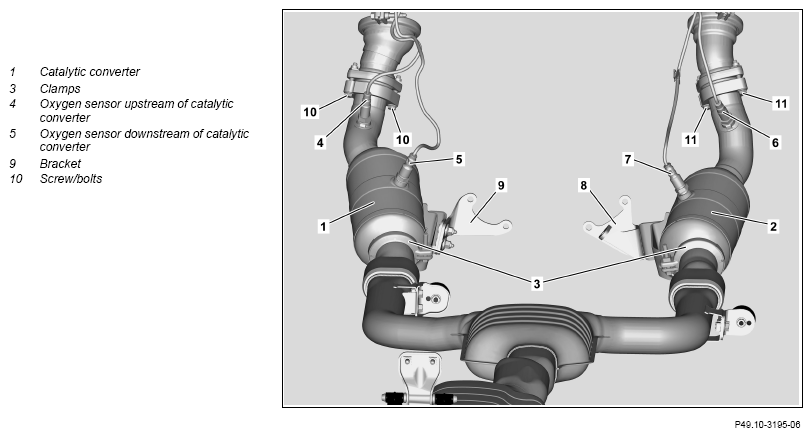

Fig 1: Left Catalytic Converter Components Location - Engine 276.8 In Model 213

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove
1	Remove left-hand air filter housing	Engine 276.823 in model 213, 238	AR09.10-P-1151MND
2	Remove soundproofing of left rail	Engine 276.823 in model 213, 238
3	Unclip electrical connections (23, 24), release and disconnect	Engine 276.823 in model 213, 238
4	Remove rear lower engine compartment paneling		AR61.20-P-1105LWE
5	Unclip electrical connections (25, 26), release and disconnect	Engine 276.853 in model 213
6	Remove screw/bolts of holder (9) of the CAT (1) on transmission and remove CAT (1) downwards
7	Detach screw/bolts (10) of CAT (1) from exhaust line
8	Remove screw/bolt at clamp (3) on center exhaust system
9	Take off clamp (3) and remove CAT (1) downwards
10	Modify oxygen sensor upstream of catalytic converter (4)	When replacing catalytic converter (1).	AR07.04-P-0083MND
11	Modify oxygen sensor downstream of catalytic converter (5)	When replacing catalytic converter (1).	AR07.04-P-0084MND
12	Remove exhaust line to ATL	When replacing the ATL (1).	AR09.40-P-6037MND
13	Remove combustion and corrosion residue at connecting points
	Install
14	Install new exhaust line to ATL	When replacing the CAT (1).	AR09.40-P-6037MND
15	Replace sealing ring on CAT (1) to center exhaust systems
16	Position CAT (1)
17	Position clamp (3)
18	Tighten screw/bolts of holder (9) of CAT (1) on torque converter housing lightly by hand
19	Tighten screw/bolts (10) of CAT (1) at the exhaust line slightly by hand	Replace screw/bolts (10).
20	Tighten screw/bolt of clamp (3) at center exhaust system lightly by hand	Replace clamp (3).
21	Check installation position and unobstructed movement of catalytic converter (1)
22	Tighten screw/bolts of holder (9) of CAT (1) on torque converter housing	Engine 276.8 in model 213Nut/bolt, catalytic converter bracket to torque converter housing/engine	*BA49.10-P-1007-02G
		Engine 276.8 in model 238Nut/bolt, catalytic converter bracket to torque converter housing/engine	*BA49.10-P-1007-02I
23	Tighten screw/bolts (10) of CAT (1) at exhaust line	Engine 276.8 in model 213Screw/bolt for catalytic converter at front exhaust line	*BA49.10-P-1012-02G
		Engine 276.8 in model 238Bolt, catalytic converter to front exhaust line	*BA49.10-P-1012-02I
24	Tighten screw/bolt at clamp (3) on center exhaust system	Engine 276.8 in model 213Clamp at turbocharger and catalytic converter/front exhaust line	*BA49.10-P-1001-02G
		Engine 276.8 in model 238Clamp at turbocharger and catalytic converter/front exhaust line	*BA49.10-P-1001-02I
25	Put together electrical connections (23, 24), lock and clip in	Engine 276.823 in model 213, 238
26	Put together electrical connections (25, 26), lock and clip in	Engine 276.853 in model 213
27	Install soundproofing of left rail	Engine 276.823 in model 213, 238
28	Install left-hand air filter housing	Engine 276.823 in model 213, 238	AR09.10-P-1151MND
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
29	Carry out an engine test run and check exhaust system for leaktightness
30	Install rear lower engine compartment paneling		AR61.20-P-1105LWE
