Repair Rear End On Left Side - Ar64.20-P-1200FR
Model 257

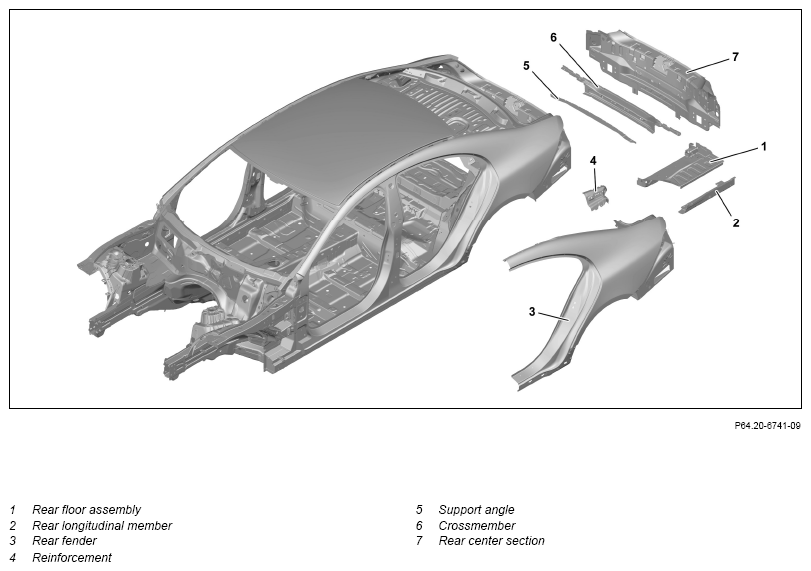

Fig 1: Quarter Panel, Rear Side Member, Quarter Panel Reinforcement And Components Locations (Model 257)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of explosion from aluminum grinding dust, risk of injury to respiratory system from inhaling dust | Wear dust filter mask, safety glasses, and protective gloves. Use a suitable, grounded dust extraction system. |
AS60.00-Z-0007-01N | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| General information on body repair | AH60.00-P-0001-01KOA | ||
| Note on working on aluminum components and vehicles | AH60.00-P-0034-01FR | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | ||
| General information on crack diagnosis of aluminum parts | AH60.00-P-0014-01N | ||
| Notes on foam-protected insulation in body | AH60.00-P-0041-01A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with spark protection blankets. | ||
| 3 | Set up straightening bench with straightening bench support members and straightening set | ||
| 000 588 01 23 00 Body straightening system | WS60.00-P-0023K | ||
| 4 | Place vehicle on straightening bench and fasten. | ||
| 5 | Reshape damage area. | ||
| 6 | Remove rear-end center section (7) with crossmember (6) and support angle (5). | AR64.20-P-1060FR | |
| 7 | Remove rear fender (3). | AR63.50-P-1401FR | |
| 8 | Cut off side wall reinforcement (4). | AR63.20-P-0861-01FR | |
| 9 | Remove rear-end floor (1) and rear longitudinal member (2). | AR64.20-P-1260-01FR | |
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| General information on riveting | AH60.00-P-0003-01N | ||
| 10 | Prepare rear-end floor (1) and rear longitudinal member (2). | AR64.20-P-1260-02FR | |
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| 11 | Prepare side wall reinforcement (4). | AR63.20-P-0861-03FR | |
| 12 | Install rear-end floor (1) and rear longitudinal member (2). | AR64.20-P-1260-03FR | |
| Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1035-13A | ||
| Countersunk-head blind rivet Z5 6.4x21.0 (clamping range 7.5 mm to 10 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1057-13A | ||
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A | ||
| Countersunk-head blind rivet Z3 6.4x17.0 (clamping area 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1055-13A | ||
| Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1012-13A | ||
| Blind rivet Y3 6.5X14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1016-13A | ||
| Blind rivet Y5 6.4 (clamping range 7.82 mm to 9.83 mm, draw-off strength min. 16 kN) | *BR00.45-Z-1034-13A | ||
| Blind rivet Y4 6.4 M6 (clamping range 5.82 mm to 7.82 mm, draw-off strength min. 16 kN) | *BR00.45-Z-1032-13A | ||
| 13 | Install side wall reinforcement (4). | AR63.20-P-0861-04FR | |
| 14 | Release vehicle from straightening bench, lift and remove straightening bench. | ||
| 15 | Install rear fender (3). | AR63.50-P-1401FR | |
| 16 | Install rear-end center section (7) with crossmember (6) and support angle (5). | AR64.20-P-1060FR | |
| 17 | Remove spark protection blankets. | ||
| 18 | Reinstall detachable parts in area of repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-13A | Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | A 004 990 16 97 |
| BR00.45-Z-1016-13A | Blind rivet Y3 6.5X14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) | A 004 990 17 97 |
| BR00.45-Z-1032-13A | Blind rivet Y4 6.4 M6 (clamping range 5.82 mm to 7.82 mm, draw off strength min. 16 kN) | A 003 990 81 97 |
| BR00.45-Z-1034-13A | Blind rivet Y5 6.4 (clamping range 7.82 mm to 9.83 mm, draw-off strength min. 16 kN) | A 003 990 80 97 |
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1055-13A | Countersunk-head blind rivet Z3 6.4x17.0 (clamping area 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN) | A 000 991 86 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1057-13A | Countersunk-head blind rivet Z5 6.4x21.0 (clamping range 7.5 mm to 10 mm, draw-off strength min. 15.5 kN) | A 000 991 88 32 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
