Disconnect, Connect Ground Line Of Additional Battery - Ar54.10-D-0004TSR
08.01.2020
Model 907
with code E2M (Auxiliary battery for retrofit consumers, engine compartment) except code E2I (Auxiliary battery for retrofitted consumers, interior)
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||

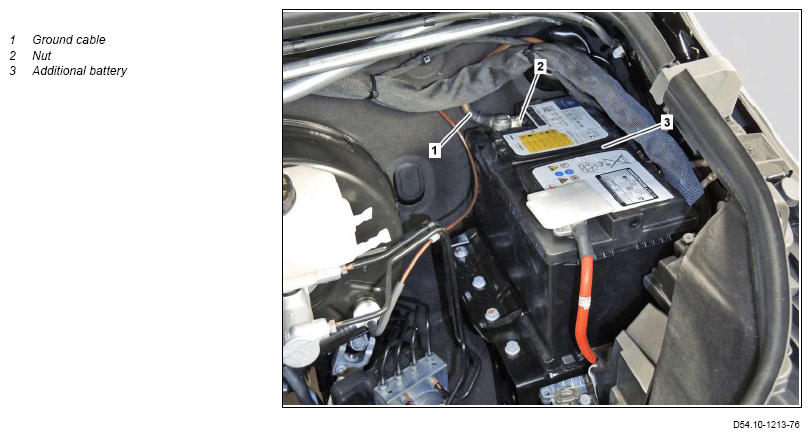

| 1 | Loosen nut (2) and disconnect ground line (1) from negative pole of auxiliary battery (3) | *BA54.10-N-1001-01TS | |
| 2 | Install in the reverse order |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA54.10-N-1001-01TS | Nut, battery clamp to negative pole/positive pole of on-board electrical system battery/auxiliary battery | Nm | 5 |
