Disconnect, Connect Ground Line Of Additional Battery - Ar54.10-D-0004TS

Model 907

with code E2I (Auxiliary battery for retrofitted consumers, interior)

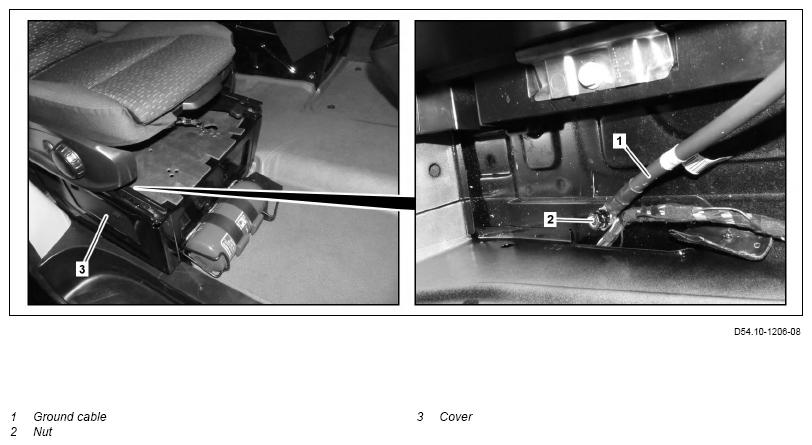

Shown on model 907 with code SB2 (Comfort front passenger seat)

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1.1	Remove cover (3)	Model 907with code S04 (Front passenger seat (Standard seat)) model 907 with code S05 (Nonadjustable front passenger seat) model 907,with code SB2 (Comfort front passenger seat) model 907 with code SF2 (Electrically adjustable front passenger seat)
1.2	Fold up seat cushion padding of front passenger bench seat	Model 907 with code S23 (Two seater front passenger seat)	AR91.10-D-1035TS
2	Unscrew nut (2)	Nut, ground line to body	*BA54.10-N-1003-01TS
3	Disconnect ground line (1) from body floor and secure against body contact
4	Install in the reverse order
