Remove/Install Check Strap - Ar41.10-D-0050-01TS

Risk of death caused by vehicle slipping or toppling off of the lifting platform.

Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.

AS00.00-Z-0010-01A

Model 907

PROPELLER SHAFT

Number	Designation		Model 907
BA41.10-N-1004-01TS	Bolt, check strap to frame	Nm	70

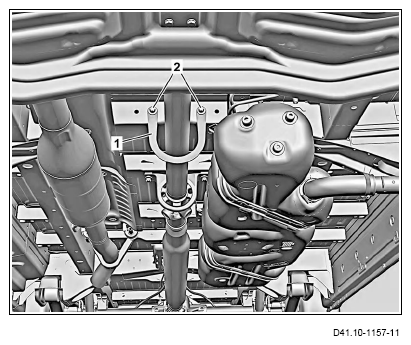

Remove bolts (2) and remove check strap (1).
Install in the reverse order.
