Remove/Install Flexible Coupling Of Propeller Shaft - Ar41.10-D-0040TS
Model 907
Shown on model 907.6/7 except code 4AM (4Matic)
Shown on model 907.8 except code 4AM (4Matic)
| |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
| |
Notes on threaded connections fastened using a tightening angle-based tightening process |
|
AH00.00-P-0020-01A |
| |
Notes on self-locking nuts and bolts |
|
AH00.00-N-0001-01A |
| |
Notes on installing propeller shaft |
|
AH41.10-N-0001-01TS |
  |
Remove/install |
|
|
| 1 |
Raise vehicle. |
|
AR00.60-D-1000-04TS |
| |
Special instructions for lifting and supporting vehicle |
|
AH00.60-N-0100-01TS |
| 2 |
Remove underfloor panels. |
Model 907 with code XM1 (Noise reduction) |
AR61.30-D-1001TS |
| 3 |
Mark installation position of front propeller shaft intermediate bearing (1) and remove front propeller shaft intermediate bearing (1) from vehicle floor. |
Observe markings. |
|
| |
|
Bolt, propeller shaft intermediate bearing to frame |
*BA41.40-N-1001-02TS |
| 4 |
Remove mounting plate from crash box. |
Model 907 with code A4M (4MATIC) |
AR41.10-D-0005TSX |
| 5 |

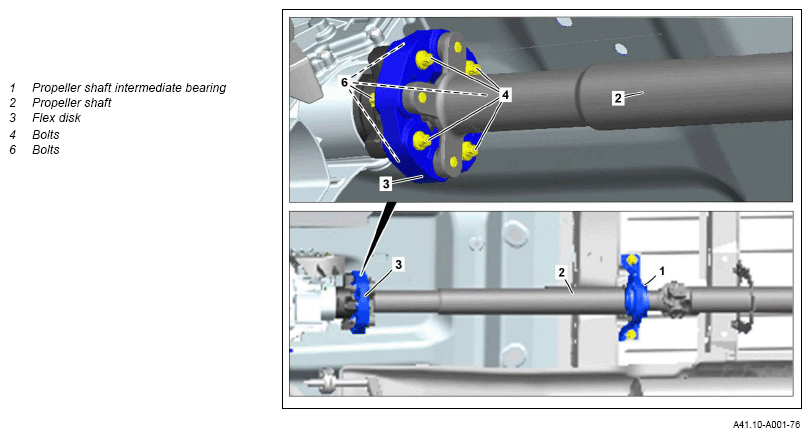

Remove screws (4) while counterholding propeller shaft (2), and detach propeller shaft (2) with flex disk (3) from output flange of transmission. |
Helper required. |
|
| |
|
Screw, flex disk to transmission output flange |
*BA41.10-N-1003-01TS |
| 6.1 |

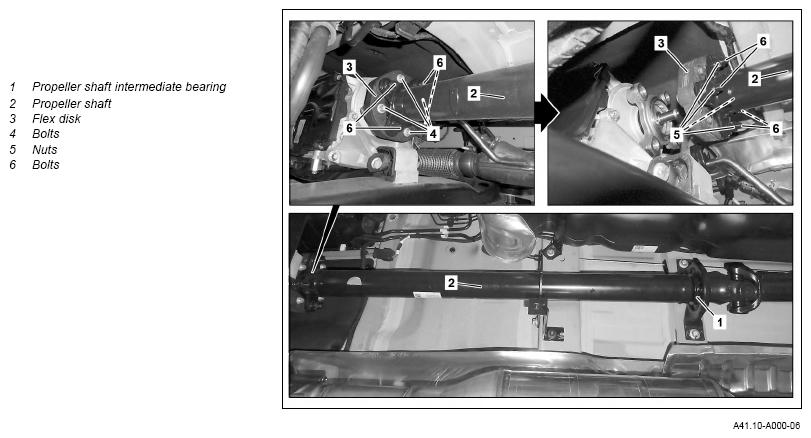

Counterhold nuts (5), remove screws (6) and remove flex disk (3) from propeller shaft (2) |
Model 907.6/7 except code A4M (4MATIC)
Helper required. |
|
| |
|
Bolt, flexible coupling to propeller shaft |
*BA41.10-N-1005-01TS |
| 6.2 |
Remove screws (6) and remove flex disk (3) from propeller shaft (2). |
Model 907.6/7 with code A4M (4MATIC)
Model 907.8
Helper required. |
|
| |
|
Bolt, flexible coupling to propeller shaft |
*BA41.10-N-1005-01TS |
| 7 |
Install in the reverse order. |
|
|
PROPELLER SHAFT
| Number |
Designation |
Model 907 with code A4M (4MATIC) and with code G43 (9G-TRONIC) |
Model 907 except code G42 |
| BA41.10-N-1003-01TS |
Screw, flex disk to transmission output flange |
M10x1 |
Stage 1 |
Nm |
- |
40 |
| Stage 2 |
∠° |
- |
60 |
| M12x1.5 |
Stage 1 |
Nm |
66 |
40 |
| Stage 2 |
∠° |
55 |
60 |
PROPELLER SHAFT
| Number |
Designation |
Model 907 with code G42 |
| BA41.10-N-1003-01TS |
Screw, flex disk to transmission output flange |
M10x1 |
Stage 1 |
Nm |
|
| Stage 2 |
A° |
- |
| M12x1.5 |
Stage 1 |
Nm |
66 |
| Stage 2 |
∠° |
55 |
PROPELLER SHAFT
| Number |
Designation |
Model 907 with code A4M (4MATIC) and with code G43 (9G-TRONIC) |
Model 907 except code G42 |
| BA41.10-N-1005-01TS |
Bolt, flexible coupling to propeller shaft |
Nm |
100 |
100 |
PROPELLER SHAFT
| Number |
Designation |
Model 907 with code G42 |
| BA41.10-N-1005-01TS |
Bolt, flexible coupling to propeller shaft |
Nm |
100 |
PROPELLER SHAFT INTERMEDIATE BEARING
| Number |
Designation |
Model 907 |
| BA41.40-N-1001-02TS |
Bolt, propeller shaft intermediate bearing to frame |
M12x1.5 |
Nm |
135 |
