Retrofit Reversing Camera With Display In Inside Rearview Mirror - An54.65-D-0031TSB

Model 907.6/7 with code FV1 (Pre-installation for reversing camera with inside rearview mirror display)

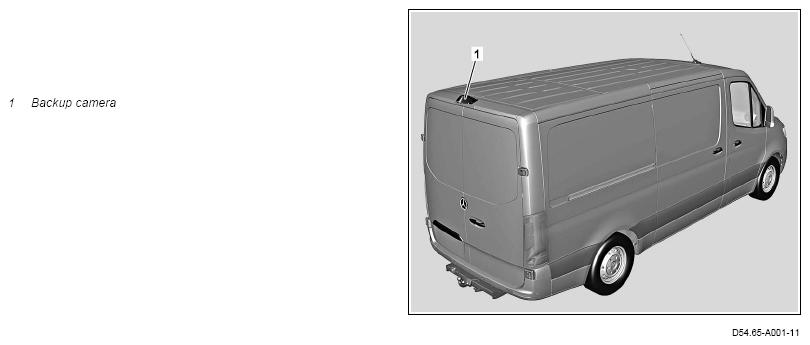

Shown on model 907.6 except code D03 (Roof and rear-end doors, high version), except code D05 (Super high roof) and except code D06 (Super high roof painted in vehicle color)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove
1	Remove additional brake lamp.
			AR82.10-D-5376TS
		Remove electrical wiring harness of additional brake lamp from working area.
	Install
2	Remove dome lamp in load compartment.
		Model 907.6 Remove electrical wiring harness of dome lamp from working area.	AR82.20-D-5615TS
	Risk of death  caused by falling from vehicle roof. Risk of injury  to other persons caused by falling objects during work in roof area.		AS65.00-Z-0002-01A
Caution	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.	AS00.00-Z-0017-01A
3	Retrofit reversing camera (1).	Model 907.6 except code D05 (Super high roof) and except code D06 (Super high roof painted in vehicle color) Model 907.7	AN54.65-D-0030-02TS
		Model 907.6 with code D05 (Super high roof) or code D06 (Super high roof painted in vehicle color)	AN54.65-D-0030-02TSB
		Cleaner	*BR00.45-Z-1025-04A
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Cavity preservation (free of solvents), 1 liter	*BR00.45-Z-1003-05A
		Masking tape	*BR00.45-Z-1026-07A
4	Install in the reverse sequence. If	Operation steps 2 to 1.
5	Enter special equipment into on-line vehiclejt data card.	Designation of corresponding special equipment: Code FR3 (reversing camera with inside rearview mirror display). Remove existing code FV1 (pre-installation for reversing camera with inside rearview mirror display). Attach the note "Reversing camera retrofitted as per AN54.65-D-0031TSB " in field organization texts to the KG 54.
	Check
6	Perform function check of reversing camera (1).	To do so, switch on ignition and engage reverse gear. Picture is shown in inside rearview mirror.
