Remove/Install Complete Rear Axle - AR35.10-P-0010LF

Model 217

Model 222

Courtesy of MERCEDES-BENZ USA

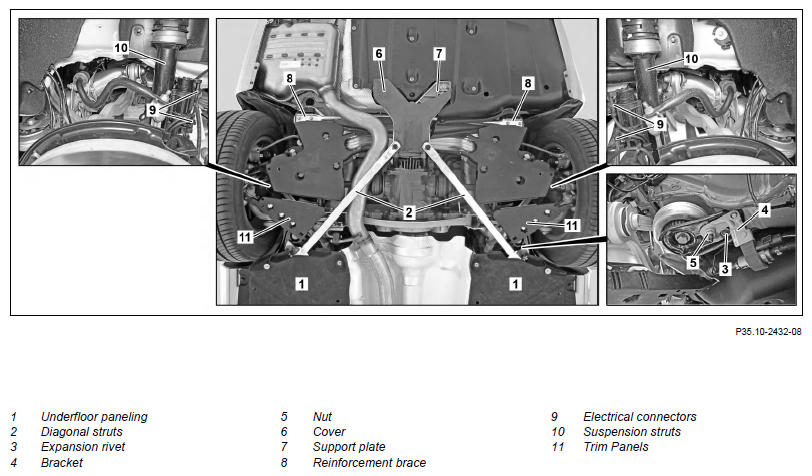

Shown on Model 222 Except Code 487 (Active Body Control (ABC))

Shown on rear axle Model 222 Except Code 487 (Active Body Control (ABC))

Courtesy of MERCEDES-BENZ USA

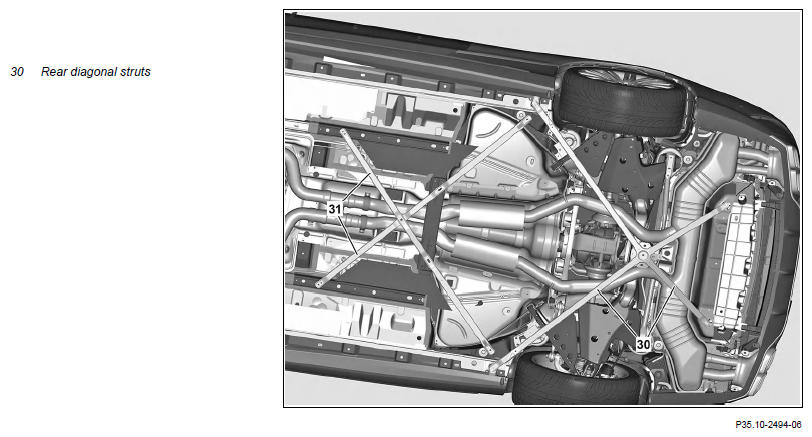

Shown on Model 217.4

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Notice	Notes on battery		AH54.10-P-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Perform disable for the high-voltage on-board electrical system	Model 222.004/057/104/157/163
			AR54.10-P-1150LF
2.1	Vent pressure in MAGIC BODY CONTROL, Active Body Control (ABC) using diagnostic system	Model 217 with code 487 (Active Body Control (ABC)) Model 222 with code 487 (Active Body Control (ABC))
			AR32.50-P-0001-01LF
			AD00.00-P-2000-04B
2.2	Vent pressure in AIRmatic system using diagnostic system	Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC))
			AD00.00-P-2000-04B
3	Shift transmission to position N
4	Switch off ignition	Do not remove the transmitter key. Otherwise the transmission will shift to position P.
5	Secure vehicle on vehicle lift
6	Detach rear complete wheels		AR40.10-P-1102A
7.1	Detach side underfloor paneling (1) in rear area	Model 217 Model 222 except code Z07 (B7 armoring on special protection version)
			AR61.30-P-1001LF
7.2	Remove underbody protection from rear axle	Model 222 with code Z07 (B7 armoring on special protection version)
			AR61.40-P-1001LFS
8	Remove diagonal struts (2)	Model 222 If installed. Screw/bolt, rear diagonal strut to body	*BA61.10-P-1008-01K
		Screw/bolt, rear diagonal strut to bracket/spare wheel well	*BA61.10-P-1009-01K
		Nut, rear diagonal strut to stop plate	*BA61.10-P-1010-01K
9	Remove rear diagonal struts (30)	Model 217 Screw/bolt, rear diagonal strut to body	*BA61.10-P-1008-01K
		Screw/bolt, rear diagonal strut to bracket/spare wheel well	*BA61.10-P-1009-01K
		Screw/bolt, rear diagonal strut to bracket (to stop plate)	*BA61.10-P-1016-01K
10.1	Remove expansion rivet (3) and place fuel pump of stationary heater with connected lines and brackets (4) to one side	Model 222 with code 228 (Additional warm water heating) If diagonal struts (2) are installed.
		Nut, rear diagonal strut to stop plate	*BA61.10-P-1010-01K
10.2	Unscrew nut (5), remove expansion rivet (3) and place stationary heater fuel pump with connected lines and bracket (4) to one side	Model 217 with code 228 (Additional warm water heating) Model 222 with code 228 (Additional warm water heating) If no diagonal struts (2) are installed.
11	Remove cover (6) from mounting plate (7)	Model 222 If installed.
12	Remove mounting plate (7)	Model 222 If installed.
		Screw/bolt, rear diagonal strut bracket to body/spare wheel well	*BA61.10-P-1011-01K
13	Remove reinforcement braces (8)	Nut, cross strut to spare wheel well/SCR recess	*BA61.10-P-1007-01K
		Screw/bolt, cross strut to rear elastomer bearing of rear axle carrier	*BA61.10-P-1006-01K
14	Detach drive shaft from rear axle differential, push to side and fix in place		AR41.10-P-0050LF
15	Detach brake caliper with connected brake hoses, press to side and fix in place		AR42.10-P-0080LF
16	Detach electrical connections (9) from suspension struts (10)	Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC))
17	Unhook all electric lines from suspension struts (10)	Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC))
18	Remove bolts from rear rpm sensors	Bolt, rpm sensor to wheel carrier	*BA42.30-P-1001-02K
19	Unclip line brackets from wheel carriers and remove with rear rpm sensors, and place to one side
20	Detach electrical connections from level sensors		AR82.10-P-0005LF
21	Unclip electric lines from level sensors on rear axle carrier and place to one side
22	Detach covers (11) from spring control arms
23	Detach suspension struts (10) from spring control arms	Model 222 with code Z07 (B7 armoring on special protection version) except code 487 (Active Body Control (ABC))	AR32.25-P-1016LFS
		Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC)) except code Z07 (B7 armoring on special protection version)	AR32.25-P-1016LFB
		Nut, suspension strut at rear to spring control arm	*BA32.25-P-1005-04O

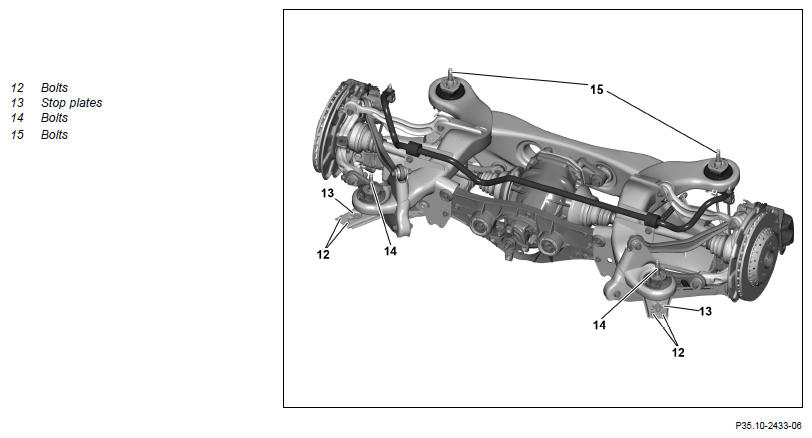

24	Remove bolts (12) from stop plates (13)	Bolt, stop plate to body	*BA35.10-P-1002-01R
25	Position lifting platform with support at rear axle and secure using tensioning strap
	000 588 03 62 00 Lifting platform		WS01.00-P-0091A
26	Remove bolts (14) from front elastomer bearings on frame floor assembly and remove stop plates (13)	Self-locking bolt securing front elastomer bearing of rear axle carrier to frame floor assembly	*BA35.10-P-1001-01R
27	Remove bolts (15) from rear elastomer bearings on frame floor assembly	Self-locking bolt securing rear elastomer bearing of rear axle carrier to frame floor assembly	*BA35.10-P-1003-01R
28	Carefully lower rear axle and remove	Make sure that the suspension struts (10) do not get caught in the spring control arms.
29	Install in the reverse order
30	Perform wheel alignment check		AR40.20-P-0200LF
