Remove/install spring control arm, replace rubber bushing - AR35.20-P-0114NKB

MODEL 117, 156, 176, 242, 246

Shown on MODEL 242

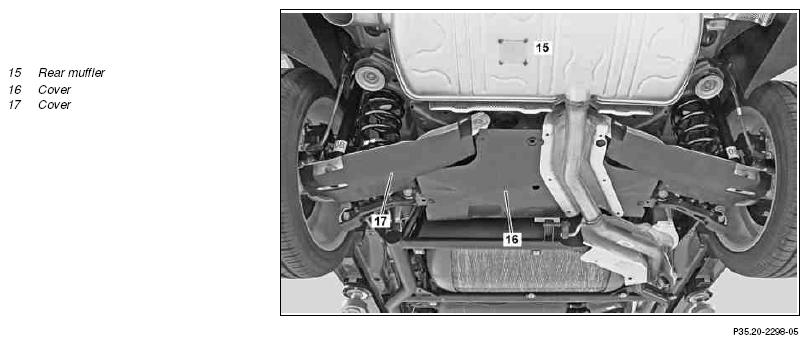

Fig 1: Spring Control Arm Remove/Install Components - Shown On Model 242
G10251018Courtesy of MERCEDES-BENZ USA

Shown on model 246 without code M005 (4MATIC)

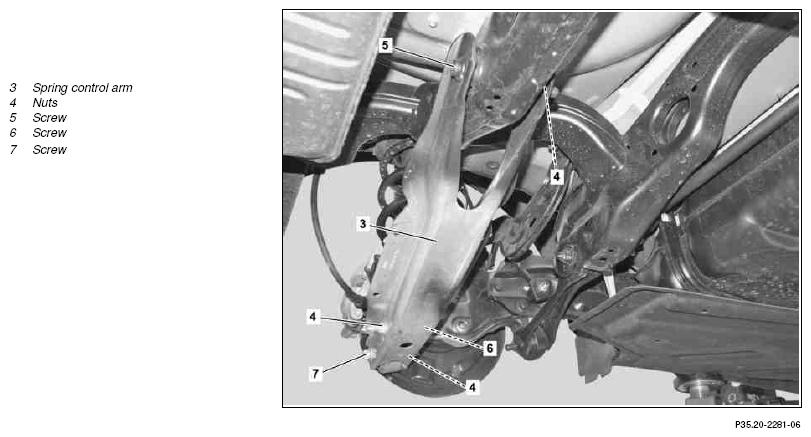

Fig 2: Spring Control Arm Remove/Install Components - Shown On Model 246 Without Code M005
G10251019Courtesy of MERCEDES-BENZ USA
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Secure vehicle on vehicle lift   AR00.60-P-0100CW
2 Remove rear muffler (15) Model 117, 156, 176, 242, 246 with engine 270 AR49.10-P-4952MT
Model 117, 156, 176 with engine 133 AR49.10-P-7100MTA
Model 176, 246 with engine 607 AR49.10-P-7100ORA
Model 117, 156, 176, 246 with engine 651 AR49.10-P-7100OLB
3 Remove covering over rear axle Model 242 with engine 780
AR61.30-P-1001NKB
4 Remove cover (16) Model 117, 156, 176, 246 except code M005 (4MATIC)
Model 242 with engine 270 except code M005 (4MATIC)

5 Unclip and remove cover (17) INSTALLATION IMPORTANT Make sure that the cover (17) is seated correctly.
6 Remove left or right rear axle spring   AR32.20-P-0230NKB
7 Unscrew nuts (4) on spring control arm (3) TORQUE SPECIFICATION Nut, shock absorber to spring control arm *BA32.25-P-1003-03J
TORQUE SPECIFICATION Self-locking nut, spring control arm to rear axle carrier *BA35.20-P-1001-01D
TORQUE SPECIFICATION Self-locking nut, spring control arm to wheel carrier *BA35.20-P-1002-01D
8 Raise spring control arm (3) on outboard side using major assembly mount and mounting plate
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount WS01.00-P-0092B
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate WS26.00-P-3309B
IMPORTANT Lift the spring control arm (3) just far enough so that the bolt (5) can be pulled halfway out of the spring control arm (3) free of tension.
9 Lower major assembly mount and mounting plate completely
10 Pull bolt (5) completely out of spring control arm (3)
11 Remove bolt (6) from spring control arm (3)
12 Remove bolt (7) from spring control arm (3)
13 Remove spring control arm (3)
14 Remove spring seat of spring control arm (3) When replacing the spring control arm (3).
INSPECT Check
15 Check elastomer bearing in rear axle carrier for damage If damage is present ↓
Replace elastomer bearing.

AR35.20-P-0114-01NKB
Press-in dimension for spring control arm rubber bushing in rear axle carrier *BE35.20-P-1001-03A
SPECIAL TOOL Hollow piston cylinder Figure
SPECIAL TOOL Hydraulic hose (complete) Figure
SPECIAL TOOL Hand pump Figure
SPECIAL TOOL Extraction and insertion tool Fig 3
16 Check elastomer bearing in steering knuckle for damage Model 117, 156, 176 with engine 270, 607, 651
Model 242, 246
If damage is present ↓
Replace all elastomer bearings.

AR35.20-P-0123NKB
17 Check elastomer bearing in steering knuckle for damage Model 117, 156, 176 with engine 133
If damage is present ↓
Replace stub axle.

AR33.25-P-0400NKB
18 Install in the reverse order
19 Perform wheel alignment check   AR40.20-P-0200NKB
CHECK VALUES FOR REAR AXLE RUBBER BUSHINGS

Number Designation Model 117 (except 117.352) Model 117.352
BE35.20-P-1001-03A Press-in dimension for spring control arm rubber bushing in rear axle carrier mm 4, 5 (±0, 2) 4, 5 (±0, 2)
CHECK VALUES FOR REAR AXLE RUBBER BUSHINGS

Number Designation Model 156 Model 176 (except 176.052), 246
BE35.20-P-1001-03A Press-in dimension for spring control arm rubber bushing in rear axle carrier mm 4, 5 (±0, 2) 4, 5 (±0, 2)
CHECK VALUES FOR REAR AXLE RUBBER BUSHINGS

Number Designation Model 176.052 Model 242
BE35.20-P-1001-03A Press-in dimension for spring control arm rubber bushing in rear axle carrier mm 4, 5 (±0, 2) 4, 5 (±0, 2)
REAR AXLE SHOCK ABSORBER

Number Designation Model 117 Model 156
BA32.25-P-1003-03J Nut, shock absorber to spring control arm Nm 50 50
REAR AXLE SHOCK ABSORBER

Number Designation Model 242 Model 176, 246
BA32.25-P-1003-03J Nut, shock absorber to spring control arm Nm 50 50
SPRING CONTROL ARM

Number Designation Model 117 Model 156
BA35.20-P-1001-01D Self-locking nut, spring control arm to rear axle carrier Stage 1 Nm 50 50
Stage 2 ∠° 90 90
SPRING CONTROL ARM

Number Designation Model 242 Model 176, 246
BA35.20-P-1001-01D Self-locking nut, spring control arm to rear axle carrier Stage 1 Nm 50 50
Stage 2 ∠° 90 90
SPRING CONTROL ARM

Number Designation Model 117 Model 156
BA35.20-P-1002-01D Self-locking nut, spring control arm to wheel carrier Stage 1 Nm 50 50
Stage 2 ∠° 90 90
SPRING CONTROL ARM

Number Designation Model 242 Model 176, 246
BA35.20-P-1002-01D Self-locking nut, spring control arm to wheel carrier Stage 1 Nm 50 50
Stage 2 ∠° 90 90
Fig 3: Extraction And Insertion Tool (246 589 00 43 00)
G10251020Courtesy of MERCEDES-BENZ USA
Fig 4: Hydraulic Hose (Complete) (652 589 00 33 23)
G10251021Courtesy of MERCEDES-BENZ USA
Fig 5: Hand Pump (652 589 00 33 21)
G09982194Courtesy of MERCEDES-BENZ USA
Fig 6: Hollow Piston Cylinder (001 589 51 33 00)
G09982299Courtesy of MERCEDES-BENZ USA
