Remove/install components for exhaust system - AR49.10-P-7100MTA

ENGINE 133 in MODEL 117, 156, 176

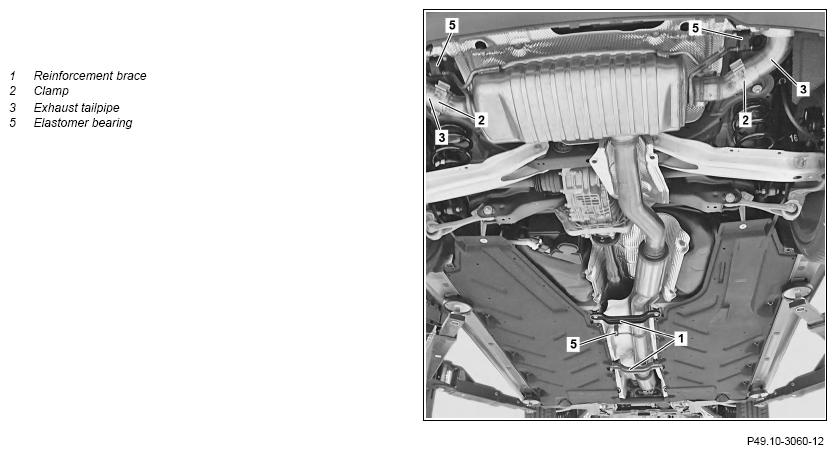

Fig 1: Exhaust System Remove/Install Components (1 Of 2)
G11065692Courtesy of MERCEDES-BENZ USA

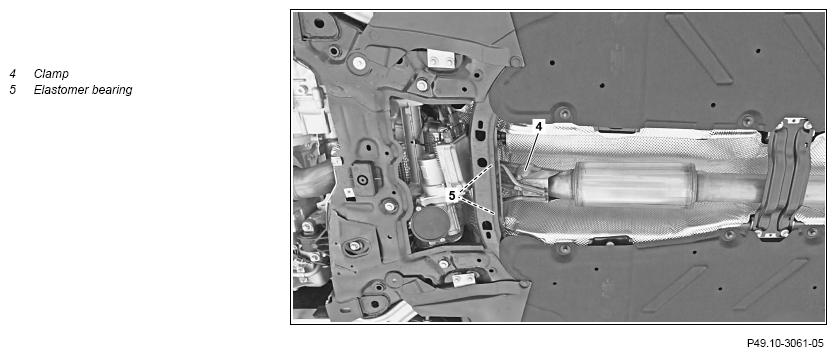

Fig 2: Exhaust System Remove/Install Components (2 Of 2)
G11065693DANGERDANGERDANGERNOTESREMOVINGINSTALLINGINSTALLATION IMPORTANTTORQUE SPECIFICATIONIMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION IMPORTANTIMPORTANTCLEANINSPECTDANGERCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
DANGER Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove bottom engine compartment paneling   AR61.20-P-1105NKB
INSTALLATION IMPORTANTInstallation:  Only install lower engine compartment paneling after the performing an engine test run and leak test.
2 Detach side underfloor paneling and place to one side
3 Mark installation position of the front reinforcement brace (1) and the propeller shaft center support bearing in color on frame floor assembly ENGINE 133 in MODEL 117, 156, 176 with CODE M005 (4MATIC)
TORQUE SPECIFICATION Bolt, propeller shaft center support bearing to frame floor assembly *BA41.40-P-1001-01G
4 Remove reinforcement braces (1) IMPORTANT Fasten the propeller shaft center support bearing after removal of the front reinforcement brace (1) with screw/bolts on frame floor assembly.
TORQUE SPECIFICATION Bolt, propeller shaft center support bearing to frame floor assembly *BA41.40-P-1001-01G
TORQUE SPECIFICATION Bolt, front reinforcement brace to frame floor assembly *BA61.10-P-1002-01H
TORQUE SPECIFICATION Bolt, rear reinforcement brace to frame floor assembly *BA61.10-P-1003-01H
5 Remove clamps (2) on both sides INSTALLATION IMPORTANTInstallation:  Replace clamps (2).
TORQUE SPECIFICATION Clamp, exhaust pipe to rear muffler *BA49.10-P-1023-01AL
6 Remove exhaust tailpipe (3)
7 Disconnect electrical connection of the electrical exhaust flap ENGINE 133 in MODEL 176
8 Remove clamp (4) INSTALLATION IMPORTANTInstallation:  Replace clamp (4).
TORQUE SPECIFICATION Clamp, rear exhaust system to front exhaust system *BA49.10-P-1021-01AL
9 Remove clamp on CAT below and remove intermediate pipe to the front INSTALLATION IMPORTANTInstallation:  Replace clamp if necessary.
TORQUE SPECIFICATION Clamp, front exhaust system to catalytic converter *BA49.10-P-1020-01AL
10 Push exhaust system out of the elastomer bearing (5) and remove exhaust system downwards INSTALLATION IMPORTANTInstallation:  Apply lubricating paste to elastomer bearings (5).
IMPORTANT Helper required.
Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 *BR00.45-Z-1002-06A
CLEAN Clean
11 Remove combustion/corrosion residues at connecting points
12 Check from elastomer bearings (5) for damage; replace if necessary.
13 Install in the reverse order
INSPECT Check
14 Check installation position and unobstructed movement of all components of the exhaust system
DANGER Risk of accident  caused by vehicle starting off on its own when jacked up. Risk of injury  caused by rotating parts when working on running engine or drive train. Ensure that jack stands are in a safe condition. An authorized person must occupy the driver's seat. Wear closed and close-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0008-01A
15 Perform an engine test run and check exhaust system for leaktightness
PROPELLER SHAFT INTERMEDIATE BEARING

Number Designation MODEL 117 MODEL 156
BA41.40-P-1001-01G Bolt, propeller shaft center support bearing to frame floor assembly Nm 30 30
PROPELLER SHAFT INTERMEDIATE BEARING

Number Designation MODEL 176
BA41.40-P-1001-01G Bolt, propeller shaft center support bearing to frame floor assembly Nm 30
EXHAUST SYSTEM

Number Designation ENGINE 133 in MODEL 117 ENGINE 133 in MODEL 156
BA49.10-P-1020-01AL Clamp, front exhaust system to catalytic converter Nm 35 35
EXHAUST SYSTEM

Number Designation ENGINE 133 in MODEL 176
BA49.10-P-1020-01AL Clamp, front exhaust system to catalytic converter Nm 35
EXHAUST SYSTEM

Number Designation ENGINE 133 in MODEL 117 ENGINE 133 in MODEL 156
BA49.10-P-1021-01AL Clamp, rear exhaust system to front exhaust system Nm 35 35
EXHAUST SYSTEM

Number Designation ENGINE 133 in MODEL 176
BA49.10-P-1021-01AL Clamp, rear exhaust system to front exhaust system Nm 35
EXHAUST SYSTEM

Number Designation ENGINE 133 in MODEL 117 ENGINE 133 in MODEL 156
BA49.10-P-1023-01AL Clamp, exhaust pipe to rear muffler Nm 55 55
EXHAUST SYSTEM

Number Designation ENGINE 133 in MODEL 176
BA49.10-P-1023-01AL Clamp, exhaust pipe to rear muffler Nm 55
FRAME FLOOR ASSEMBLY

Number Designation MODEL 117 MODEL 156
BA61.10-P-1002-01H Bolt, front reinforcement brace to frame floor assembly Nm 30 30
FRAME FLOOR ASSEMBLY

Number Designation MODEL 176, 246
BA61.10-P-1002-01H Bolt, front reinforcement brace to frame floor assembly Nm 30
FRAME FLOOR ASSEMBLY

Number Designation MODEL 117 MODEL 156
BA61.10-P-1003-01H Bolt, rear reinforcement brace to frame floor assembly Nm 30 30
FRAME FLOOR ASSEMBLY

Number Designation MODEL 176, 246
BA61.10-P-1003-01H Bolt, rear reinforcement brace to frame floor assembly Nm 30
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 A 000 989 01 60
