Remove/install steering knuckle - AR33.25-P-0400NKB

MODEL 117, 156, 176, 242, 246

MODIFICATION NOTES

14.11.13

Nut, tie rod to steering knuckle

BA46.40-P-1001-01O

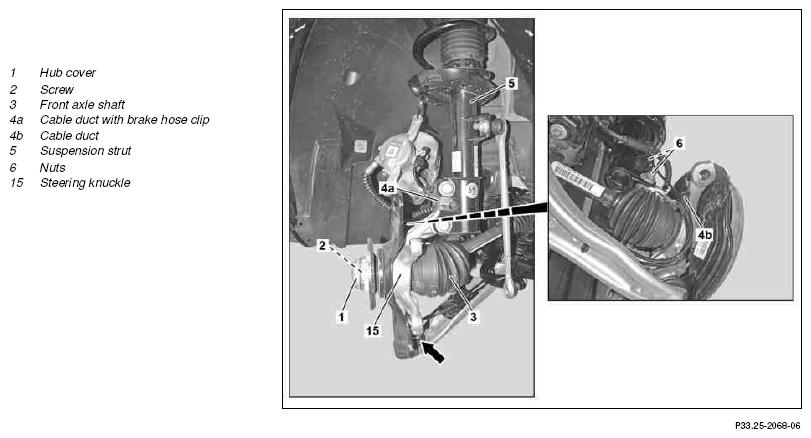

Fig 1: Steering Knuckle Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

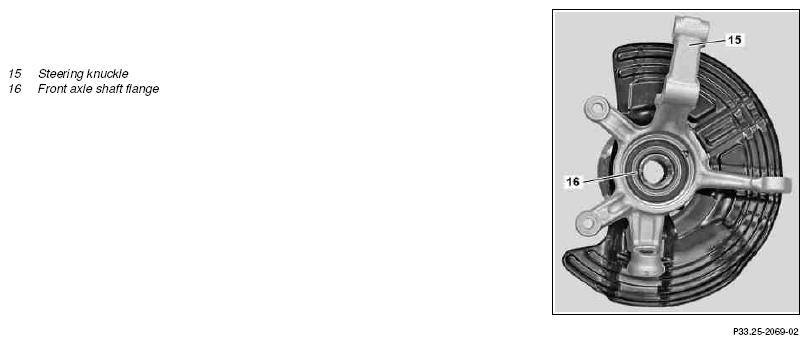

Fig 2: Steering Knuckle Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove left or right front wheel
			AP40.10-P-4050AK
2	Pull off hub cap (1)	Removal and installation tool	Fig 4
3	Remove bolt (2) on front axle shaft (3)	The bolt (2) torque must not be exceeded. Otherwise the angular contact ball bearing will be damaged. Replace bolt (2).
		Bolt, front axle shaft to front axle shaft flange	*BA33.30-P-1001-07D
4	Remove brake disk		AR42.10-P-0220NKB
5	Unhook electrical lines from cable duct with brake hose clip (4a)
6	Detach cable duct with brake hose clip (4a) from suspension strut (5)	Pry out plastic rivets and detach cable duct with brake hose clip (4a).
7	Detach rpm sensor on front axle at left or right with cable duct (4b) and place to one side	Bolt, rpm sensor to steering knuckle	*BA42.30-P-1001-01F
8	Detach tie rod		AR46.40-P-0200-02CW
		Nut, tie rod to steering knuckle	*BA46.40-P-1001-01O
		Puller	Figure
		Press	Figure
9	Press supporting joint (15) from steering knuckle		AR33.20-P-0440-01NKB
		Nut, supporting ball joint/transverse control arm to steering knuckle	*BA33.15-P-1005-01F
		Press	Figure
		Puller	Figure
10	Release front axle shaft (3) from front axle shaft flange (16)	Do not knock seized front axle shaft (3) out of front axle shaft flange (16). Otherwise the angular contact ball bearing will be damaged. If the front axle shaft (3) is difficult to remove: ↓
		Press front axle shaft (3) out of front axle shaft flange (16)	AR33.30-P-0620-04GC
		Spray Teflon, article no. K0007.1	*BR00.45-Z-1041-06A
		Extraction and insertion tool	Fig 6
11	Unscrew nuts (6) on suspension strut (5) and remove bolts	Nut, suspension strut to steering knuckle	*BA32.25-P-1003-04J
12	Pull front axle shaft (3) out of front axle shaft flange (16) and remove steering knuckle (15)	Do not pull front axle shaft (3) too far out of the inner constant velocity joint. Otherwise the inner constant velocity joint will be damaged. Do not damage rubber boot (arrow) on supporting ball joint. Otherwise the transverse control arm has to be replaced.
	Check
13	Check condition of rubber boot (arrow) on supporting ball joint
			AP33.20-P-3353AK
14	Install in the reverse order
15	Perform wheel alignment check		AR40.20-P-0200NKB

SUSPENSION STRUTS

Number	Designation			MODEL 117, 176, 246	MODEL 156
BA32.25-P-1003-04J	Nut, suspension strut to steering knuckle	Stage 1	Nm	110	110
		Stage 2	∠°	90	90

SUSPENSION STRUTS

Number	Designation			MODEL 242
BA32.25-P-1003-04J	Nut, suspension strut to steering knuckle	Stage 1	Nm	110
		Stage 2	∠°	90

TRAILING ARMS, WISHBONES

Number	Designation				MODEL 117	MODEL 242
BA33.15-P-1005-01F	Nut, supporting ball joint/transverse control arm to steering knuckle	M14	Stage 1	Nm	65	65
			Stage 2	∠°	45	45

TRAILING ARMS, WISHBONES

Number	Designation				MODEL 156, 176, 246
BA33.15-P-1005-01F	Nut, supporting ball joint/transverse control arm to steering knuckle	M14	Stage 1	Nm	65
			Stage 2	∠°	45

DRIVE SHAFT

Number	Designation			MODEL 117	MODEL 156
BA33.30-P-1001-07D	Bolt, front axle shaft to front axle shaft flange	Stage 1	Nm	120	120
		Stage 2		losen	Loosen
		Stage 3	Nm	150	150
		Stage 4	∠°	45	45

DRIVE SHAFT

Number	Designation			MODEL 242	MODEL 176, 246
BA33.30-P-1001-07D	Bolt, front axle shaft to front axle shaft flange	Stage 1	Nm	120	120
		Stage 2		losen	losen
		Stage 3	Nm	150	150
		Stage 4	∠°	45	45

FRONT AXLE RPM SENSOR

Number	Designation		MODEL 117	MODEL 156
BA42.30-P-1001-01F	Bolt, rpm sensor to steering knuckle	Nm	8	8

FRONT AXLE RPM SENSOR

Number	Designation		MODEL 176, 246	MODEL 242
BA42.30-P-1001-01F	Bolt, rpm sensor to steering knuckle	Nm	8	8

TIE ROD

Number	Designation			MODEL 117	MODEL 156
BA46.40-P-1001-01O	Nut, tie rod to steering knuckle	Stage 1	Nm	50	50
		Stage 2	∠°	90	90

TIE ROD

Number	Designation			MODEL 242	MODEL 176, 246
BA46.40-P-1001-01O	Nut, tie rod to steering knuckle	Stage 1	Nm	50	50
		Stage 2	∠°	90	90

Fig 3: Puller (246 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Removal And Installation Tool (116 589 22 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Puller (221 589 05 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1041-06A	Spray Teflon, article no. K0007.1	Carl Roth GmbH & Co KG
