Replace all rubber bushings at wheel carrier - AR35.20-P-0123NKB
MODEL 117, 156, 176 with ENGINE 270, 607, 651
MODEL 242, 246
Shown on elastomer bearing (2) of spring control arm
| Remove | |||
| 1 | Remove right or left spring control arm | When replacing elastomer bearing (2) of spring control arm | |
| AR35.20-P-0114NKB | |||
| 2 | Remove right or left tie rod | When replacing elastomer bearing (2) of tie rod | |
| AR35.20-P-0109NKB | |||
| 3 | Remove right or left camber strut | When replacing elastomer bearing (2) of camber strut | |
| AR35.20-P-0110NKB | |||

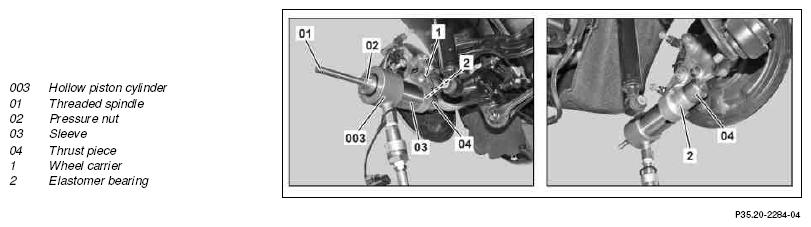

| 4 | Position threaded spindle (01) with thrust nut (02), hollow-piston cylinder (003), sleeve (03) and thrust piece (04) on wheel carrier (1) and elastomer bearing (2) | Figure | |
| Figure | |||
| Figure | |||
| Figure | |||
| 5 | Press elastomer bearing (2) out of wheel carrier (1) | ||
| Install | |||
| 6 | Position threaded spindle (01) with thrust nut (02), hollow-piston cylinder (003) and sleeve (03) on wheel carrier (1) and mount elastomer bearing (2) with thrust piece (04) on threaded spindle (01) | The elastomer bearing (2) and, possibly, the wheel carrier (1) can otherwise be damaged. |
|
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||

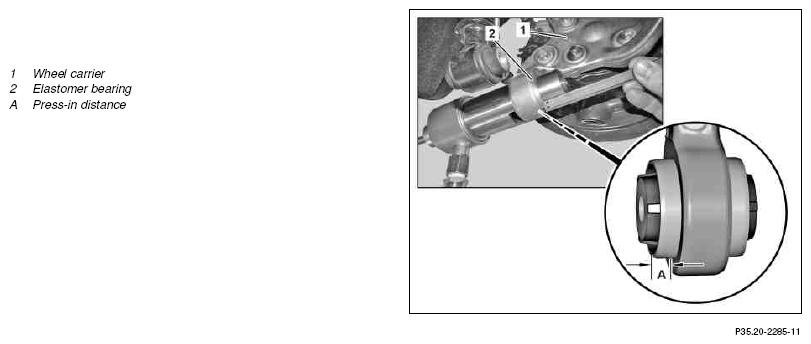

| 7 | Press elastomer bearing (2) uniformly into wheel carrier (1) | ||
| Press-in dimension for spring control arm rubber bushing in wheel carrier | *BE35.20-P-1002-03A | ||
| Press-in dimension for tie rod rubber bushing in wheel carrier | *BE35.20-P-1003-03A | ||
| Press-in dimension for camber strut rubber bushing in wheel carrier | *BE35.20-P-1004-03A | ||
| 8 | Remove threaded spindle (01) with thrust nut (02), hollow-piston cylinder (003), sleeve (03) and thrust piece (04) from wheel carrier (1) | ||
| 9 | Install right or left camber strut | When replacing elastomer bearing (2) of camber strut | |
| AR35.20-P-0110NKB | |||
| 10 | Install right or left tie rod | When replacing elastomer bearing (2) of tie rod | |
| AR35.20-P-0109NKB | |||
| 11 | Install right or left spring control arm | When replacing elastomer bearing (2) of spring control arm | |
| AR35.20-P-0114NKB |
CHECK VALUES FOR REAR AXLE RUBBER BUSHINGS
| Number | Designation | MODEL 117 (except 117.352) | MODEL 156 | |
|---|---|---|---|---|
| BE35.20-P-1002-03A | Press-in dimension for spring control arm rubber bushing in wheel carrier | mm | 4, 8 (±0, 2) | 0 (±0, 2) |
CHECK VALUES FOR REAR AXLE RUBBER BUSHINGS
| Number | Designation | MODEL 176 (except 176.052), 246 | MODEL 242 | |
|---|---|---|---|---|
| BE35.20-P-1002-03A | Press-in dimension for spring control arm rubber bushing in wheel carrier | mm | 4, 8 (±0, 2) | 4, 8 (±0, 2) |
CHECK VALUES FOR REAR AXLE RUBBER BUSHINGS
| Number | Designation | MODEL 117 (except 117.352) | MODEL 156 | |
|---|---|---|---|---|
| BE35.20-P-1003-03A | Press-in dimension for tie rod rubber bushing in wheel carrier | mm | 9, 2 (±0, 2) | 3, 5 (±0, 2) |
CHECK VALUES FOR REAR AXLE RUBBER BUSHINGS
| Number | Designation | MODEL 176 (except 176.052), 246 | MODEL 242 | |
|---|---|---|---|---|
| BE35.20-P-1003-03A | Press-in dimension for tie rod rubber bushing in wheel carrier | mm | 9, 2 (±0, 2) | 9, 2 (±0, 2) |
CHECK VALUES FOR REAR AXLE RUBBER BUSHINGS
| Number | Designation | MODEL 117 (except 117.352) | MODEL 156 | |
|---|---|---|---|---|
| BE35.20-P-1004-03A | Press-in dimension for camber strut rubber bushing in wheel carrier | mm | 8, 3 (±0, 2) | 3, 5 (±0, 2) |
CHECK VALUES FOR REAR AXLE RUBBER BUSHINGS
| Number | Designation | MODEL 176 (except 176.052), 246 | MODEL 242 | |
|---|---|---|---|---|
| BE35.20-P-1004-03A | Press-in dimension for camber strut rubber bushing in wheel carrier | mm | 8, 3 (±0, 2) | 8, 3 (±0, 2) |
