Disassemble/Assemble Transmission Housing - AR27.40-P-0510EWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0/1
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Disassemble | |||
| 1.1 | Remove transmission housing (1) from torque converter housing. | Transmission 725.0 (except 725.007/017/037/047), 725.103 | |
| AR27.50-P-0601EWM | |||
| 1.2 | Remove transmission housing (1) from adapter housing. | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 Transmission 725.047 Transmission 725.1 (except 725.103) |
|
| Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037/047 |
AR27.40-P-0560MRD | ||
| Transmission 725.1 (except 725.103) | AR27.40-P-0560EWO | ||

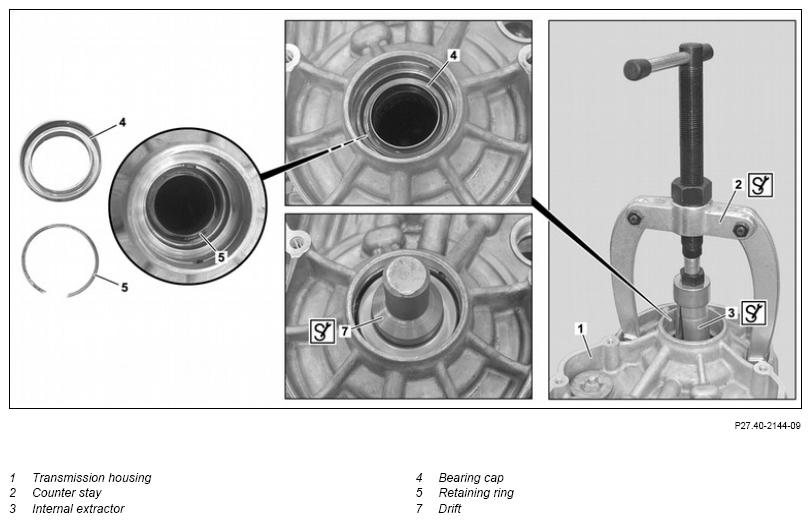

| 2 | Remove bearing cap (4). | Fig 3 | |
| Fig 2 | |||
| 3 | Remove retainer ring (5). | ||

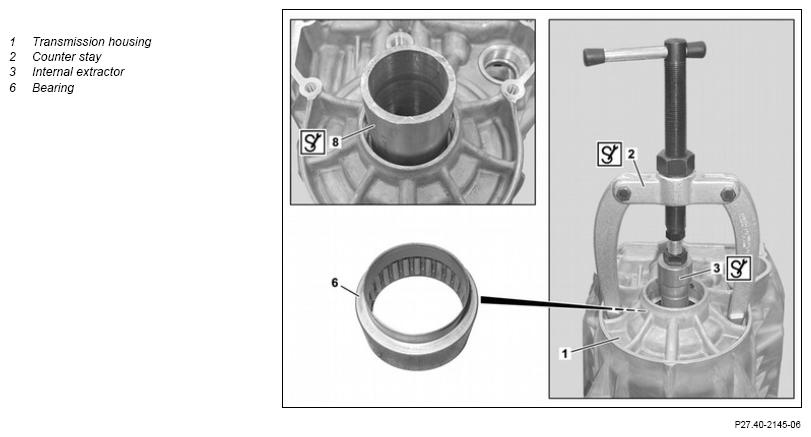

| 4 | Remove bearing (6). | Fig 3 | |
| Fig 2 | |||
| 5 | Remove parking lock mechanism. | AR27.60-P-0950EWM | |
| 6 | Remove multidisk brake B05 and multidisk brake B06. | AR27.50-P-0616EWM | |
| 7 | Check bearing (6) for damage. | If problems exist, ↓ replace bearing (6) and output shaft with parking lock gear and multiplate clutch K27. |
|
| AR27.50-P-0614EWM | |||
| Assemble | |||
| 8 | Install multidisk brake B05 and multidisk brake B06. | AR27.50-P-0616EWM | |
| 9 | Install parking lock mechanism. | AR27.60-P-0950EWM | |
| 10 | Check transmission housing (1) in area of bearing (6) for score marks and recesses. | If problems exist, ↓ Grind down the transmission housing (1) slightly using fine-grained emery paper. |
|
| 11 | Install bearing (6). | Fig 4 | |
| 12 | Install retaining ring (5). | ||
| 13 | Install bearing cap (4). | Fig 1 | |
| 14.1 | Install transmission housing (1) on torque converter housing. | Transmission 725.0 (except 725.007/017/037/047), 725.103 | |
| AR27.50-P-0601EWM | |||
| 14.2 | Install transmission housing (1) on adapter housing. | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 Transmission 725.047 Transmission 725.1 (except 725.103) |
|
| Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037/047 |
AR27.40-P-0560MRD | ||
| Transmission 725.1 (except 725.103) | AR27.40-P-0560EWO |
