Remove/Install Park Pawl Mechanism - AR27.60-P-0950EWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0/1
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Fasten transmission onto assembly stand. | Transmission 725.007/017/037/047 | AR27.10-P-0600-01MRD |
| Transmission 725.0 (except 725.007/017/037/047) | AR27.10-P-0600-01EWM | ||
| Transmission 725.1 | AR27.10-P-0600-01EWO | ||
| 000 588 00 31 00 Assembly stand for cars | Boom crane |
WS01.00-Z-3028KOB | |
Assembly device |
Fig 2 | ||
Adapter |
Fig 6 | ||
Assembly device |
Fig 4 | ||
Support fixture |
Fig 5 | ||
| Fig 3 | |||
| 2 | Remove fully integrated transmission control controller unit. | Transmission 725.1 in model 206 | AR27.19-P-0211WTD |
| Transmission 725.0 in model 166, 167, 172, 205, 207, 212, 213, 217, 218, 222, 231, 238, 253, 257, 290, 292 Transmission 725.0 in model 463 as of model year 2019 Transmission 725.1 in model 213, 238, 257 |
AR27.19-P-0200EWM | ||
| Transmission 725.0/1 in model 223 Even the smallest of foreign particles in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. |
AR27.19-P-0200S | ||
| 3 | Remove rear engine mounting bracket. | *BA27.10-P-1011-04H | |

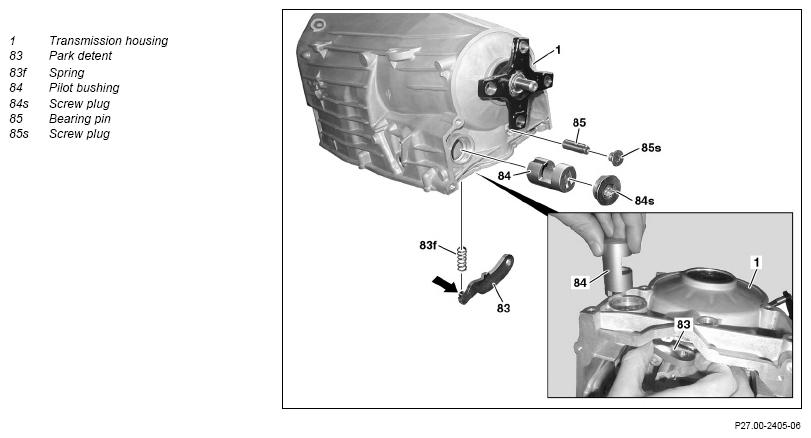

| 4 | Remove screw plug (85s). | *BA27.10-P-1014-04H | |
| 5 | Pull out the bearing pin (85) using a bar magnet. | ||
| 6 | Remove screw plug (84s). | *BA27.10-P-1014-04H | |
| 7 | Press the park detent (83) as far as possible against the spring (83f) and pull out the pilot bushing (84) using a bar magnet. | ||
| 8 | Remove park detent (83) together with spring (83f). | ||
| 9 | Install in the reverse order. |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0/1 | ||
|---|---|---|---|---|
| BA27.10-P-1011-04H | Screw/bolt, rear bracket to transmission | Stage 1 | Nm | 10 |
| Stage 2 | ∠° | 90 | ||
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0/1 | ||
|---|---|---|---|---|
| BA27.10-P-1014-04H | Screw plug to transmission, rear | M16 | Nm | 22 |
| M36 | Nm | 70 | ||
