Remove/Install Multidisk Clutch K27 With Output Shaft And Parking Lock Gear - AR27.50-P-0614EWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0/1
Shown on transmission 725.0 (except 725.007/017/037/047)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||

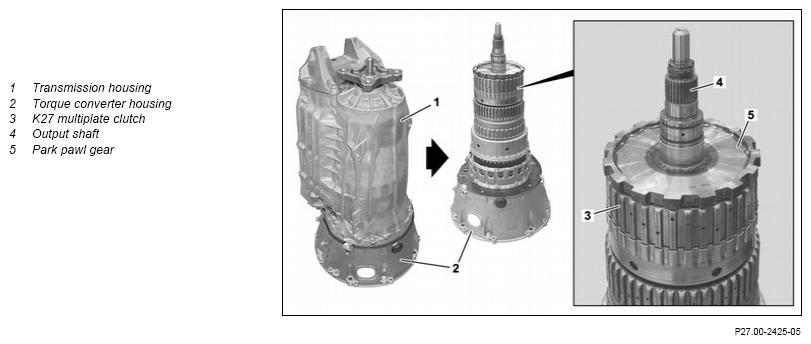

| 1.1 | Remove transmission housing (1) from torque converter housing (2). | Transmission 725.0 (except 725.007/017/037/047), 725.103 | |
| AR27.50-P-0601EWM | |||
| 1.2 | Remove transmission housing (1) from adapter housing. | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 Transmission 725.047 Transmission 725.1 (except 725.103) |
|
| Transmission 725.1 (except 725.103) | AR27.40-P-0560EWO | ||
| Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037/047 |
AR27.40-P-0560MRD | ||
| 2 | Remove multiplate clutch K27 (3) with output shaft (4) and parking lock gear (5). | ||
| Install | |||
| 3 | Place multiplate clutch K27 (3) with output shaft (4) and parking lock gear (5). | ||
| 4 | Measure clearance of multiplate clutch K27 (3) and adjust if necessary. | AR27.51-P-0550-04EWM | |
Workshop press |
|||
| Clearance in multidisk clutch K27 | *BE27.51-P-1004-01E | ||
| Fig 3 | |||
| Fig 2 | |||
| Fig 1 | |||
| Fig 4 | |||
| 5.1 | Install transmission housing (1) on torque converter housing (2). | Transmission 725.0 (except 725.007/017/037/047), 725.103 | |
| AR27.50-P-0601EWM | |||
| 5.2 | Install transmission housing (1) on adapter housing. | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 Transmission 725.047 Transmission 725.1 (except 725.103) |
|
| Transmission 725.1 (except 725.103) | AR27.40-P-0560EWO | ||
| Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037/047 |
AR27.40-P-0560MRD |
ADJUSTMENT VALUES FOR MULTIDISK CLUTCH/MULTIDISK BRAKE
| Number | Designation | Transmission 725.0/1 | |||
|---|---|---|---|---|---|
| BE27.51-P-1004-01E | Clearance in multidisk clutch K27 | Contact force for clearance adjustment | F1 | N | 600 |
| Number of internal plates | 3 | mm | 1, 8...2, 0 | ||
| 4 | mm | 2, 2...2, 4 | |||
| 5 | mm | 2, 6...2, 8 | |||
| 6 | mm | 2, 9...3, 1 | |||
| 7 | mm | 3, 1...3, 3 | |||
