Detach/Attach Transmission Housing On Adapter Housing - AR27.40-P-0560MRD
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Transmission 725.037/047
Shown on transmission 725.007
Shown on transmission 725.007
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||
| 1 | Detach electric machine from transmission. | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037/047 |
|
| Transmission 725.007 in model 213.050 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 in model 213.016/053/153/155/216/253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.017 in model 222.173 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 in model 167.117/154/317/354 Transmission 725.047 in model 213.054 |
AR08.10-P-0002OLC | ||
| Transmission 725.017/047 in model 205.013/053/054/213/253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.047 in model 253.311/353/911/953 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR08.10-P-0002OLG | ||

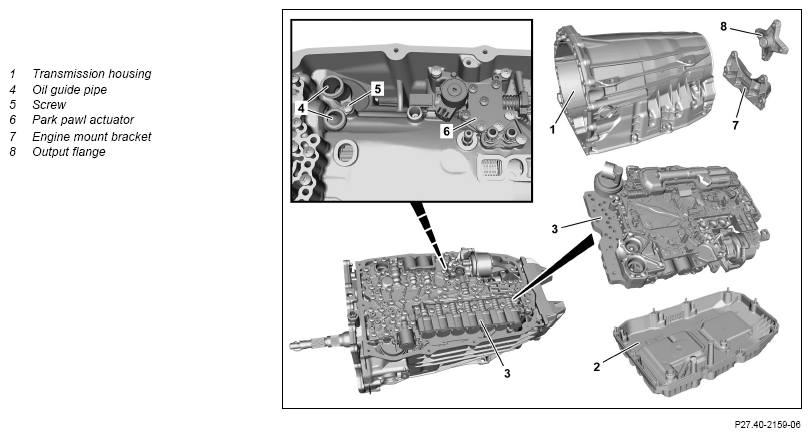

| 2 | Remove park pawl actuator (6). | AR27.60-P-0956EWM | |
| 3 | Remove screw (5) and remove plain couplers (4). | ||
| 4 | Remove rear engine mount bearing bracket (7). | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
|
| 5 | Remove radial shaft sealing ring (9). | Transmission 725.007 in model 213.050 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.017 in model 213.053 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) except code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.40-P-0205OLC |
| Transmission 725.017 in model 222.173 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) except code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.40-P-0205LFH | ||
| Transmission 725.047 in model 205.054, 213.011/054/211, 253.311/353/911/953 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.40-P-0206EWM | ||
| Transmission 725.037 in model 167.154/354 with engine 274.9 | AR27.40-P-0206MSC | ||
| Transmission 725.037 in model 167.117/317 with engine 654.9 | AR27.40-P-0206OID | ||

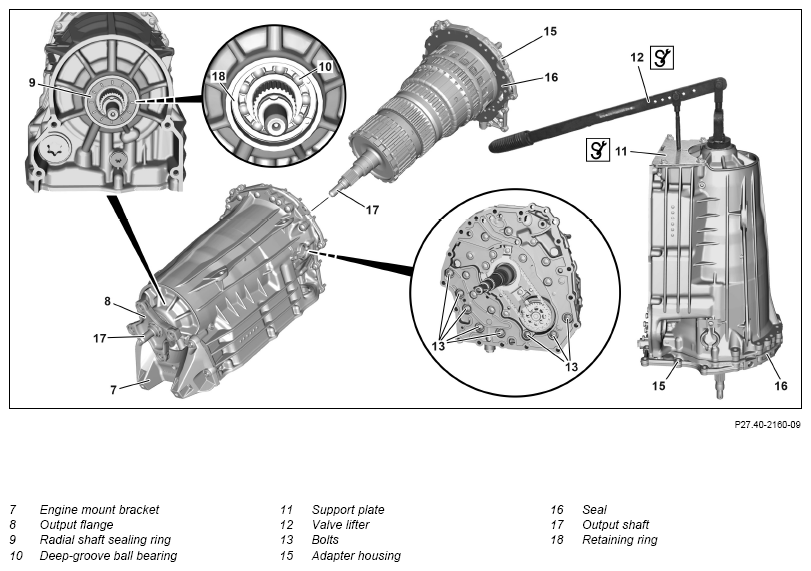

| 6 | Detach retaining ring (18) and remove deep-groove ball bearing (10). | AR27.50-P-0601-01EWM | |
| Fig 4 | |||
| Fig 5 | |||
| 7 | Install support plate (11) and valve lifter (12) on transmission housing (1). | Fig 6 | |
| Fig 3 | |||
| 8 | Position transmission vertically. | ||
| 9 | Unscrew bolts (13). | ||
| 10 | Detach transmission housing (1) from adapter housing (15). | Fig 3 | |
| 11 | Detach support plate (11) and valve lifter (12) from transmission housing (1). | Fig 6 | |
| Fig 3 | |||
| 12 | Remove multiplate clutch K27. | When replacing transmission housing (1). | |
| AR27.50-P-0614EWM | |||
| Install | |||
| 13 | Measure end play of transmission housing (1) and correct if necessary. | When replacing transmission housing (1). | |
| AR27.50-P-0580-01EWM | |||
| Fig 7 | |||
| Fig 1 | |||
| Fig 2 | |||
| 14 | Install multiplate clutch K27. | When replacing transmission housing (1). | |
| AR27.50-P-0614EWM | |||
| 15 | Align disks in transmission housing (1). | ||
| 16 | Place transmission housing (1) on adapter housing (15). | Place the transmission housing (1) carefully. Otherwise, the disks in the disk pack may break. |
|
| 17 | Push output flange (8) onto output shaft (17). | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
|
| 18 | By abruptly turning the output shaft (17) while simultaneously lifting the transmission housing (1), bring transmission housing (1) gradually closer to seal (16) of adapter housing (15). | Do not pull transmission housing (1) closer to adapter housing (15) using screws/bolts (13). Otherwise damage will occur. The transmission housing (1) must lie completely flush, without gaps, against the seal (16) on the adapter housing (15). Otherwise damage will occur. |
|
| 19 | Tighten new screws (13). | *BA27.10-P-1002-04H | |
| 20 | Detach output flange (8) from output shaft (17). | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
|
| 21 | Drive deep-groove ball bearing (10) into transmission housing (1) using a suitable drift and attach retaining ring (18). | The plastic cage must face with the closed side towards the park pawl gear. Leaks can occur on the transmission otherwise. |
|
| 22 | Install new radial shaft sealing ring (9). | Transmission 725.007 in model 213.050 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.017 in model 213.053 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) except code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.40-P-0205OLC |
| Transmission 725.017 in model 222.173 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) except code M005 (Vehicles with 4MATIC/all-wheel drive) | AR27.40-P-0205LFH | ||
| Transmission 725.047 in model 205.054, 213.011/054/211, 253.311/353/911/953 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AR27.40-P-0206EWM | ||
| Transmission 725.037 in model 167.154/354 with engine 274.9 | AR27.40-P-0206MSC | ||
| Transmission 725.037 in model 167.117/317 with engine 654.9 | AR27.40-P-0206OID | ||
| 23 | Attach rear engine mount bracket (7) with new screws. | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
|
| *BA27.10-P-1011-04H | |||
| 24 | Check plain couplers (4), sealing rings and sealing lips for damage. | If damage is found, ↓ Replace oil guide pipes (4), sealing rings and sealing lips. |
|
| 25 | Install plain couplers (4) and screw in screw (5). | *BA27.10-P-1013-04H | |
| 26 | Install park pawl actuator (6). | AR27.60-P-0956EWM | |
| 27 | Attach electric machine to transmission. | Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037/047 |
|
| Transmission 725.007 in model 213.050 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Transmission 725.017 in model 213.016/053/153/155/216/253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.017 in model 222.173 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.037 in model 167.117/154/317/354 Transmission 725.047 in model 213.054 |
AR08.10-P-0002OLC | ||
| Transmission 725.017/047 in model 205.013/053/054/213/253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Transmission 725.047 in model 253.311/353/911/953 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR08.10-P-0002OLG |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0/1 | |||
|---|---|---|---|---|---|
| BA27.10-P-1002-04H | Screw/bolt, torque converter housing/adapter housing to transmission housing | M8 | Stage 1 | Nm | 10 |
| Stage 2 | 90 | ||||
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0/1 | ||
|---|---|---|---|---|
| BA27.10-P-1011-04H | Screw/bolt, rear bracket to transmission | Stage 1 | Nm | 10 |
| Stage 2 | ∠° | 90 | ||
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0/1 | |
|---|---|---|---|
| BA27.10-P-1013-04H | Screw/bolt, oil guide pipe to transmission housing | Nm | 4 |
