Detach/Attach Automatic Transmission Housing On Torque Converter Housing. - AR27.50-P-0601EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0 (except 725.007/017/037/047)

MODIFICATION NOTES

20.11.2019 Document completely revised.
23.04.2020 Special tool 725 589 02 14 00 sleeve added to document. Document and graphic adapted. AR27.50-P-0580-01EWM

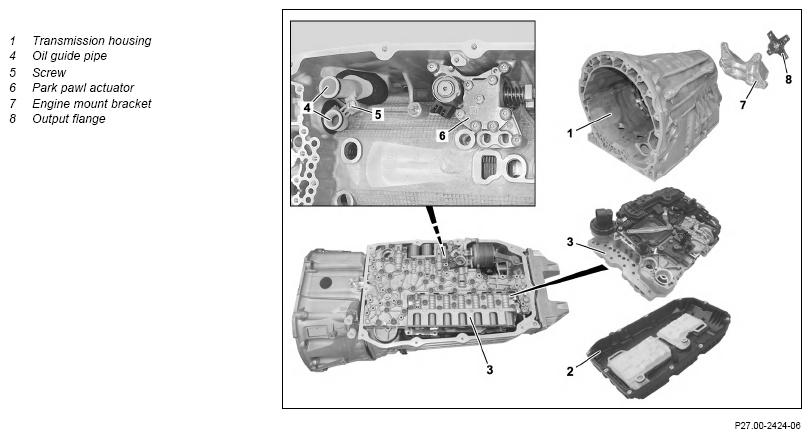

G14546797Courtesy of MERCEDES-BENZ USA

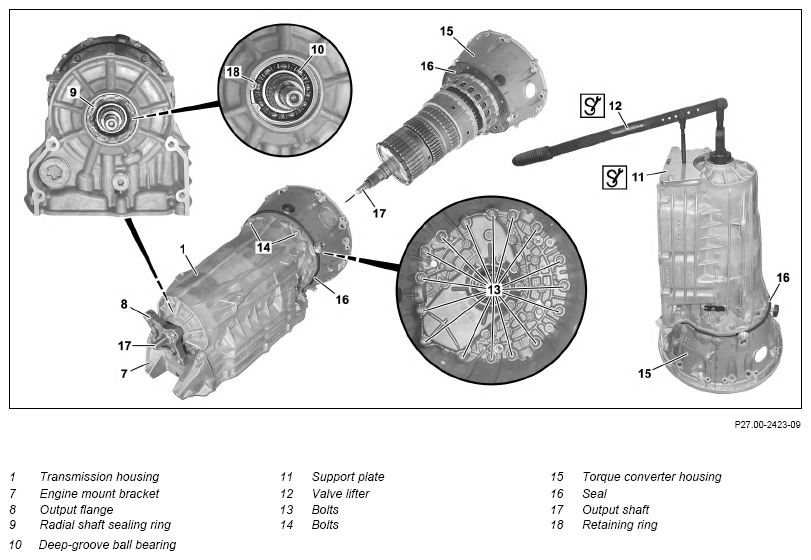

G14546798Courtesy of MERCEDES-BENZ USA

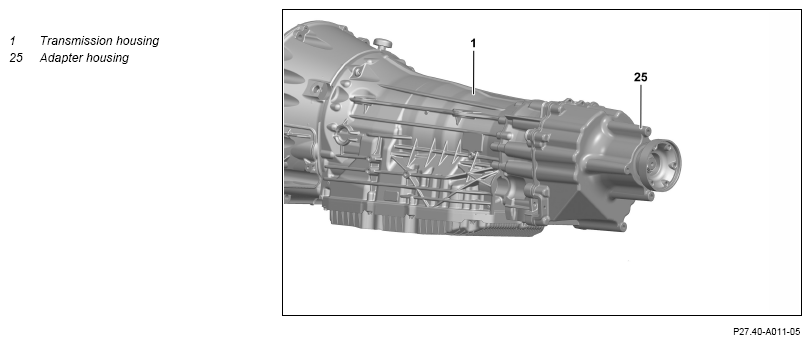

Fig 1: Automatic Transmission Housing Components Location - Transmission 725.0 (except 725.007/017/037/047)

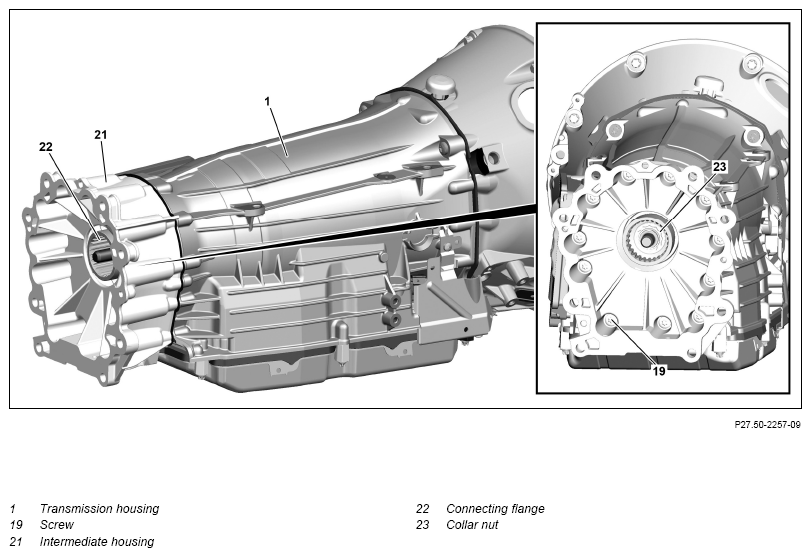

G14546799Courtesy of MERCEDES-BENZ USA

Shown on MODEL 292

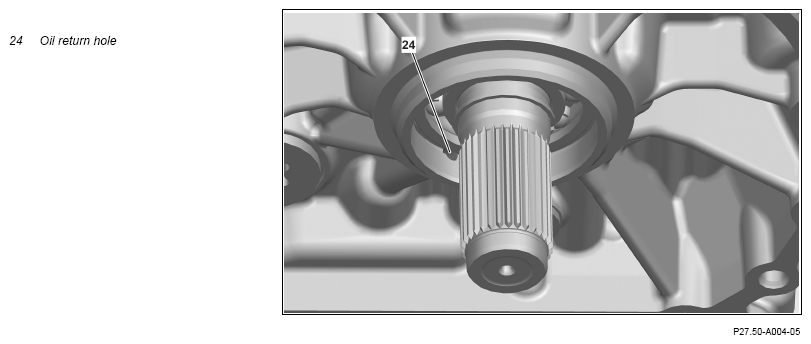

G14546800Courtesy of MERCEDES-BENZ USA
G14546801Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
Notice Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice Notes on threaded connections with aluminum screws/bolts   AH00.00-P-0006-01RM
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1 Fasten transmission onto assembly stand.   AR27.10-P-0600-01EWM
REFER TO SPECIAL TOOLS 000 588 00 31 00 Assembly stand for cars IMPORTANTCommercially available devices/tools
Workshop crane		 WS01.00-Z-3028KOB
    SPECIAL TOOL Support fixture Fig 2
    SPECIAL TOOL Lifting device Fig 5
2 Remove park pawl actuator (6).   AR27.60-P-0956EWM
3 Remove screw (5) and remove plain couplers (4).
4.1 Remove output flange (8). Transmission 725.0 (except 725.007/017/047) in model 172, 231
Transmission 725.0 (except 725.007/017/047) in model 205, 207, 212, 213, 217, 218, 222, 238, 253, 257, 290 except code M005 (Vehicles with 4MATIC/all-wheel drive)
      AR27.50-P-0620-02W
    SPECIAL TOOL Puller, two-arm Fig 6
    SPECIAL TOOL Socket wrench bit Fig 13
    SPECIAL TOOL Pin wrench Fig 4
4.2 Remove transfer case. Transmission 725.0 (except 725.007/017/037/047) in model 167 (except 167.148), 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 (except 725.007/017/047) in model 166 (except 166.006), 292
Transmission 725.0 (except 725.007/017/047) in model 463 as of model year 2019
    Transmission 725.0 (except 725.007/017/037/047) in model 167 with engine 654.9, 656 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100OID
    Transmission 725.0 (except 725.007/017/047) in model 167 with engine 176, 177, 256.9 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MSC
    Transmission 725.0 (except 725.007/017/047) in model 213.088/089/288/289 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MNE
    Transmission 725.0 (except 725.017/047/09) in model 205, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100LWX
    Transmission 725.0 (except 725.017/09) in model 217, 218, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100AVG
    Transmission 725.09 in model 217, 222 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MNM
    Transmission 725.0 (except 725.007/017/047) in model 213 (except 213.088/089/288/289), 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100OLC
    Transmission 725.0 (except 725.007/017/047) in model 166 (except 166.006/058), 292 AR28.10-P-0100GQ
    Transmission 725.09 in model 253 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MNG
    Transmission 725.09 in model 290 with engine 177.9 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MNI
    Transmission 725.0 (except 725.007/017/047) in model 257, 290 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 in model 257 with engine 264 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR28.10-P-0100MSA
    Transmission 725.0 (except 725.007/017/047) in model 257 with engine 656 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100OIB
    Transmission 725.0 (except 725.007/017/047) in model 463 with engine 176 as of model year 2019
Transmission 725.0 (except 725.007/017/047) in model 463 with engine 177 as of model year 2019		 AR28.10-P-0100XGA
    Transmission 725.0 (except 725.007/017/037/047) in model 167 (except 167.148) with engine 264 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MRK
    Transmission 725.0 (except 725.007/017/047) in model 463 with engine 656 as of model year 2019 AR28.10-P-0100XGE
    Transmission 725.0 (except 725.007/017/047) in model 463 with engine 264 as of model year 2019 AR28.10-P-0100XGF
    Transmission 725.0 in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100S
4.3 Remove adapter housing (25). Transmission 725.0 (except 725.007/017/047) in model 166.006, 167.148
5 Unscrew screws (19) and remove intermediate housing (21) from transmission housing (1). Transmission 725.0 (except 725.007/017/037/047) in model 166, 167, 292
6 Unscrew collar nut (23) and remove connecting flange (22). Transmission 725.0 (except 725.007/017/037/047) in model 166, 167, 292
7 Remove radial shaft sealing ring (9). Transmission 725.0 (except 725.007/017/037/047)
    Transmission 725.0 (except 725.007/017/037/047) in model 463 as of model year 2019 AR27.40-P-0206XGA
    Transmission 725.0 (except 725.007/017/037/047) in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0206S
    Transmission 725.0 (except 725.007/017/037/047) in model 167 with engine 654.9, 656 AR27.40-P-0206OID
    Transmission 725.0 (except 725.007/017/037/047) in model 167 with engine 176, 177
Transmission 725.0 (except 725.007/017/047) in model 167 (except 167.148) with engine 264
Transmission 725.0 (except 725.007/017/047) in model 167 with engine 256.9		 AR27.40-P-0206MSC
    Transmission 725.0 (except 725.007/017/047) in model 257, 290 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205MSA
    Transmission 725.0 (except 725.007/017/047) in model 172 with engine 274
Transmission 725.0 (except 725.007/017/047) in model 172 with engine 276
Transmission 725.0 (except 725.007/017/047) in model 172 with engine 651
Transmission 725.0 (except 725.007/017/047) in model 231 with engine 276
Transmission 725.0 (except 725.007/017/047) in model 231 with engine 278		 AR27.40-P-0205RK
    Transmission 725.0 (except 725.017/047) in model 205, 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205LW
    Transmission 725.0 (except 725.007/017/047) in model 207, 212, 218 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205EWM
    Transmission 725.0 (except 725.007/017/047) in model 166.006 AR27.40-P-0205GN
    Transmission 725.0 (except 725.007/017) in model 217, 222 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205LFH
    Transmission 725.0 (except 725.007/017/047) in model 213, 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205OLC
    Transmission 725.0 (except 725.007/017/047) in model 166 (except 166.006), 292 AR27.40-P-0206GQ
    Transmission 725.0 (except 725.007/017/047) in model 205, 213, 217, 218, 222, 238, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0206EWM
    Transmission 725.0 (except 725.007/017/047) in model 290 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0206MNI
    Transmission 725.0 (except 725.007/017/047) in model 257 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 (except 725.007/017/047) in model 257 with engine 264 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR27.40-P-0206MSA
    Transmission 725.0 (except 725.007/017/047) in model 257 with engine 656 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0206OIB
    Transmission 725.0 (except 725.007/017/047) in model 167.148 with engine 264 AR27.40-P-0205MRK
8 Detach retaining ring (18) and remove deep-groove ball bearing (10).   AR27.50-P-0601-01EWM
    SPECIAL TOOL Puller Fig 12
    SPECIAL TOOL Collet chuck Fig 11
9 Remove rear engine mount holder (7). Transmission 725.0 (except 725.007/017/02/04/05/09) in model 172, 205, 207, 212, 213, 217, 218, 222, 231, 238, 253, 257
10 Attach support plate (11) and valve lifter (12). SPECIAL TOOL Valve lifter Fig 10
    SPECIAL TOOL Support plate Fig 8
11 Remove screws (13, 14). NOTES Position transmission vertically downward at front.
Otherwise, the transmission housing (1) falls down after removing the last screws (13, 14).
12 Remove transmission housing (1) from torque converter housing (15). SPECIAL TOOL Valve lifter Fig 10
13 Remove multiplate clutch K27. When replacing transmission housing (1).
      AR27.50-P-0614EWM
14 Remove support plate (11) and valve lifter (12). SPECIAL TOOL Valve lifter Fig 10
    SPECIAL TOOL Support plate Fig 8
  Install
15 Measure end play of transmission housing (1) and correct if necessary. When replacing transmission housing (1).
      AR27.50-P-0580-01EWM
    IMPORTANT There are two transmission housing variants with different diameters (64 mm and 62 mm).
    SPECIAL TOOL Sleeve Fig 14
    SPECIAL TOOL Device Fig 3
    SPECIAL TOOL Drift Fig 9
    SPECIAL TOOL Parallel support Fig 7
16 Install multiplate clutch K27. When replacing transmission housing (1). AR27.50-P-0614EWM
17 Align disks in transmission housing (1).
18 Place transmission housing (1) on torque converter housing (15). NOTES Place the transmission housing (1) carefully.
Otherwise, the disks in the disk pack may break.
19 Insert output flange (8) or connecting flange (22) into power output shaft (17).
20 Move transmission housing (1) gradually closer to seal (16) of torque converter housing (15) by abruptly turning the output shaft (17) and simultaneously lifting the transmission housing (1). NOTES The transmission housing (1) must make full contact without any gaps with the seal (16) on the torque converter housing (15).
Otherwise leaks may occur.
NOTES Never pull the transmission housing (1) by the screws/bolts (13, 14) onto the torque converter housing (15).
Otherwise, the disks in the disk pack may break.
21 Detach output flange (8) or connecting flange (22) from power output shaft (17).
22 Screw in screws (13, 14). IMPORTANT Replace screws (13, 14).
    TORQUE SPECIFICATION Screw/bolt, torque converter housing/adapter housing to transmission housing *BA27.10-P-1002-04H
    TORQUE SPECIFICATION Screw/bolt, transmission housing to torque converter housing/adapter housing *BA27.10-P-1004-04H
23 Drive deep-groove ball bearing (10) into transmission housing (1) using a suitable drift and install retaining ring (18). IMPORTANT Make sure that the retaining ring (18) does not cover up the oil return hole (24).
24 Install radial shaft sealing ring (9). Transmission 725.0 (except 725.007/017/037/047) in model 463 as of model year 2019 AR27.40-P-0206XGA
    Transmission 725.0 (except 725.007/017/037/047) in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0206S
    Transmission 725.0 (except 725.007/017/047) in model 257, 290 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205MSA
    Transmission 725.0 (except 725.007/017/047) in model 172 with engine 274
Transmission 725.0 (except 725.007/017/047) in model 172 with engine 276
Transmission 725.0 (except 725.007/017/047) in model 172 with engine 651
Transmission 725.0 (except 725.007/017/047) in model 231 with engine 276
Transmission 725.0 (except 725.007/017/047) in model 231 with engine 278		 AR27.40-P-0205RK
    Transmission 725.0 (except 725.017/047) in model 205, 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205LW
    Transmission 725.0 (except 725.007/017/047) in model 207, 212, 218 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205EWM
    Transmission 725.0 (except 725.007/017/047) in model 166.006 AR27.40-P-0205GN
    Transmission 725.0 (except 725.017) in model 217, 222 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205LFH
    Transmission 725.0 (except 725.007/017/047) in model 213, 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0205OLC
    Transmission 725.0 (except 725.007/017/047) in model 166 (except 166.006), 292 AR27.40-P-0206GQ
    Transmission 725.0 (except 725.007/017/047) in model 205, 213, 217, 218, 222, 238, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0206EWM
    Transmission 725.0 (except 725.007/017/047) in model 290 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0206MNI
    Transmission 725.0 (except 725.007/017/047) in model 257 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 (except 725.007/017/047) in model 257 with engine 264 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR27.40-P-0206MSA
    Transmission 725.0 (except 725.007/017/047) in model 257 with engine 656 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR27.40-P-0206OIB
    Transmission 725.0 (except 725.007/017/037/047) in model 167 with engine 654.9
Transmission 725.0 (except 725.007/017/047) in model 167 with engine 656		 AR27.40-P-0206OID
    Transmission 725.0 (except 725.007/017/037/047) in model 167 with engine 176, 177
Transmission 725.0 (except 725.007/017/047) in model 167 (except 167.148) with engine 264
Transmission 725.0 (except 725.007/017/047) in model 167 with engine 256.9		 AR27.40-P-0206MSC
    Transmission 725.0 (except 725.007/017/047) in model 167.148 with engine 264 AR27.40-P-0205MRK
25 Install connecting flange (22) and attach collar nut (23). Transmission 725.0 (except 725.007/017/037/047) in model 166, 167, 292
IMPORTANT Replace collar nut (23).
    TORQUE SPECIFICATION Collar nut, output flange to output shaft *BA27.10-P-1012-04H
26 Place intermediate housing (21) onto transmission housing (1) and screw in screws (19). Transmission 725.0 (except 725.007/017/037/047) in model 166, 167, 292
IMPORTANT Ensure that the dowel pins in the intermediate housing (21) are seated correctly.
IMPORTANT Replace screws/bolts (19).
    TORQUE SPECIFICATION Bolt, intermediate housing to transmission housing *BA27.10-P-1027-04H
27.1 Install output flange (8). Transmission 725.0 (except 725.007/017/047) in model 172, 231
Transmission 725.0 (except 725.007/017/047) in model 205, 207, 212, 213, 217, 218, 222, 238, 253, 257, 290 except code M005 (Vehicles with 4MATIC/all-wheel drive)
      AR27.50-P-0620-02W
    TORQUE SPECIFICATION Collar nut, output flange to output shaft *BA27.10-P-1012-04H
    SPECIAL TOOL Socket wrench bit Fig 13
    SPECIAL TOOL Pin wrench Fig 4
27.2 Attach transfer case. Transmission 725.0 (except 725.007/017/037/047) in model 167 (except 167.148), 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 (except 725.007/017/047) in model 166 (except 166.006), 292
Transmission 725.0 (except 725.007/017/047) in model 463 as of model year 2019
    Transmission 725.0 (except 725.007/017/047) in model 167 with engine 176, 177, 256.9 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MSC
    Transmission 725.0 (except 725.007/017/037/047) in model 167 (except 167.148) with engine 264 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MRK
    Transmission 725.0 (except 725.007/017/037/047) in model 167 with engine 654.9, 656 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100OID
    Transmission 725.0 (except 725.007/017/047) in model 213 (except 213.088/089/288/289), 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100OLC
    Transmission 725.0 (except 725.007/017/047) in model 166 (except 166.006), 292 AR28.10-P-0100GQ
    Transmission 725.0 (except 725.007/017/047) in model 213.088/089/288/289 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MNE
    Transmission 725.0 (except 725.017/047/09) in model 205, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100LWX
    Transmission 725.0 (except 725.017/09) in model 217, 218, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100AVG
    Transmission 725.09 in model 217, 222 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MNM
    Transmission 725.09 in model 253 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MNG
    Transmission 725.09 in model 290 with engine 177.9 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100MNI
    Transmission 725.0 (except 725.007/017/047) in model 257 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 (except 725.007/017/047) in model 257 with engine 264 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 (except 725.007/017/047) in model 290 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR28.10-P-0100MSA
    Transmission 725.0 (except 725.007/017/047) in model 257 with engine 656 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100OIB
    Transmission 725.0 (except 725.007/017/047) in model 463 with engine 176 as of model year 2019
Transmission 725.0 (except 725.007/017/047) in model 463 with engine 177 as of model year 2019		 AR28.10-P-0100XGA
    Transmission 725.0 (except 725.007/017/047) in model 463 with engine 656 as of model year 2019 AR28.10-P-0100XGE
    Transmission 725.0 (except 725.007/017/047) in model 463 with engine 264 as of model year 2019 AR28.10-P-0100XGF
    Transmission 725.0 (except 725.007/017/037/047) in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR28.10-P-0100S
27.3 Install adapter housing (25). Transmission 725.0 (except 725.007/017/047) in model 166.006, 167.148
TORQUE SPECIFICATION Bolt, adapter housing to intermediate housing
      *BA27.10-P-1028-04H
28 Attach rear engine mount holder (7). Transmission 725.0 (except 725.007/017/02/04/05/09) in model 172, 205, 207, 212, 213, 217, 218, 222, 231, 238, 253, 257
    IMPORTANT Replace bolts.
    TORQUE SPECIFICATION Screw/bolt, rear bracket to transmission *BA27.10-P-1011-04H
29 Check plain couplers (4), sealing rings and sealing lips for damage. If damage occurs,
↓
Replace plain couplers (4), sealing rings and sealing lips.
30 Install plain couplers (4) and screw in screw (5). IMPORTANT Check oil guide pipes (4) are correctly seated.
    TORQUE SPECIFICATION Screw/bolt, oil guide pipe to transmission housing *BA27.10-P-1013-04H
31 Install park pawl actuator (6).   AR27.60-P-0956EWM
32 Detach transmission from assembly stand.
REFER TO SPECIAL TOOLS 000 588 00 31 00 Assembly stand for cars   WS01.00-Z-3028KOB
    IMPORTANTCommercially available devices/tools
Workshop crane
    SPECIAL TOOL Support fixture Fig 2
    SPECIAL TOOL Lifting device Fig 5
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1002-04H Screw/bolt, torque converter housing/adapter housing to transmission housing M8 Stage 1 Nm 10
Stage 2 ∠° 90
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1004-04H Screw/bolt, transmission housing to torque converter housing/adapter housing M8 Stage 1 Nm 10
Stage 2 ∠° 90
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1011-04H Screw/bolt, rear bracket to transmission Stage 1 Nm 10
Stage 2 ∠° 90
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1012-04H Collar nut, output flange to output shaft Nm 200
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1013-04H Screw/bolt, oil guide pipe to transmission housing Nm 4
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1027-04H Bolt, intermediate housing to transmission housing M8 Stage 1 Nm 10
Stage 2 ∠° 90
M10 Stage 1 Nm 30
Stage 2 ∠° 90
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1028-04H Bolt, adapter housing to intermediate housing Nm 47
Fig 2: Identifying Support Fixture (725 589 00 40 00)
G12935452Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Device (725 589 00 31 00)
G11971973Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Pin Wrench (129 589 01 07 00)
G12935521Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Lifting Device (724 589 02 63 00)
G12935451Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Puller, Two-Arm (000 589 88 33 00)
G11972003Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Parallel Support (168 589 03 21 00)
G12817080Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Support Plate (722 589 00 31 00)
G11972008Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Drift (722 589 06 15 00)
G07707830Courtesy of MERCEDES-BENZ USA
Fig 10: Identifying Valve Lifter (442 589 00 31 00)
G11972000Courtesy of MERCEDES-BENZ USA
Fig 11: Identifying Collet Chuck (140 589 06 34 00)
G11971991Courtesy of MERCEDES-BENZ USA
Fig 12: Identifying Puller (001 589 50 33 00)
G12935579Courtesy of MERCEDES-BENZ USA
Fig 13: Identifying Socket Wrench Bit (126 589 02 09 00)
G11972006Courtesy of MERCEDES-BENZ USA
Fig 14: Identifying Sleeve (725 589 02 14 00)
G13657188Courtesy of MERCEDES-BENZ USA
scientia non olet · About LEMON Manuals
