Remove/Install Multidisk Brake B05 And Multidisk Brake B06 - AR27.50-P-0616EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0/1

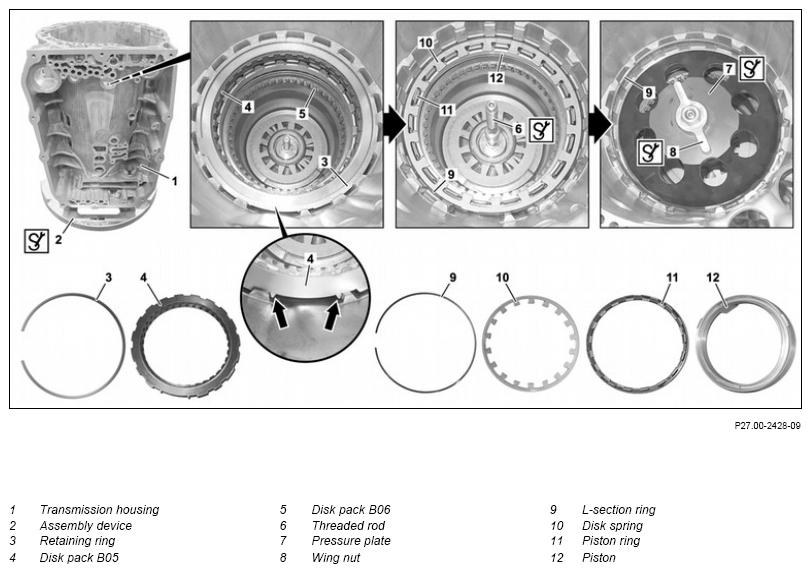

G14546822Courtesy of MERCEDES-BENZ USA

Shown on transmission 725.0

Shown for transmission 725.0

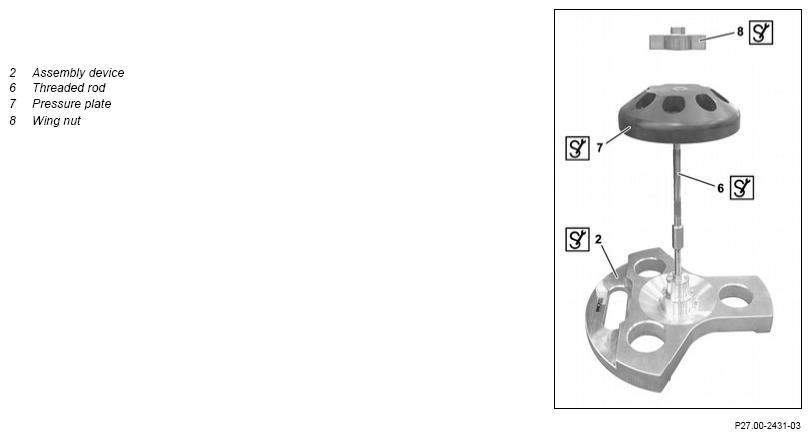

G14546823Courtesy of MERCEDES-BENZ USA

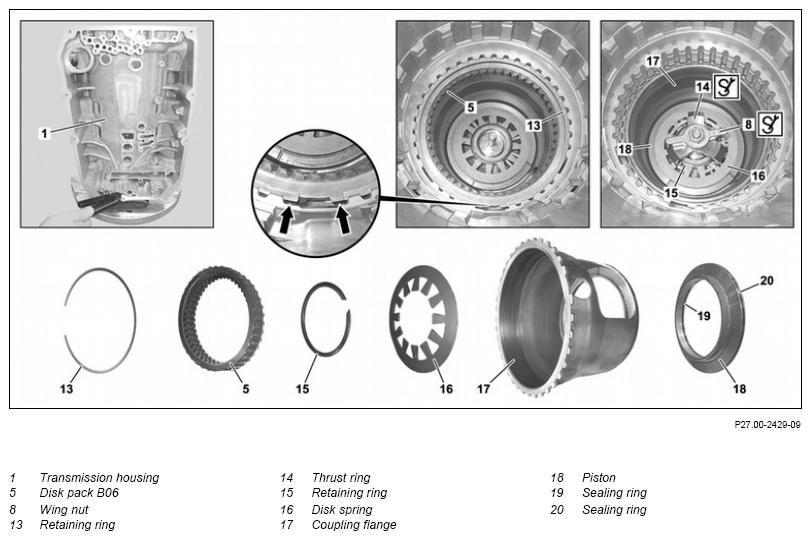

G14546824Courtesy of MERCEDES-BENZ USA

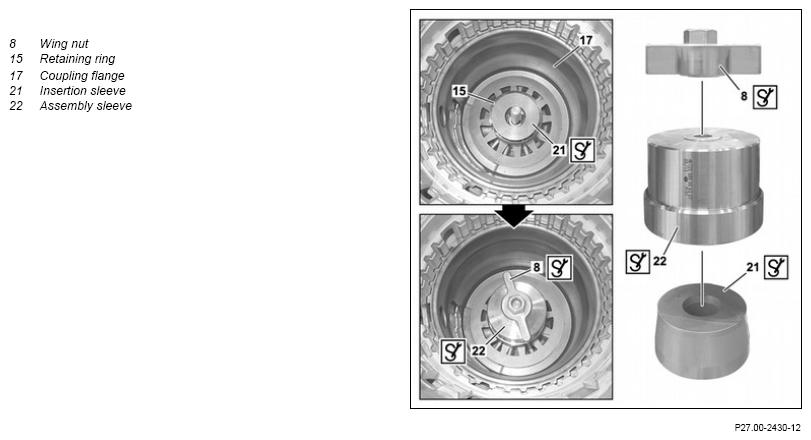

G14546825Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
Notice Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1.1 Remove transmission housing (1) from torque converter housing. Transmission 725.0 (except 725.007/017/037/047), 725.103
      AR27.50-P-0601EWM
1.2 Remove transmission housing (1) from adapter housing. Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW
variant (incl. plug-in))
Transmission 725.037/047
Transmission 725.1 (except 725.103)
    Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW
variant (incl. plug-in))
Transmission 725.037/047		 AR27.40-P-0560MRD
    Transmission 725.1 (except 725.103) AR27.40-P-0560EWO
2 Place transmission housing (1) on assembly device (2). SPECIAL TOOL Assembly tool Fig 8
3 Remove retaining ring (3).
4 Remove clutch pack B05 (4).
5.1 Attach threaded rod (6), pressure disk (7) and wing nut (8). Transmission 725.0
    SPECIAL TOOL Assembly tool Fig 8
5.2 Attach threaded rod (6), thrust piece and wing nut (8). Transmission 725.1
    SPECIAL TOOL Thrust piece Fig 2
    SPECIAL TOOL Assembly tool Fig 8
6 Tighten wing nut (8) until the L-section ring (9) is exposed and remove L-section ring (9). SPECIAL TOOL Assembly tool Fig 8
7 Remove disk spring (10).
8 Remove piston (12).
9 Remove piston ring (11) from piston (12).
10 Remove retaining ring (13).
11 Remove clutch pack B06 (5).
12 Detach threaded rod (6) and attach thrust ring (14) with wing nut (8). SPECIAL TOOL Assembly tool Fig 8
13 Tighten wing nut (8) until the retaining ring (15) is exposed and remove retaining ring (15). SPECIAL TOOL Pliers Fig 6
    SPECIAL TOOL Assembly tool Fig 8
14 Remove disk spring (16).
15 Remove coupling flange (17).
16 Apply some compressed air through center bore at transmission housing (1); while doing so, seal remaining bores and remove piston (18). IMPORTANT Wear safety glasses.
17 Remove sealing rings (19, 20) from piston (18).
INSTALLING Install
18 Oil new sealing rings (19, 20) lightly and mount on piston (18).
REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluids (ATF) (specification 236.17)   BB00.40-P-0236-17A
19 Insert piston (18).
20 Check coupling flange (17) for damage and replace, if necessary.
21 Insert coupling flange (17) into transmission housing (1). IMPORTANT Ensure correct installation position. The lugs (arrows) or cutouts must face forwards.
22 Insert disk spring (16) into transmission housing (1). IMPORTANT Ensure correct installation position.
23 Insert assembly sleeve (21) and place retaining ring (15) around assembly sleeve (21). SPECIAL TOOL With large diameter.
Assembly tool		 Fig 4
    SPECIAL TOOL With small diameter.
Assembly tool		 Fig 8
24 Mount assembly sleeve (22) onto assembly sleeve (21). SPECIAL TOOL With large diameter.
Assembly tool		 Fig 4
    SPECIAL TOOL With small diameter.
Assembly tool		 Fig 8
25 Tighten wing nut (8) over assembly sleeve (22) until the retaining ring (15) engages. IMPORTANT Check for correct seating and installation position. The cutout must face forward.
    SPECIAL TOOL With large diameter.
Assembly tool		 Fig 4
    SPECIAL TOOL With small diameter.
Assembly tool		 Fig 8
26 Remove wing nut (8), assembly sleeve (21) and assembly sleeve (22). SPECIAL TOOL With large diameter.
Assembly tool		 Fig 4
    SPECIAL TOOL With small diameter.
Assembly tool		 Fig 8
MEASURING Measure
27 Measure clearance of clutch pack B06 (5) and adjust.   AR27.51-P-7230-01EWM
    Clearance in multidisk brake B06 *BE27.51-P-1002-01E
    SPECIAL TOOL Assembly tool Fig 8
    SPECIAL TOOL Pressure cylinder Fig 7
    SPECIAL TOOL Pressing tool Fig 5
    SPECIAL TOOL Pressing tool Fig 3
    SPECIAL TOOL Parallel support Fig 9
    SPECIAL TOOL Parallel rest Fig 1
28 Insert clutch pack B06 (5) into transmission housing (1). IMPORTANT Make sure that it is installed at the correct position. The lugs (arrows) must always face forward.
29 Insert retaining ring (13) into transmission housing (1).
30 Check piston ring (11) for damage and replace, if necessary.
31 Insert piston ring (11) into piston (12).
32 Insert piston (12) into transmission housing (1). IMPORTANT Make sure that it is installed at the correct position. The hole on the piston (12) must line up with the hole on the transmission housing (1).
33 Insert disk spring (10) into transmission housing (1). IMPORTANT Pay attention to installation position.
34.1 Attach threaded rod (6), pressure disk (7) and wing nut (8). Transmission 725.0
IMPORTANT The cutout of the thrust ring (14) must line up with the cutout of the retaining ring (15).
    SPECIAL TOOL Assembly tool Fig 8
34.2 Attach threaded rod (6), thrust piece and wing nut (8). Transmission 725.1
IMPORTANT The cutout of the thrust ring (14) must line up with the cutout of the retaining ring (15).
    SPECIAL TOOL Thrust piece Fig 2
    SPECIAL TOOL Assembly tool Fig 8
35 Tighten wing nut (8) and insert L-section ring (9) into transmission housing (1). IMPORTANT Ensure correct seating.
    SPECIAL TOOL Assembly tool Fig 8
MEASURING Measure
36 Measure clearance of clutch pack B05 (4) and adjust.   AR27.51-P-7230-01EWM
    Clearance in multidisk brake B05 *BE27.51-P-1001-01E
    SPECIAL TOOL Pressure cylinder Fig 7
    SPECIAL TOOL Pressing tool Fig 5
    SPECIAL TOOL Pressing tool Fig 3
    SPECIAL TOOL Parallel support Fig 9
    SPECIAL TOOL Parallel rest Fig 1
37.1 Detach threaded rod (6), pressure disk (7) and wing nut (8). Transmission 725.0
    SPECIAL TOOL Assembly tool Fig 8
37.2 Detach threaded rod (6), thrust piece and wing nut (8). Transmission 725.1
    SPECIAL TOOL Thrust piece Fig 2
    SPECIAL TOOL Assembly tool Fig 8
38 Insert clutch pack B05 (4). IMPORTANT Make sure that it is installed at the correct position. The lugs (arrows) must always face forwards.
39 Insert retaining ring (3).
40 Take transmission housing (1) out of assembly device (2). SPECIAL TOOL Assembly tool Fig 8
41.1 Attach transmission housing (1) to torque converter housing. Transmission 725.0 (except 725.007/017/037/047), 725.103 AR27.50-P-0601EWM
41.2 Attach transmission housing (1) to adapter housing. Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW
variant (incl. plug-in))
Transmission 725.037/047
Transmission 725.1 (except 725.103)
    Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW
variant (incl. plug-in))
Transmission 725.037/047		 AR27.40-P-0560MRD
    Transmission 725.1 (except 725.103) AR27.40-P-0560EWO
ADJUSTMENT VALUES FOR MULTIDISK CLUTCH/MULTIDISK BRAKE

Number Designation Transmission 725.0/1
BE27.51-P-1001-01E Clearance in multidisk brake B05 Contact force for clearance adjustment F1 N 500
Number of internal plates 2 mm 1, 7...1, 9
3 mm 2, 0...2, 2
4 mm 2, 3...2, 5
ADJUSTMENT VALUES FOR MULTIDISK CLUTCH/MULTIDISK BRAKE

Number Designation Transmission 725.0/1
BE27.51-P-1002-01E Clearance in multidisk brake B06 Contact force for clearance adjustment F1 N 500
Number of internal plates 3 mm 1, 6...1, 8
4 mm 1, 8...2, 0
5 mm 2, 1...2, 3
Fig 1: Identifying Parallel Rest (126 589 04 31 00)
G11972020Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Thrust Piece (725 589 02 34 00)
G13657258Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Pressing Tool (208 589 00 21 00)
G11972021Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Assembly Tool (725 589 01 63 00)
G13657260Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Pressing Tool (722 589 01 31 00)
G11972012Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Pliers (000 589 52 37 00)
G11972023Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Pressure Cylinder (725 589 03 31 00)
G11972014Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Assembly Tool (725 589 00 63 00)
G12935639Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Parallel Support (168 589 03 21 00)
G12817080Courtesy of MERCEDES-BENZ USA
