Remove/Install Radial Shaft Sealing Ring At Output Side - AR27.40-P-0206EWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0 in model 205, 213, 217, 218, 222, 238, 253
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.1 in model 213, 238
with code M005 (Vehicles with 4MATIC/all-wheel drive)

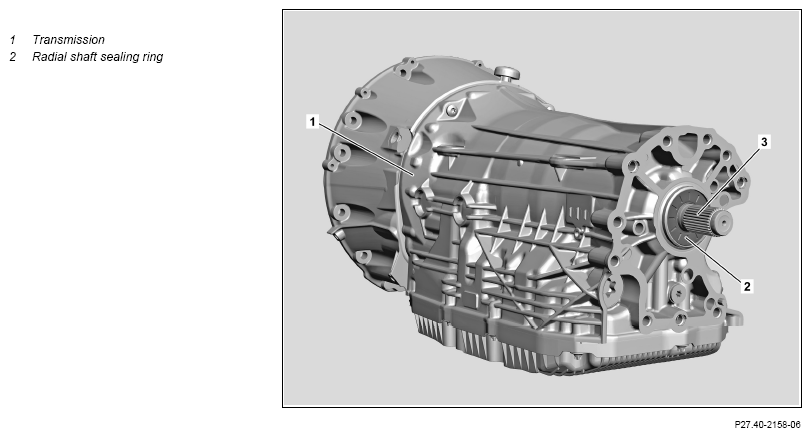

Fig 1: Radial Shaft Sealing Ring At Output Side Components Location - Transmission 725.0 In Model 253 With Code M005
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||
| 1 | Remove transfer case | Transmission 725.0 in model 213.088/089/288/289 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100MNE |
| Transmission 725.0 (except 725.09) in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 218 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR28.10-P-0100AVG | ||
| Transmission 725.0 in model 213 (except 213.088/089/288/289), 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AR28.10-P-0100OLC | ||
| Transmission 725.0 (except 725.09) in model 205, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100LWX | ||
| Transmission 725.09 in model 217, 222 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100MNM | ||
| Transmission 725.09 in model 253 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100MNG | ||
| Transmission 725.1 in model 213, 238 with engine 654.8 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100OIH | ||
| 2 | Use suitable tool to pry radial shaft sealing ring (2) out of transmission (1) | Do not damage the transmission (1). Otherwise leakage may occur. |
|
| 3 | Check seating of radial shaft sealing ring (2) for damage | In the case of complaints. ↓ Replace transmission housing. |
|
| Install | |||
| 4 | Coat new radial shaft sealing ring (2) with transmission oil | ||
| Automatic transmission fluids (ATF) (specification 236.17) | BB00.40-P-0236-17A | ||
| 5 | Press new radial shaft sealing ring (2) using drift far enough into transmission (1) until the drift makes contact with the transmission housing | Fig 2 | |
| 6 | Install transfer case | Transmission 725.0 in model 213.088/089/288/289 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100MNE |
| Transmission 725.0 (except 725.09) in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 218 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100AVG | ||
| Transmission 725.0 in model 213 (except 213.088/089/288/289), 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100OLC | ||
| Transmission 725.0 (except 725.09) in model 205, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100LWX | ||
| Transmission 725.09 in model 217, 222 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100MNM | ||
| Transmission 725.09 in model 253 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100MNG | ||
| Transmission 725.1 in model 213, 238 with engine 654.8 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100OIH | ||
| 7 | Check and correct oil level on transmission (1) | Transmission 725.0 (except 725.007/017/047) in model 213 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 (except 725.017) in mode 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 (except 725.017/047) in model 205 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 (except 725.047) in mode 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 217, 218, 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.1 in model 213, 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.00-P-0270EWN |
| Transmission 725.047 in model 205, 213, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AR27.00-P-0270EWH | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Conduct engine test run, and check transmission (1) for leak tightness and proper operation | ||
