Detach/Attach Electric Machine On Transmission - AR08.10-P-0002OLG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205 with transmission 725.017/047 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))

Model 253 with transmission 725.047 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))

MODIFICATION NOTES

08.02.2022 Special tool 001 589 05 91 00 added. Operation step 11
08.02.2022 Remove cover cap from transmission (2). Operation step 12
08.02.2022 Disconnect diagnostic system. Operation step 29

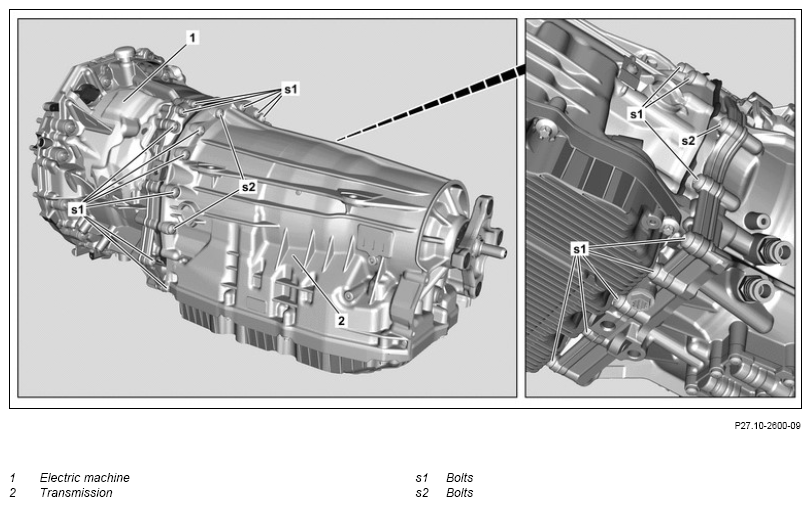

Fig 1: Electric Machine On Transmission Components Location - Model 253 With Transmission 725.047 With Code ME05
G14474296DANGERREMOVINGREFER TO SPECIAL TOOLSIMPORTANTSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLNOTESIMPORTANTSPECIAL TOOLIMPORTANTSPECIAL TOOLINSTALLINGIMPORTANTIMPORTANTSPECIAL TOOLNOTESIMPORTANTIMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONREFER TO SELF-DIAGNOSTIC SYSTEMSREFER TO SELF-DIAGNOSTIC SYSTEMSCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
Notice  General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment   AH00.00-Z-0300-01A
Notice  Notes on threaded connections with aluminum screws/bolts   AH00.00-P-0006-01RM
Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on electric machine Model 205.013/053/213/253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 253.311/353/911/953 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AH08.10-P-0001-01MRD
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1 Remove transmission (2) with electric machine (1). Model 205.013/213 with engine 654 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLI
    Model 205.053/253 with engine 274.9 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLJ
    Model 205.054 with engine 274.9 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLK
    Model 253.311/911 with engine 654 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLG
    Model 253.353/953 with engine 274.9 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLH
2 Clean transmission (2) in area of oil pan and connection to electric machine (1). Assembly cleaner *BR00.45-Z-1028-04A
3 Fasten transmission (2) to assembly device.   AR27.10-P-0600-01MRD
REFER TO SPECIAL TOOLS 000 588 00 31 00 Assembly stand for cars   WS01.00-Z-3028KOB
    IMPORTANT Commercially available devices/tools
    Boom crane
    SPECIAL TOOL Assembly device Fig 3
    SPECIAL TOOL Lifting device Fig 2
    SPECIAL TOOL Adapter Fig 6
4 Remove fully integrated transmission control controller unit (Y3/8).   AR27.19-P-0200EWM
5 Turn transmission (2) with electric machine (1) downward.
6 Remove screws (s1).
7 Loosen screws (s2). NOTES
Never remove screws/bolts (s2).
The electric machine (1) will otherwise be damaged due to falling down.
8 Turn transmission (2) with electric machine (1) upward.
9 Attach lifting device to electric machine (1) and fasten to boom crane. IMPORTANT Commercially available devices/tools
Boom crane
    SPECIAL TOOL Lifting device Fig 5
10 Remove screws (s2).
11 Remove electric machine (1) from transmission (2) and cover transmission (2) IMPORTANT Oil flows around electric machine (1).
  with cover cap. SPECIAL TOOL Protective cap Fig 4
INSTALLING Install
12 Remove cover cap from transmission (2).
13 Clean sealing surfaces at transmission (2) and electric machine (1). Assembly cleaner *BR00.45-Z-1028-04A
14 Mount seal on transmission (2). IMPORTANT Replace seal.
15 Position spacers on sealing surface. IMPORTANT Spacers are part of lifting device.
SPECIAL TOOL Lifting device		 Fig 5
16 Position electric machine (1) horizontally over transmission (2). NOTES
Position electric machine (1) horizontally. Damage will otherwise occur during merging.
17 Lower electric machine (1) onto transmission (2) until it lies on the spacers. IMPORTANT If necessary, turn rotor of electric machine (1) multiple times until electric machine (1) and transmission (2) slip into each other.
IMPORTANT Helper required.
18 Lift electric machine (1) very slightly and remove spacers.
19 Fully lower electric machine (1) onto transmission (2).
20 Tighten screws (s2). TORQUE SPECIFICATION Screw, adapter housing to torque converter housing/drive unit housing *BA27.10-P-1022-04H
21 Release lifting device from boom crane and remove from electric machine (1).
22 Turn transmission (2) with electric machine (1) downward.
23 Tighten screws (s1). TORQUE SPECIFICATION Screw, adapter housing to torque converter housing/drive unit housing *BA27.10-P-1022-04H
24 Install fully integrated transmission control controller unit (Y3/8).   AR27.19-P-0200EWM
25 Remove transmission (2) from assembly device.
26 Install transmission (2) with electric machine (1). Model 205.013/213 with engine 654 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLI
    Model 205.053/253 with engine 274.9 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLJ
    Model 205.054 with engine 274.9 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLK
    Model 253.311/911 with engine 654 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLG
    Model 253.353/953 with engine 274.9 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))		 AR27.10-P-0005OLH
27 Connect diagnostic system, read out fault memory and clear if necessary.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
28 Perform adaptation of electric machine rotor position sensor (L20) in power electronics control unit (N129/1). When replacing the electric machine (1).
29 Disconnect diagnostic system.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1022-04H Screw, adapter housing to torque converter housing/drive unit housing M6   Nm 8
M8 Stage 1 Nm 10
  Stage 2   90
Fig 2: Identifying Lifting Device (724 589 02 63 00)
G12935451Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Assembly Device (724 589 04 40 00)
G12618363Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Protective Cap (001 589 05 91 00)
G12082486Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Lifting Device (725 589 01 59 00)
G14474300Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Adapter (725 589 04 31 00)
G13745550Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
